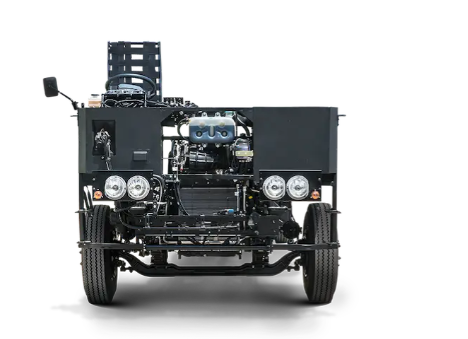

Eicher Starline 2070 E Diesel – Staff Bus
Specifications
|
Specification |
Details |
|
Bus Model |
Starline 2070 E |
|
Wheelbase |
3515 mm |
|
Overall Length |
6534 mm |
|
Overall Width |
1990 mm |
|
Overall Height |
2480 mm |
|
Ground Clearance |
187 mm |
|
Front Overhang |
1024 mm |
|
Rear Overhang |
1995 mm |
|
Turning Circle Diameter |
13.1 m |
|
Engine Make |
E474 |
|
Displacement |
2960 cc |
|
Power |
90 kW @ 3200 r/min |
|
Torque |
350 Nm @ 1200-2500 r/min |
|
Fuel Type |
Diesel |
|
Max. GVW |
7.5 t |
|
Application |
Staff Buses |

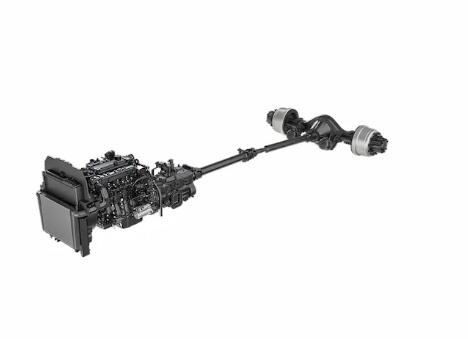

Frame & Drivetrain
|
Specification |
Details |
|
Chassis Type |
Domex 650 |
|
Chassis Dimension |
200 x 75 x 5 mm |
|
Clutch |
310 mm |
|
Transmission Make |
ET35S5 |
|
Transmission Type |
Synchromesh (5 Speed + 1 Reverse) |
|
Fuel Tank Capacity |
100 litres |
|
DEF Tank Capacity |
19 litres |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Semi Elliptic |
|
Brakes |
Dual Circuit 'S' Cam Full Air Brakes |
|
Steering |
Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
7.50 x 16 - 16 PR |
Components & Features
|
Feature |
Details |
|
Feature: Fuel Efficiency |
Fuel Coaching |
|
Feature: Engine Performance |
MBooster+ |
|
Feature: Driving Control |
Cruise Control |
|
Feature: Telematics |
Eicher Live Telematics System |
|
Feature: Safety |
Seat Belts |
|
Feature: Safety |
Emergency Exit |
|
Feature: Comfort |
Air Conditioning (AC) Unit |
