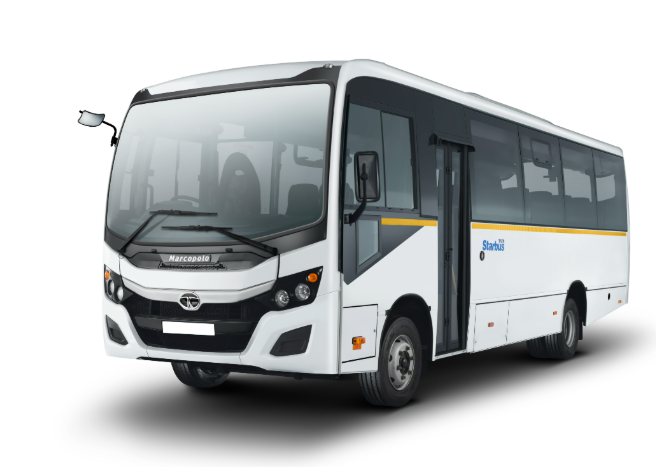

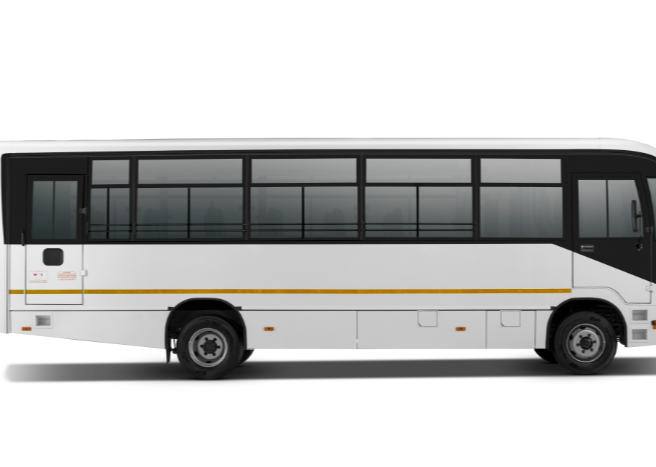

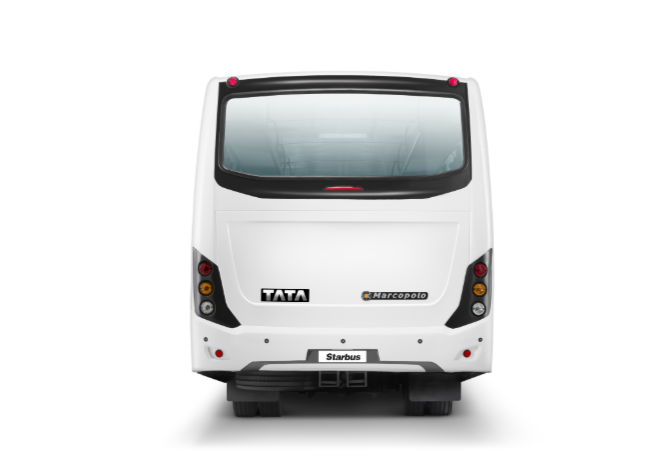

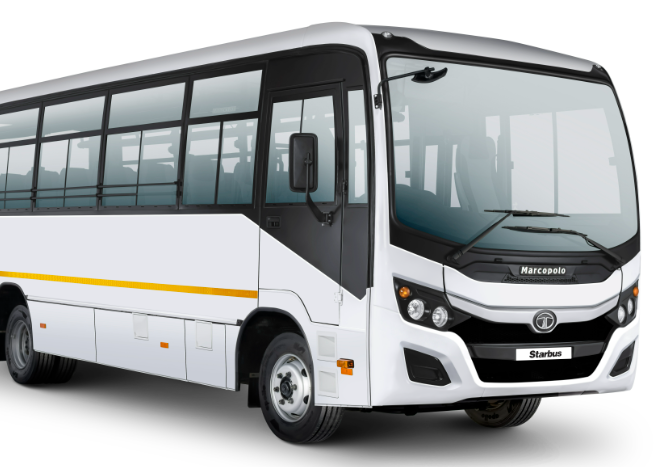

STARBUS Prime 32_D AC LP716_45 – Tata Motors Bus
Specifications
|
Specification |
Details |
|
Bus Model |
LP 716/45 |
|
Wheelbase |
4500 mm |
|
Engine |
3.3 LTR |
|
Power |
117 kW @ 2600 RPM |
|
Torque |
475 Nm @ 1600-2000 rpm |
|
Clutch Diameter |
330 mm |
|
Transmission |
G 550 6 Speed Cable Shift |
|
Brakes |
Air Brakes |
|
Suspension |
Parabolic Suspension |
|
Steering |
Power-Steering, Tilt - Telescope |
|
Battery |
12 V / 24 V, 120 Ah |
|
Alternator |
120 A / 150 A |
|
Tyres |
225/75 R17.5 |
|
Fuel Tank Capacity |
120 litres (Plastic) |
|
Fuel Tank Material |
Plastic |
|
DEF Tank Capacity |
18/25 litres |
|
Max. GVW |
8500 kg |
|
Seating Capacity |
SKL: 40 / 46 & 53, STD: 32 & 34; 40-68 |
|
Length |
8630 mm |
|
Rear Overhang |
2700 mm |
|
Front Overhang |
1430 mm |
|
Overall Height |
2910/3120 mm |
|
Max. Width |
2340/2550 mm |
|
TCD |
17.5 m |
|
Ground Clearance |
180 mm |
|
AC / Non-AC Option |
Both |
|
Fuel Type |
CNG |
|
Application |
Staff & Contract Buses |
Components & Features
|
Specification |
Details |
|
Warranty Feature |
4 Years/4 Lakh kms Warranty |
|
Bus Body Warranty Feature |
3 Years/3 Lakh kms Bus Body Warranty |
|
Body Width Feature |
Multiple Body Width Option 2200 MM / 2340 MM & 2550 MM |
|
Engine Feature |
Fuel efficient 3.8 SGI Engine with Balanced power & Torque |
|
Cooling Feature |
E Viscous Fan |
|
Tyre Feature |
Low CRR Radial Tubeless & Tubetype Tyre |
|
Telematics Feature |
4G Telematic Solution with FOTA |
|
Steering Feature |
Modular steering wheel with Cruise Control |
|
Fuel System Feature |
Integrated fuel filling system for Fast & Slow filling |
|
Safety Feature |
Fire detection and alarm system; Exceeds CMVR, AIS 052, AIS 063, AIS 153 standards; Advanced braking systems; Impact-resistant materials; Strategic emergency exits |
|
Efficiency Feature |
Multi Mode Fuel Economy Switch |
|
Stability Feature |
Electronic Stability Control with Hill Start Assist |
|
Driver Comfort Feature |
Driver suspended Seats |
|
Transmission Feature |
Torque Based Gear Shift Advisor |
|
Wheel Bearing Feature |
Unitised Wheel Bearing |
|
Seating Feature |
Wider seats, armrests, mobile chargers, added leg space, reclining seats |
|
Suspension Feature |
Improved suspension |
|
NVH Feature |
Reduced Noise, Vibration & Harshness |
|
Body Design Feature |
Superior bus body design in collaboration with ACGL, prioritizing structural integrity and aesthetics |
|
Service Interval Feature |
40,000 km |
|
Benefit: Safety |
Sturdy build quality for passenger & driver safety |
|
Benefit: Performance |
More reliable, better performance, more profits to customers |
|
Benefit: Capacity |
Increased number of seats and seat width for seating comfort |
|
Benefit: Efficiency |
More trips with highest fuel economy |
|
Benefit: Aesthetics |
Refreshed look, end customer preference |
|
Benefit: Passenger Comfort |
Increased comfort and convenience to passengers |
|
Benefit: Resale Value |
Better resale value |
|
Benefit: NVH |
Low noise, vibration & harshness |
|
Benefit: Maintenance |
Low maintenance with value-added service options |
|
Benefit: Customer Support |
24x7 customer care and roadside assistance |
|
Benefit: Spare Parts |
Spare part availability across the country |
