Standard DI-460 4X4 – Agricultural Tractor by Standard Corporation India Limited
Specifications
|
Specification |
Details |
|
Tractor Model |
DI-460 4X4 |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
4 Cylinder, Water Cooled, Diesel |
|
Engine Power |
60 HP |
|
PTO Power |
55.02 HP |
|
Number of Cylinders |
Four |
|
Bore/Stroke |
105/118 mm |
|
Engine Capacity |
4085 CC |
|
Rated RPM |
2100 RPM |
|
Clutch |
Dual Clutch |
|
Transmission Type |
5-Speed Centre Gear |
|
Number of Gears |
10 Forward + 2 Reverse |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Oil Immersed Brakes (OIB) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
11.2 x 24 inches |
|
Rear Tyres |
16.9 x 28 inches |
Components & Features
|
Specification |
Details |
|
Maximum Lifting Capacity |
1800 kg |
|
Hydraulics Type |
Engine Drive Gear Pump, No Spool Valve |
|
Power Take Off |
Multi, 55.02 HP |
|
Fuel Tank Capacity |
63 L |
|
Engine Oil Capacity |
12.5 L |
|
Cooling System Capacity |
12 L |
|
Transmission Oil Capacity |
47 L |
|
Additional Features |

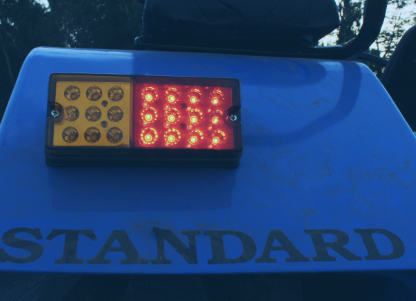

LED Headlights, LED Indicator, Distributor, Differential Lock |
|
Steering Type |
Power Steering |
|
Overall Length |
3765 mm |
|
Overall Width |
1935 mm |
|
Height |
2300 mm (Upto Exhaust) |
|
Ground Clearance |
450 mm |
|
Front Axle Model |
HEMA |
|
Ratio |
13.86:1 |
|
Steering Angle |
52° |
|
Peak Torque |
20000 Nm |
