Standard DI-335 – Agricultural Tractor by Standard Corporation India Limited
Specifications
|
Specification |
Details |
|
Tractor Model |
DI-335 |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
3 Cylinder, Water Cooled, Diesel |
|
Engine Power |
35 HP |
|
PTO Power |
31 HP |
|
Number of Cylinders |
Three |
|
Bore/Stroke |
105/118 mm |
|
Engine Capacity |
3066 CC |
|
Rated RPM |
2200 RPM |
|
Clutch |
Single Clutch |
|
Transmission Type |
5-Speed Centre Gear |
|
Number of Gears |
10 Forward + 2 Reverse |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Dry Disc |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
6.00 x 16 inches |
|
Rear Tyres |
13.6 x 28 inches |
Components & Features
|
Specification |
Details |
|
Maximum Lifting Capacity |
1800 kg |
|
Hydraulics Type |
Engine Drive Gear Pump, Single Spool Valve |
|
Power Take Off |
Single, 31 HP |
|
Total Weight |
2096 kg |
|
Fuel Tank Capacity |
63 L |
|
Engine Oil Capacity |
8 L |
|
Cooling System Capacity |
9.33 L |
|
Transmission Oil Capacity |
47 L |
|
Additional Features |

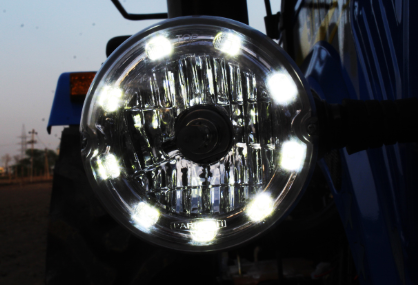

LED Headlights, LED Indicator, Distributor, No Differential Lock |
|
Steering Type |
Power Steering |
|
Overall Length |
3600 mm |
|
Overall Width |
1675 mm |
|
Height |
2185 mm (Upto Exhaust) |
|
Ground Clearance |
330 mm |
