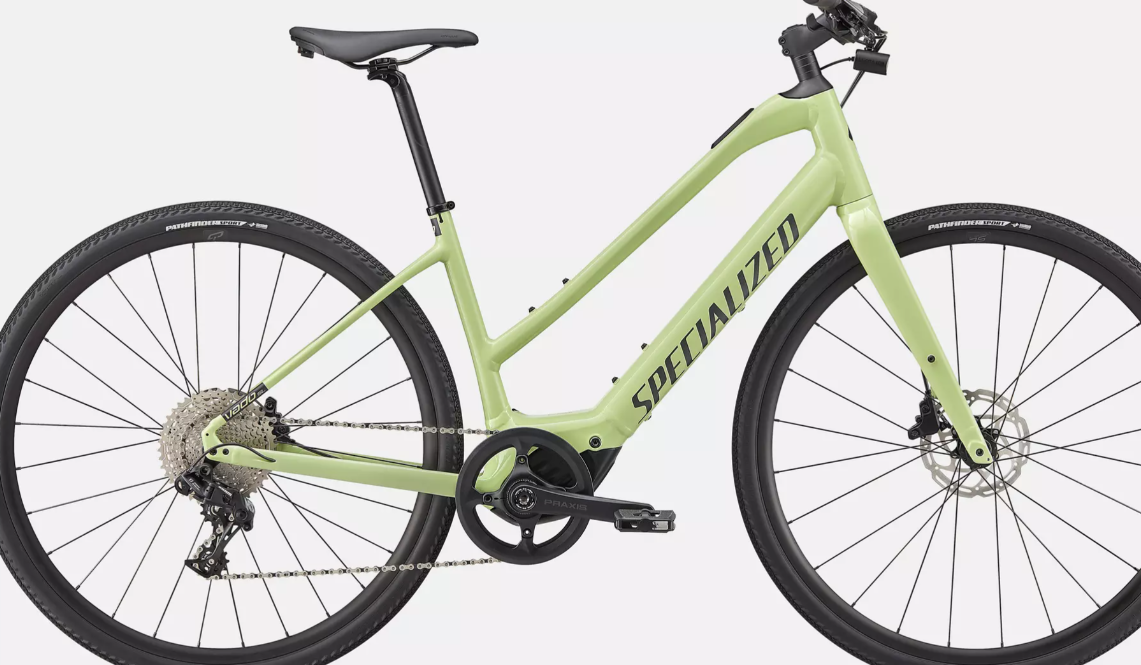

2025 Specialized Turbo Vado SL 4.0 Step-Through – Electric Hybrid Bike
Specifications
|
Specification |
Details |
|
Model |
Turbo Vado SL 4.0 Step-Through |
|
Vehicle Category |
Electric Hybrid Bike |
|
Application |
Commuting, fitness, exploration |
|
Starting Price (2025) |
$3,499.99 USD |
|
Color Options |
Cast Umber / Silver Reflective |
|
Sizes |
S, M, L, XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
E5 Aluminum, bottom bracket motor mount, fully integrated downtube battery, internal cable routing, fender and front rack mounts, Smooth Welds |
|
Fork |
Rigid full aluminum disc, Boost™ 12x110mm, front-rack-compatible |
|
Drivetrain Compatibility |
SRAM NX, 11-speed |
|
Dropouts |
12x110mm thru-axle (F), 12x148mm thru-axle (R) |
|
Crank |
Praxis, Forged alloy M30, custom offset |
|
Chain |
KMC e11S, 11-speed w/ Missing Link™ |
|
Rear Derailleur |
SRAM NX, 11-speed |
|
Shifters |
SRAM NX, 11-speed |
|
Cassette |
SUNRACE, CSMS7, 11-42t, 11-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bridge Sport, Steel rails, 155mm |
|
Fuel Type |
Electric (battery-powered) |
|
Cargo Capacity |
Fender and front rack mounts (capacity not specified, assumed compatible with standard racks) |
|
Wheels/Tyres |
700C disc, 22mm rim depth, 21mm internal width, DT Swiss Industry spokes, Specialized Pathfinder Sport, 700x38c, Standard 40mm PV 700x32-50 |
|
Wheel Size |
700C front, 700C rear |
|
Brakes |
Tektro HD-R285, hydraulic disc, 160mm |
|
Brake Levers |
Tektro HD-R285, hydraulic |
|

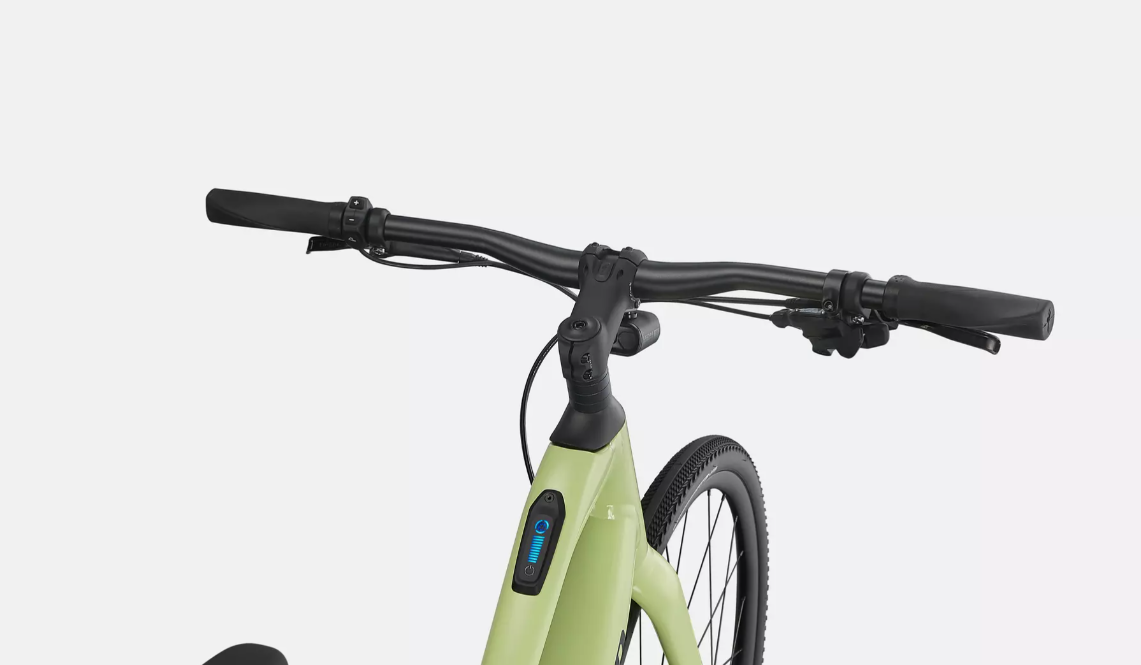

Handlebar |
Specialized, alloy, 9-degree backsweep, 15mm rise, 31.8mm |
|
Stem |
Specialized Stealth Stem, alloy, 14 deg, 31.8mm, integrated TCD mount |
|

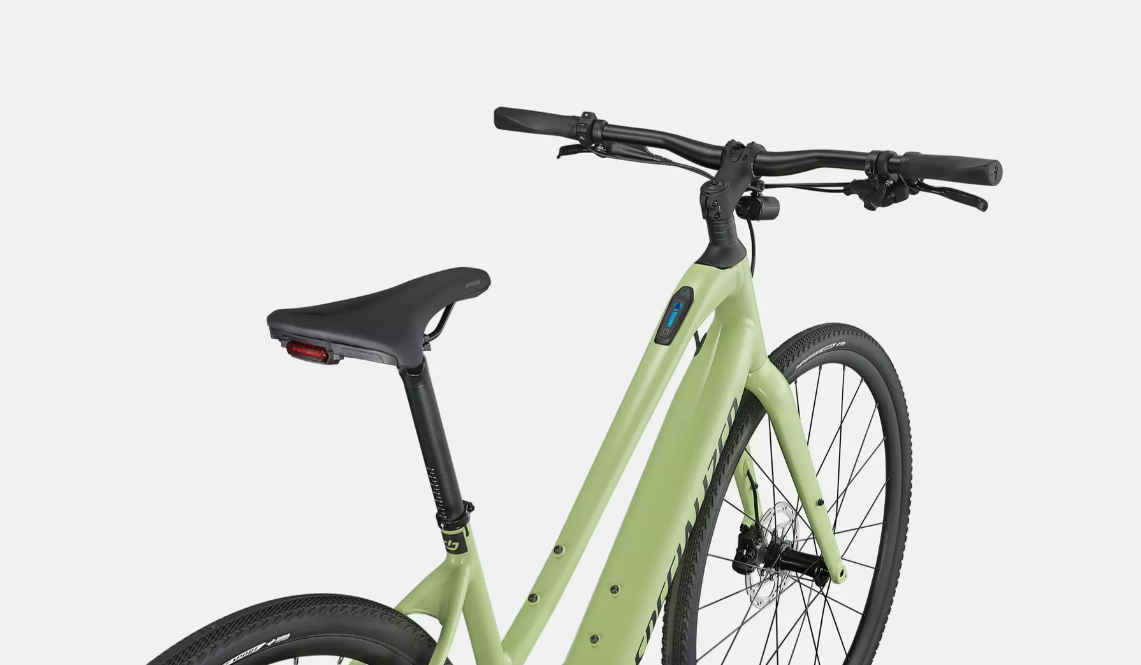

Saddle |
Bridge Sport, Steel rails, 155mm |
|
Seatpost |
Specialized, alloy, dual-bolt, 25mm offset, 27.2mm |
|
Seatpost Clamp |
Specialized Alloy, 30.8mm |
|
Grips |
Body Geometry Women's Contour |
|
Front Hub |
Specialized alloy front hub disc, sealed cartridge bearings, 12x110mm, Center Lock™, 24h |
|
Rear Hub |
Specialized alloy rear hub disc, Center Lock™, sealed cartridge bearings, 12x148mm, 28h |
|
Rims |
700C disc, 22mm rim depth, 21mm internal width |
|
Spokes |
DT Swiss Industry |
|
Pedals |
Specialized Commuter w/ grip tape & reflectors |
|
Exterior Features |
Lezyne Ebike Hecto STVZO E65 headlight (210 Lumens, 12V), Specialized integrated saddle mount taillight (LED Technology, 12V), Simple bell, Specialized Stealth Stem Light Insert |
|
Weight |
15.5 kg (34 lb, 2.7 oz) for size MD |
|
Motor |
Specialized SL 1.1, custom lightweight motor, 35Nm torque, 250W nominal, up to 28 mph |
|
Battery |
Specialized SL1-320, fully integrated, 320Wh, UL certified |
|
Controller |
Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote |
|
Charger |
Custom charger, 48V System w/ SL system charger plug |
