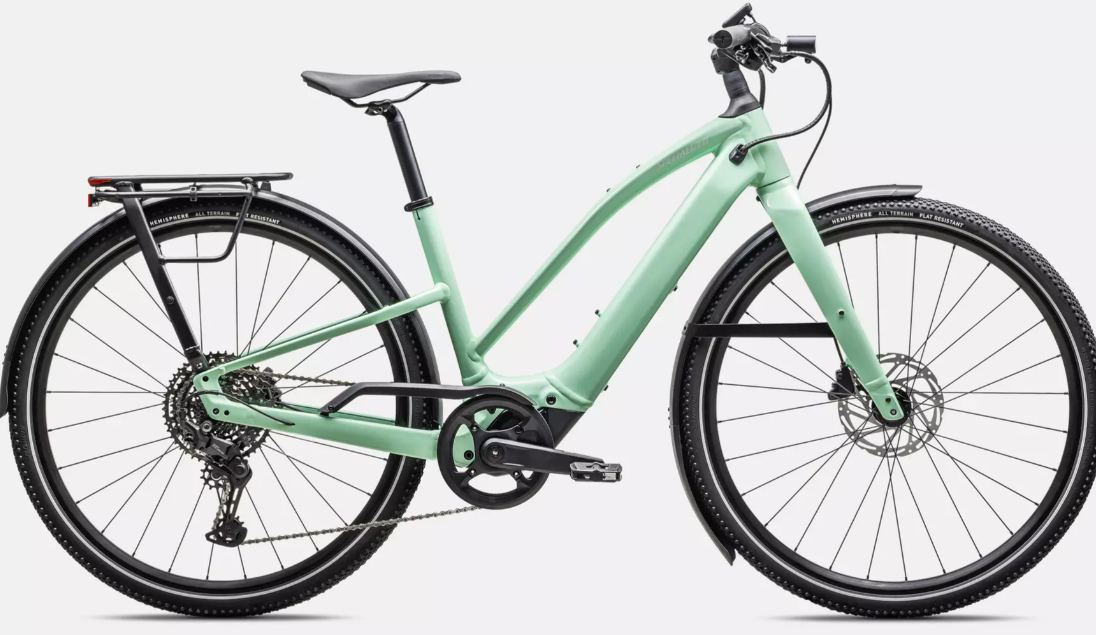

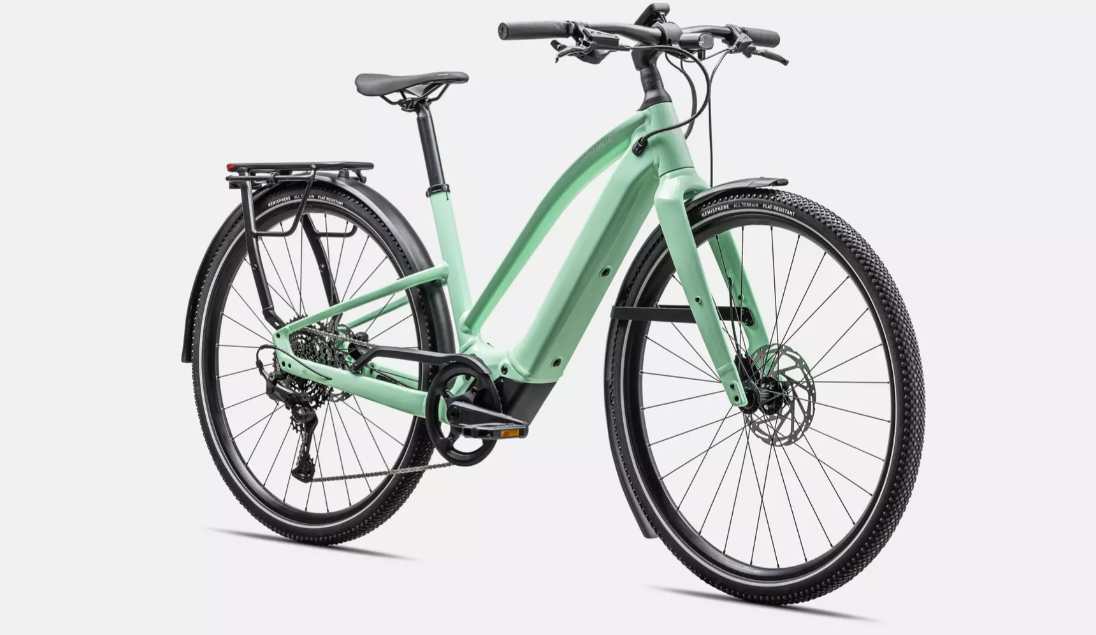

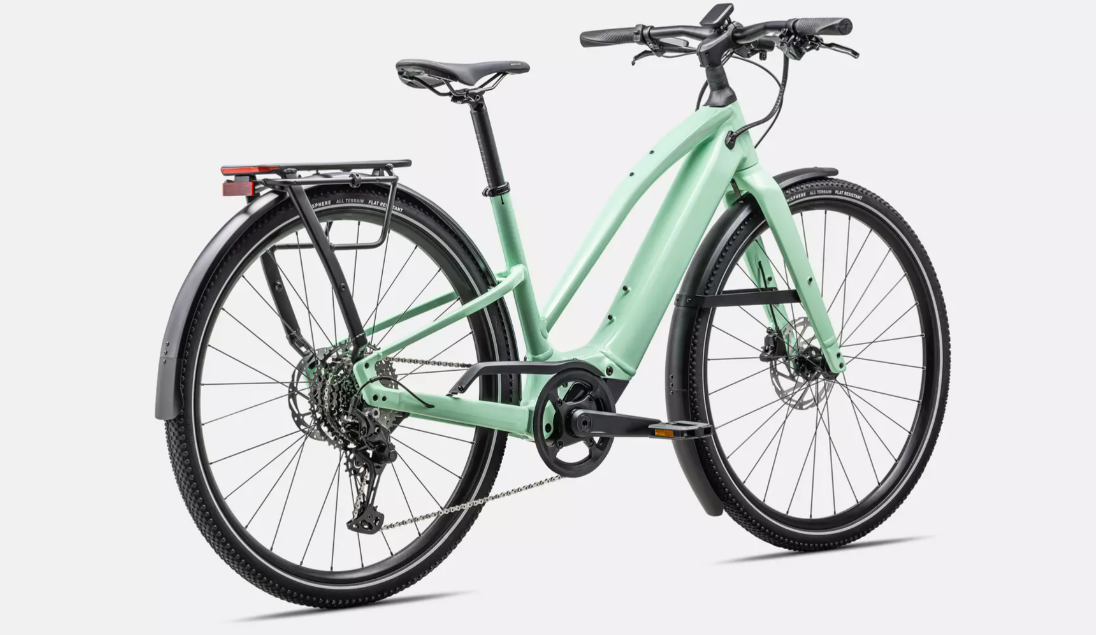

2025 Specialized Turbo Vado 4.0 Step-Through – Electric Hybrid Bike
Specifications
|
Specification |
Details |
|
Model |
Turbo Vado 4.0 Step-Through |
|
Vehicle Category |
Electric Hybrid Bike |
|
Application |
Fast commuting, fitness, exploration |
|
Starting Price (2025) |
$4,099.99 USD |
|
Color Options |
Gloss Castblack / Satin Silver Reflective |
|
Sizes |
S, M, L, XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
E5 Aluminum, bottom bracket motor mount, fully integrated & lockable downtube battery, internal cable routing, lock and front rack mount |
|
Fork |
SR Suntour MobieA32, 80mm travel, lockout, fender-mounts, integrated light mount |
|
Drivetrain Compatibility |
Shimano Cues, 9-speed |
|
Dropouts |
15x100mm (F), 12x148mm (R) |
|
Crank |
Custom alloy forged crankarms, 170mm |
|
Chain |
Shimano LG500 |
|
Rear Derailleur |
Shimano, RD-U4000, CUES, Gs 9-Speed, Top Normal, Shadow Design, Direct Attachment |
|
Shifters |
Shimano, SL-U4000-9R, CUES, Right, 9-Speed Rapidfire, W/ Optical Gear Display |
|
Cassette |
Shimano, CS-LG300-9, CUES, 9-Speed, 11-41T |
Components & Features
|
Specification |
Details |
|
Seating |
Bridge Sport, Steel rails, 155mm |
|
Fuel Type |
Electric (Lithium-ion battery) |
|
Cargo Capacity |
Specialized rack, MIK HD interface, built-in pannier mounts, 27kg max load |
|
Wheels/Tyres |
Front: 650b disc, double-wall alloy, pinned, 32h, Pathfinder Sport Reflect, 650Bx2.3; Rear: 650b disc, double-wall alloy, pinned, 32h, Pathfinder Sport Reflect, 650Bx2.3 |
|
Brakes |
Shimano BR-MT200, hydraulic disc, 180mm |
|
Brake Levers |
Shimano BR-MT200 |
|
Handlebar |
Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm |
|
Stem |
Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp |
|
Saddle |
Bridge Sport, Steel rails, 155mm |
|
Seatpost |
Spring suspension, alloy, 40mm travel, 30.9mm, 2-bolt clamp, 34.9mm sleeve |
|
Seatpost Clamp |
Alloy, bolt-type, 34.9mm |
|
Grips |
Specialized Body Geometry Contour |
|
Front Hub |
Shimano Center Lock Disc 32H, 15mm Thru Type Axle, 100mm |
|
Rear Hub |
Shimano Freehub, Center Lock Disc, 8-11-Speed 12mm Thru Type Axle, 32H, 148mm |
|
Rims |
650b disc, double-wall alloy, pinned, 32h |
|
Spokes |
DT Swiss Industry |
|
Pedals |
Specialized Commuter w/ grip tape & reflectors |
|
Exterior Features |
Fully integrated & lockable downtube battery, internal cable routing, lock and front rack mount, Specialized DRYTECH fenders, 65mm width, aluminum fenderstay, Specialized rack, MIK HD interface, Specialized kickstand, 40mm mount, Specialized bell, Lezyne Ebike Mini Stvzo E300+ headlight, Spanninga Stvzo Commuter Glow With Brake XEr taillight, Turbo System Lock |
|
Weight |
26.4 kg / 58 lb, 3.2 oz (size M) |
|
Drive Unit |
Specialized 2.0, 70Nm torque, custom tuned motor, 250W nominal |
|
Battery |
Specialized U2-710, integrated battery, state of charge display, 710Wh, UL |
|
Charger |
Custom charger, 42V4A w/ Rosenberger plug, 100-240V |
|
Display |
MasterMind TCD, w/handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages |
|
Certifications |
Certified to UL 2849 (e-system) and UL 2271 (battery) by UL Solutions and/or SGS |
