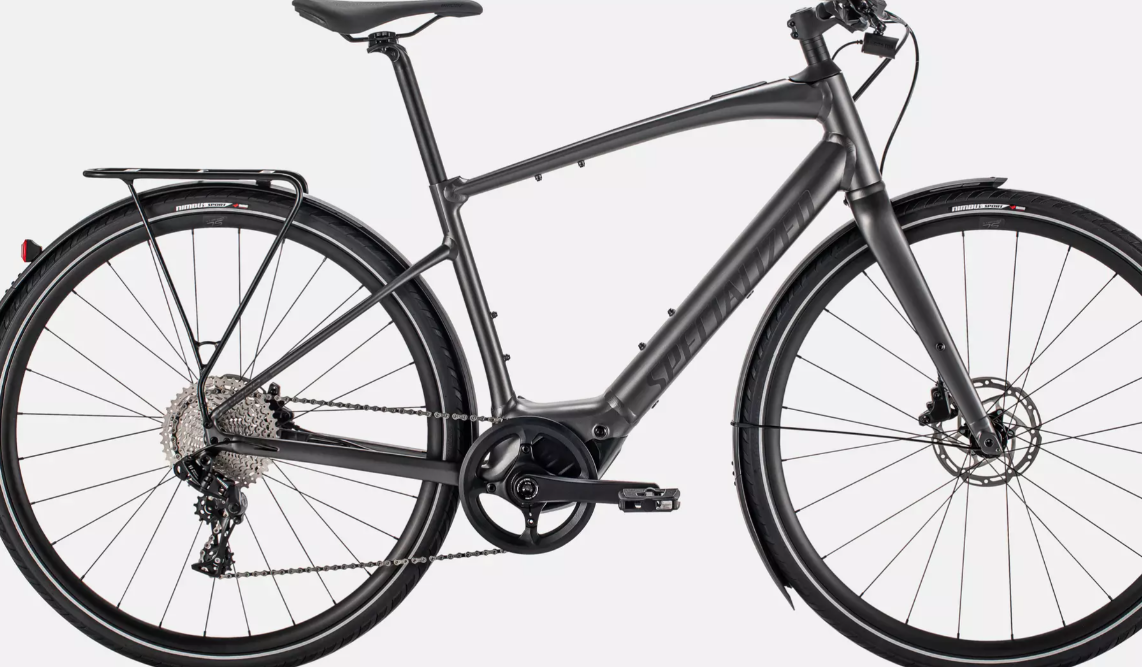

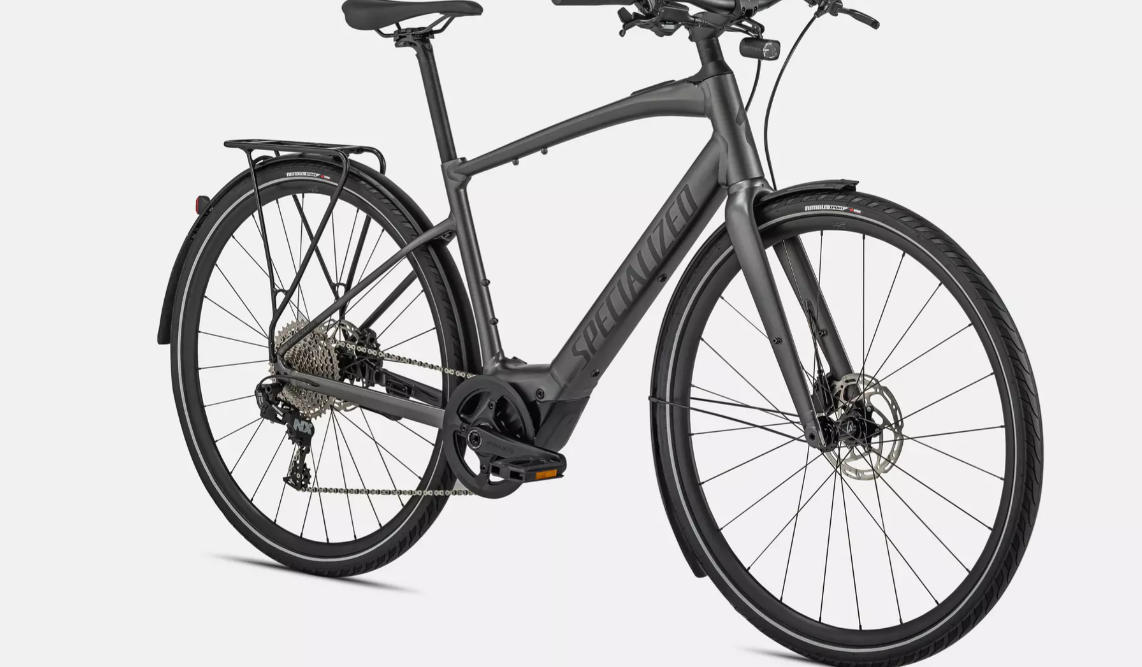

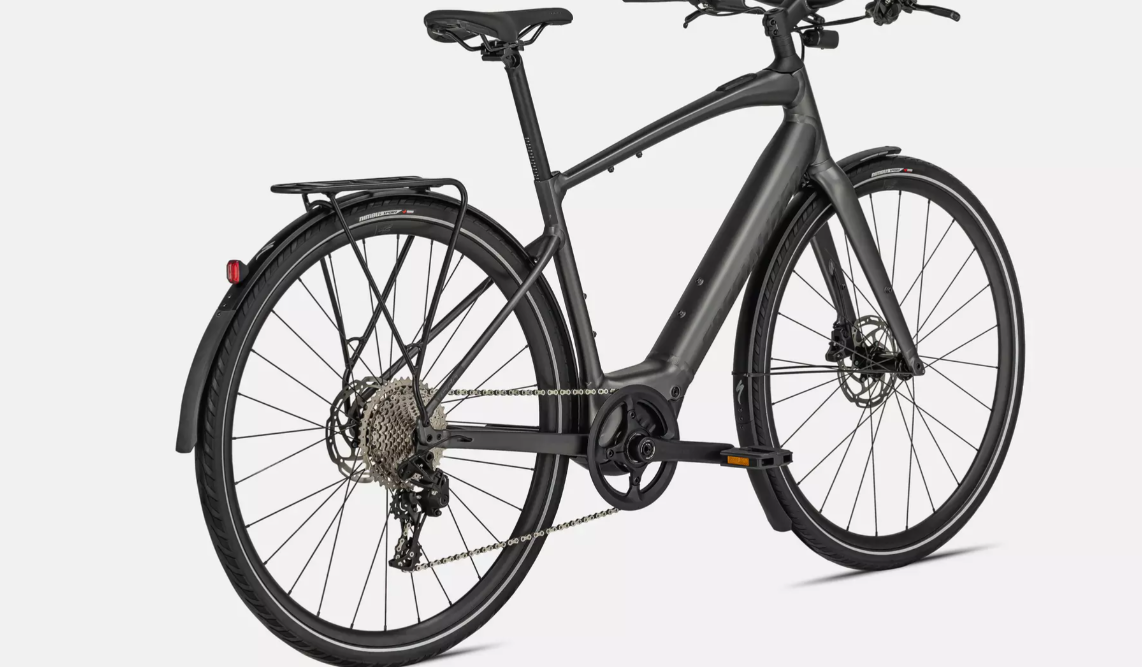

2025 Specialized Turbo Vado 3.0 Step-Through – Electric Hybrid Bike
Specifications
|
Specification |
Details |
|
Model |
Turbo Vado 3.0 Step-Through |
|
Vehicle Category |
Electric Hybrid Bike |
|
Application |
Commuting, fitness, exploration |
|
Starting Price (2025) |
$2,999.99 USD |
|
Color Options |
Cast Black / Silver Reflective |
|
Sizes |
S, M, L, XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
E5 Aluminum, bottom bracket motor mount, fully integrated & lockable downtube battery, internal cable routing, lock and front rack mount |
|
Fork |
SR Suntour MobieA32, 80mm travel, lockout, fender-mounts, integrated light mount |
|
Drivetrain Compatibility |
Shimano Alivio, 9-speed |
|
Dropouts |
15x100mm thru-axle (F), 12x148mm thru-axle (R) |
|
Crank |
Custom alloy forged crankarms |
|
Chain |
KMC e9T, 9-speed w/ Missing Link™ |
|
Rear Derailleur |
Shimano Alivio, SGS, 9-speed |
|
Shifters |
Shimano Alivio, 9-speed w/ Optical Gear Display |
|
Cassette |
Shimano CS-HG400, 9-speed, 11-36t |
Components & Features
|
Specification |
Details |
|
Seating |
Rivo Sport, steel rails, 155mm |
|
Fuel Type |
Electric (Lithium-ion battery) |
|
Cargo Capacity |
Specialized rack, MIK HD interface, built-in pannier mounts, 27kg max load |
|
Wheels/Tyres |
Front: 650b disc, double-wall alloy, pinned, 32h, Pathfinder Sport Reflect, 650Bx2.3; Rear: 650b disc, double-wall alloy, pinned, 32h, Pathfinder Sport Reflect, 650Bx2.3 |
|
Brakes |
Shimano BR-MT200, hydraulic disc, 180mm Centerlock (F and R) |
|
Brake Levers |
Shimano BR-MT200 |
|

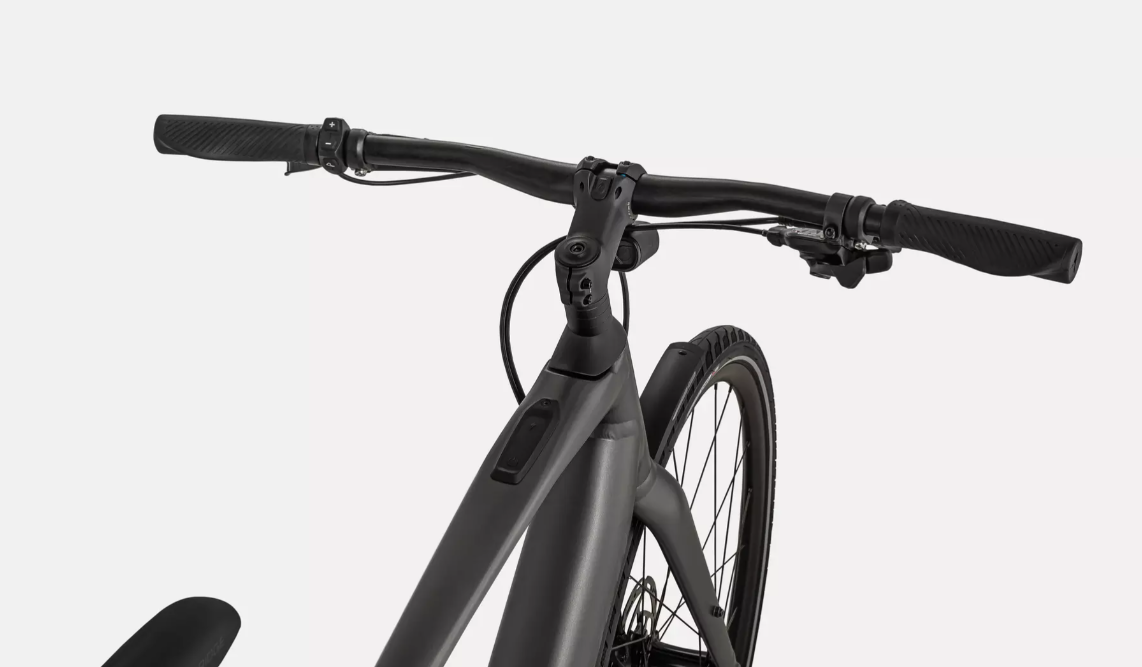

Handlebar |
Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm |
|
Stem |
Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp |
|

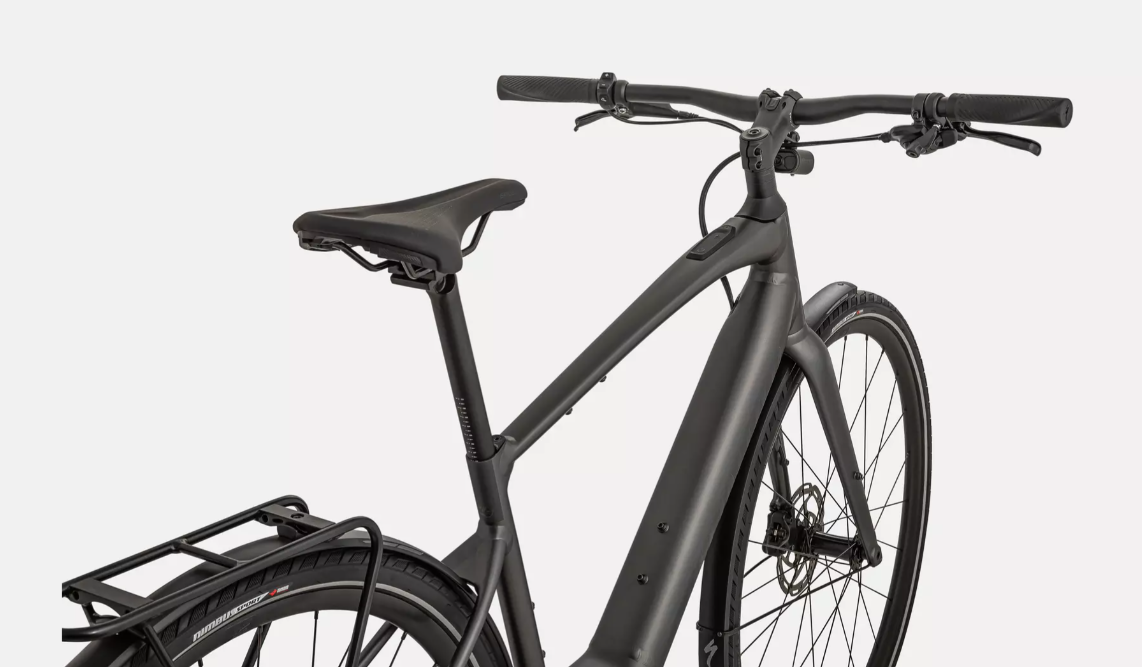

Saddle |
Rivo Sport, steel rails, 155mm |
|
Seatpost |
Specialized, 6061 alloy, 2-bolt clamp, 0mm setback, 30.9mm |
|
Seatpost Clamp |
Alloy, bolt-type, 34.9mm |
|
Grips |
Specialized Body Geometry Contour, lock-on |
|
Front Hub |
Shimano MT400, Centerlock, 15x100mm, 32h |
|
Rear Hub |
Shimano MT400-B, Centerlock, 12x148 Boost, 32h |
|
Rims |
650b disc, double-wall alloy, pinned, 32h |
|
Spokes |
DT Swiss Industry |
|
Pedals |
Specialized Commuter w/ grip tape & reflectors |
|
Exterior Features |
Fully integrated & lockable downtube battery, internal cable routing, Specialized DRYTECH fenders (65mm width, aluminum fenderstay), Specialized rack (MIK HD interface, 27kg max load), Lezyne EBIKE MINI STVZO E65 headlight (210 Lumen, 12V), Spanninga Commuter Glow XE taillight (12V), Specialized kickstand (40mm mount), Turbo System Lock, Simple bell |
|
Weight |
24.9 kg / 54 lb, 14.3 oz (size M) |
|
Drive Unit |
Specialized 2.0E, 50Nm torque, custom tuned motor, 250W nominal |
|
Battery |
Specialized U2-530, alloy casing, state of charge display, 530Wh |
|
Charger |
Custom charger, 42V4A w/ Rosenberger plug, 100-240V |
|
Display |
MasterMind TCD, w/handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages |
|
Certifications |
Certified to UL 2849 (e-system) and UL 2271 (battery) by UL Solutions and/or SGS |
