Specification

Details

Model

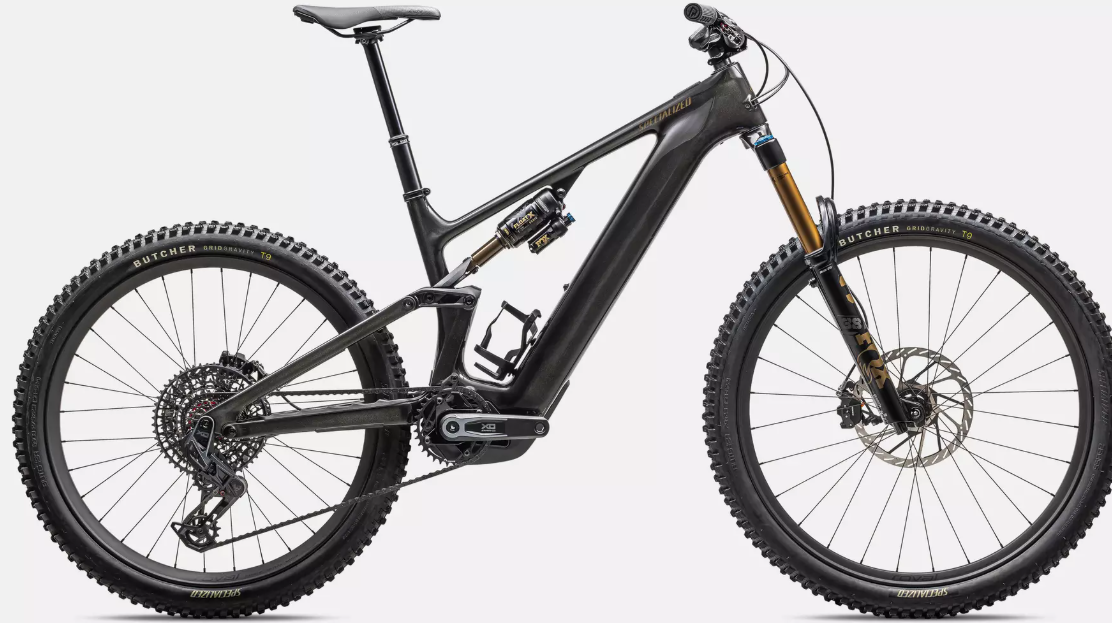

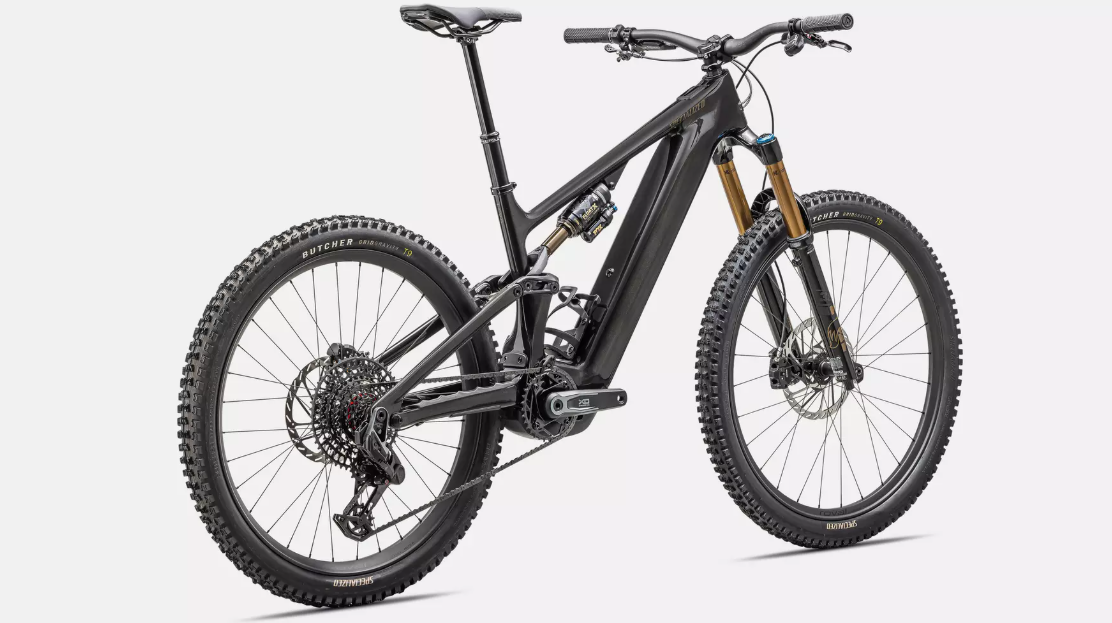

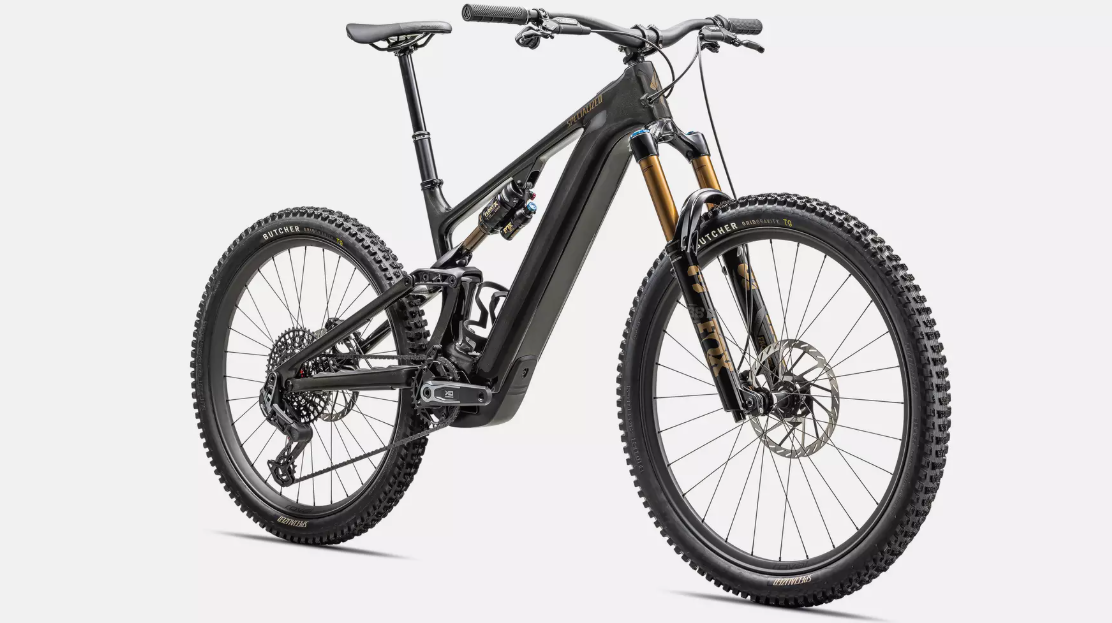

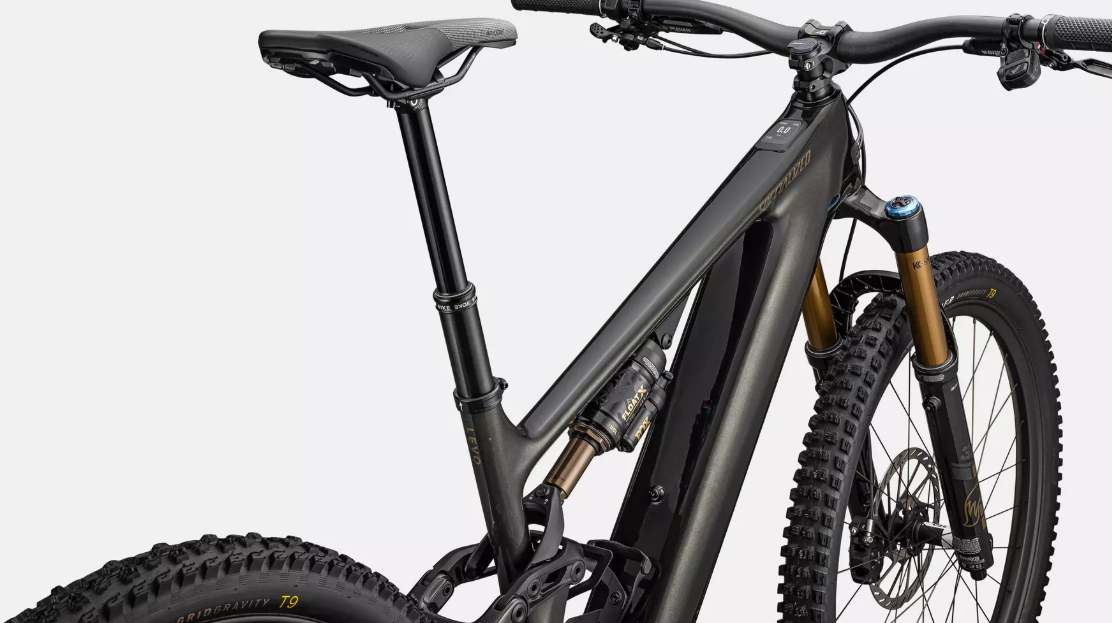

Turbo Levo 4 Pro

Vehicle Category

Electric Mountain Bike

Application

Full-power E-MTB trail riding, technical climbs, all-mountain

Starting Price (2025)

$12,299.99 USD

Color Options

Gloss Metallic Obsidian

Sizes

S2, S3, S4, S5, S6

Specification

Details

Frame

FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, SWAT storage, 150mm travel, side entry battery, fork travel up to 180mm

Fork

FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm axle, 44mm offset, 160mm travel

Rear Shock

FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever with 3-setting Open mode tuning range, LSR adjustment, 210x55mm

Drivetrain Compatibility

SRAM XO Eagle T-Type AXS, 12-speed, electronic

Dropouts

15x110mm axle (F), 12x148mm axle (R)

Crank

SRAM XO Alloy crank, ISIS interface, 55mm chainline, 155mm

Chain

SRAM XO

Rear Derailleur

SRAM XO Eagle Transmission, Wired SRAM AXS battery

Shifters

SRAM AXS POD Controller

Cassette

SRAM XO 1295, 12-speed, 10-52T

Specification

Details

Seating

Bridge Mimic Expert, Hollow Ti rails

Fuel Type

Electric (Specialized 3.1 Motor)

Cargo Capacity

SWAT internal downtube storage, weather-resistant

Wheels/Tyres

Roval Traverse HD, hookless carbon, 30mm inner width, tubeless ready, DT Swiss 350, 29x2.3" front (Butcher, GRID GRAVITY, GRIPTON T9, 2Bliss Ready), 27.5x2.3" rear (Butcher, GRID GRAVITY, GRIPTON T9, 2Bliss Ready), Presta valve tubes

Wheel Size

29" front, 27.5" rear

Brakes

SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm HS2 rotor (F), 200mm HS2 rotor (R)

Brake Levers

SRAM Maven Silver, hydraulic

Handlebar

RaceFace Era Carbon, riser bar, 5-degree upsweep, 8-degree backsweep, 800mm wide, 20mm rise (S2), 40mm rise (S3-S6)

Stem

Industry 9 Mountain stem, 35mm clamp, 40mm length

Headset

Integrated, sealed cartridge bearing

Saddle

Bridge Mimic Expert, Hollow Ti rails

Seatpost

Bike Yoke Revive Max 3.0, 34.9mm, 125mm (S2), 160mm (S3), 185mm (S4), 213mm (S5/S6)

Seatpost Clamp

Alloy, 38.6mm

Grips

Deity Lockjaw grips

Front Hub

DT Swiss 350, 15x110mm, 28h

Rear Hub

DT Swiss 350, 12x148mm, 32h

Rims

Roval Traverse HD, hookless carbon, 30mm inner width, tubeless ready, 29" front, 27.5" rear

Spokes

DT Swiss Competition Race

Exterior Features

SWAT internal downtube storage, adjustable geometry, lifetime replacement suspension bearings, mixed wheel setup

Weight

23.94 kg / 52 lb 12.5 oz (S4)

Motor

Specialized 3.1 Motor, 101Nm torque, 666W power, 25kph max assist (Class 1)

Battery

840Wh, side entry, includes 280Wh range extender, up to 1,120Wh total capacity

Controller

MasterMind T3 Display System, 2.2" high-resolution color screen, customizable with Specialized app, Bluetooth, Apple Find My integration, Micro Tune, Smart Control

Charger

Specialized 4A charger, 0-80% in under 1 hour
