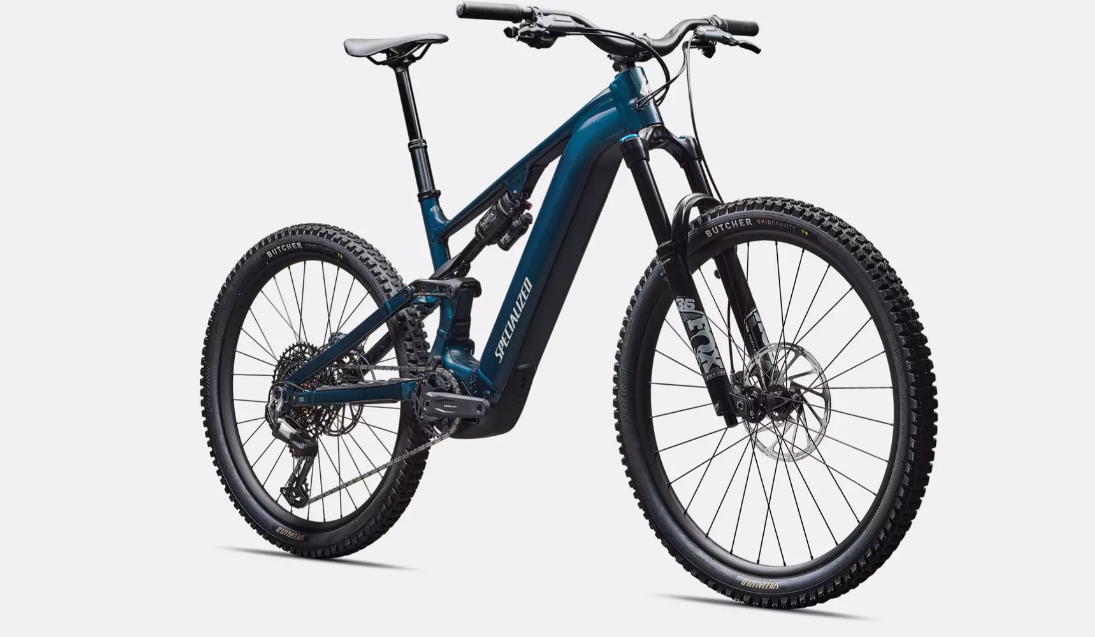

2025 Specialized Turbo Levo 4 Comp Alloy – Electric Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Turbo Levo 4 Comp Alloy |
|
Vehicle Category |
Electric Mountain Bike |
|
Application |
Full Power E-MTB Trail |
|
Starting Price (2025) |
$7,699.99 USD |
|
Color Options |
Gloss Deep Lake Metallic |
|
Sizes |
S1, S2, S3, S4, S5, S6 |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
M5 Alloy, 150mm travel, adjustable chainstay, head tube angle, bottom bracket, SWAT storage, 148mm spacing |
|
Fork |
FOX 36 Rhythm, 29", 150mm (S1), 160mm (S2-S6), GRIP damper with Sweep adjust, 44mm offset, 15x110mm boost, thru-axle |
|
Rear Shock |
FOX FLOAT X Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment, 210x55mm |
|
Drivetrain Compatibility |
SRAM 90 Eagle T-Type, 12-speed |
|
Dropouts |
15x110mm thru-axle (F), 12x148mm thru-axle (R) |
|
Crank |
SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm |
|
Chain |
SRAM 70 Transmission Chain, 12-speed |
|
Rear Derailleur |
SRAM Eagle 90 T-Type |
|
Shifters |
SRAM 90 trigger, 12-speed, single click |
|
Cassette |
SRAM 1270 Transmission Cassette, 12-speed, 10-52t |
Components & Features
|
Specification |
Details |
|
Seating |
Bridge Comp, Hollow Cr-mo rails, 155mm/143mm |
|
Fuel Type |
Electric (Lithium-ion battery) |
|
Cargo Capacity |
SWAT internal downtube storage for trailside repair essentials |
|
Wheels/Tyres |
Front: Specialized alloy, 29", Butcher, GRID GRAVITY casing, GRIPTON® T9, TLR, 29x2.4"; Rear: Specialized alloy, 27.5", Butcher, GRID GRAVITY casing, GRIPTON® T9, TLR, 27.5x2.4" |
|
Wheel Size |
Mixed: 29" (F), 27.5" (R) |
|
Brakes |
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm Centerline rotor (F), 200mm Centerline rotor (R) |
|
Brake Levers |
SRAM Maven Bronze |
|
Handlebar |
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 780mm width and 30mm rise (S1-S2), 800mm width and 50mm rise (S3-S6) |
|
Stem |
Alloy Trail Stem, 35mm bar bore |
|
Saddle |
Bridge Comp, Hollow Cr-mo rails, 155mm/143mm |
|
Seatpost |
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9mm, 100mm (S1), 125mm (S2), 150mm (S3), 170mm (S4), 190mm (S5/S6) |
|
Seatpost Clamp |
Alloy, 38.6mm |
|
Grips |
Specialized Trail Grips |
|
Front Hub |
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h |
|
Rear Hub |
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h |
|
Rims |
Specialized, hookless alloy, 30mm inner width, tubeless ready, 29" (F), 27.5" (R) |
|
Spokes |
DT Swiss Industry |
|
Exterior Features |
Adjustable geometry, SWAT internal downtube storage, mixed wheel setup, lifetime replacement suspension bearings |
|
Weight |
25.70 kg / 56 lb, 11.2 oz (size S4) |
|
Drive Unit |
Specialized 3.1 motor, 666W power, 101Nm torque |
|
Battery |
Specialized Turbo X2, 840Wh integrated battery pack, up to 5.33 hour range |
|
Charger |
Specialized 4amp charger, 0-80% in under 1 hour |
|
Display |
MasterMind T3 Display System, 2.2" high-resolution color screen, customizable with Specialized app, Bluetooth integration |
|
Certifications |
Certified to UL 2849 (e-system) and UL 2271 (battery) by UL Solutions and/or SGS |
