Specification

Details

Model

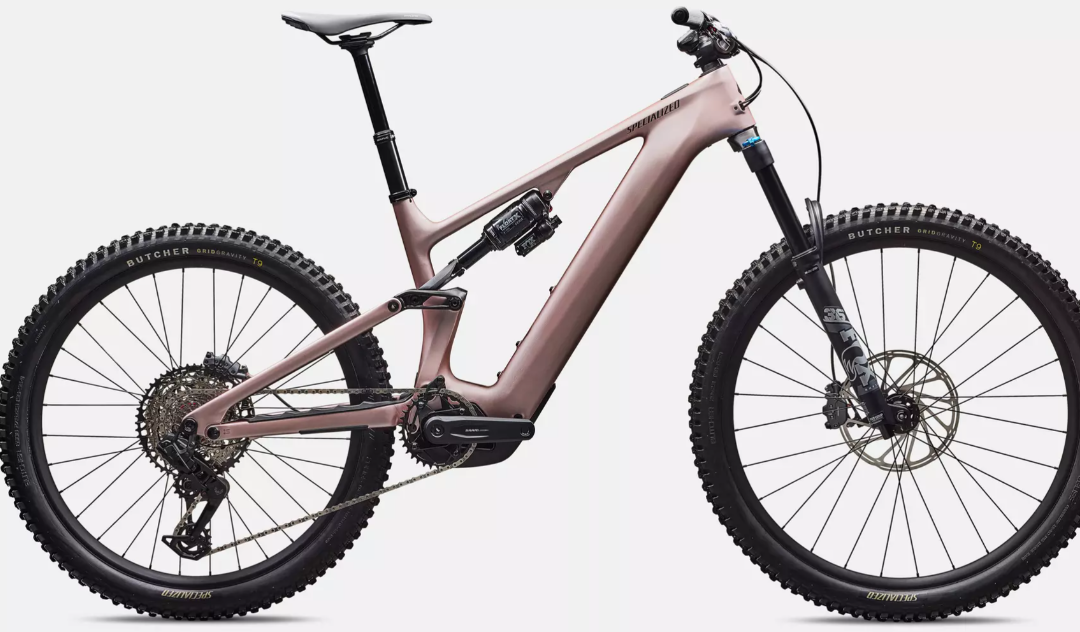

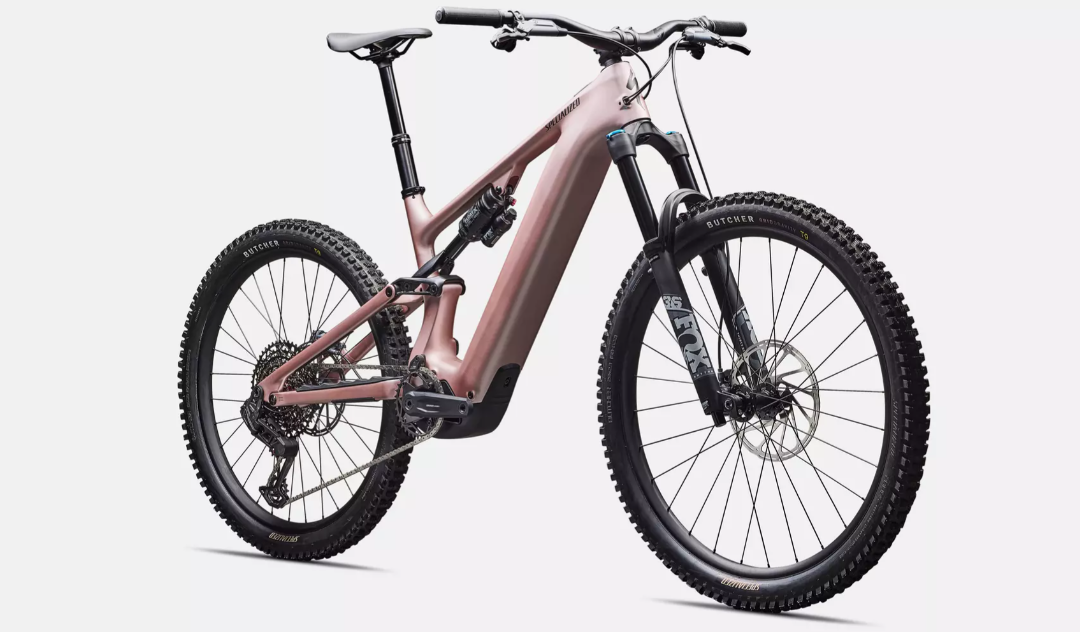

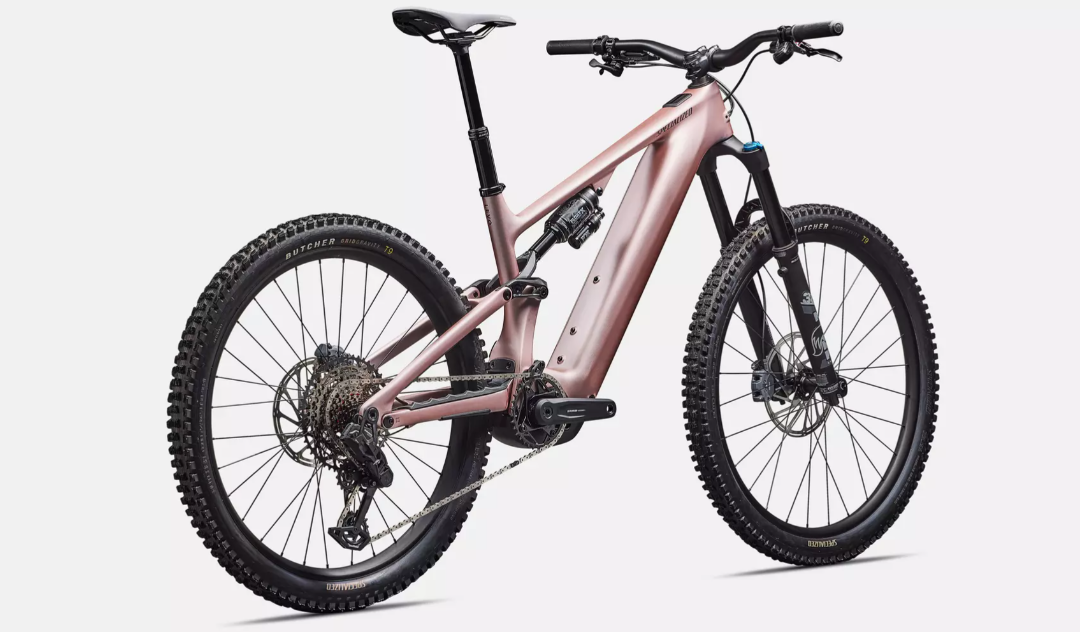

Turbo Levo 4 Comp

Vehicle Category

Electric Mountain Bike

Application

Full-power E-MTB trail riding, technical climbs, all-mountain

Starting Price (2025)

$9,199.99 USD

Color Options

Satin Champagne

Sizes

S2, S3, S4, S5, S6

Specification

Details

Frame

FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, SWAT storage, 150mm travel, side entry battery, fork travel up to 180mm

Fork

FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm axle, 44mm offset, 160mm travel

Rear Shock

FOX FLOAT X Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment, 210x55mm

Drivetrain Compatibility

SRAM S1000 Eagle T-Type AXS, 12-speed, electronic

Dropouts

15x110mm axle (F), 12x148mm axle (R)

Crank

SRAM S1000 Crankset, ISIS interface, Integrated Guard, 55mm Chainline, 155mm

Chain

SRAM GX Eagle Transmission Flattop Chain

Rear Derailleur

SRAM S1000 Eagle Transmission, Wired SRAM AXS battery

Shifters

SRAM AXS POD Controller

Cassette

SRAM 1270 Transmission Cassette, 12-speed, 10-52T

Specification

Details

Seating

Bridge Comp, Hollow Cr-mo rails

Fuel Type

Electric (Specialized 3.1 Motor)

Cargo Capacity

SWAT internal downtube storage, weather-resistant

Wheels/Tyres

Specialized 29F/27.5R, hookless alloy, 30mm inner width, tubeless ready, Bear Pawls hubs, DT Swiss Industry spokes, 29x2.3" front (Butcher, GRID GRAVITY casing, GRIPTON T9 compound, 2Bliss Ready), 27.5x2.3" rear (Butcher, GRID GRAVITY casing, GRIPTON T9 compound, 2Bliss Ready), Presta valve tubes

Wheel Size

29" front, 27.5" rear

Brakes

SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm rotor (F), 200mm rotor (R)

Brake Levers

SRAM Maven Bronze, hydraulic

Handlebar

Alloy handlebars, 35mm diameter, 8-degree backsweep, 6-degree upsweep, 780mm width (S2), 800mm width (S3-S5), 40mm rise (S3-S5)

Stem

Alloy Trail Stem, 35mm bar bore

Headset

Integrated, sealed cartridge bearing

Saddle

Bridge Comp, Hollow Cr-mo rails

Seatpost

Xfusion Manic, infinite adjustable, two-bolt head, Remote SLR LE lever, 34.9mm, 125mm (S2), 170mm (S3), 190mm (S4-S6)

Seatpost Clamp

Alloy, 38.6mm

Grips

Specialized Trail Grips

Front Hub

Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

Rear Hub

Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h

Rims

Specialized 29F/27.5R, hookless alloy, 30mm inner width, tubeless ready

Spokes

DT Swiss Industry

Exterior Features

SWAT internal downtube storage, adjustable geometry, lifetime replacement suspension bearings, mixed wheel setup

Weight

24.41 kg / 53 lb 13.0 oz (S4)

Motor

Specialized 3.1 Motor, 101Nm torque, 666W power, 25kph max assist (Class 1)

Battery

840Wh, side entry, includes 280Wh range extender, up to 1,120Wh total capacity, up to 5.33 hour range

Controller

MasterMind T3 Display System, 2.2" high-resolution color screen, customizable with Specialized app, Bluetooth, Apple Find My integration, Micro Tune, Smart Control

Charger

Specialized 4A charger, 0-80% in under 1 hour
