Specification

Details

Model

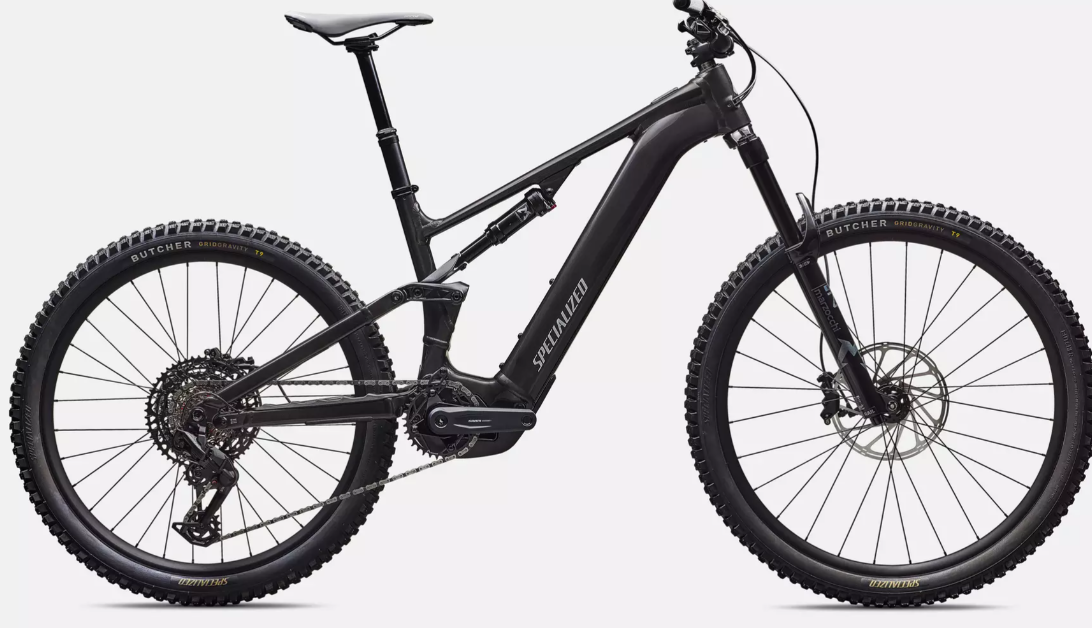

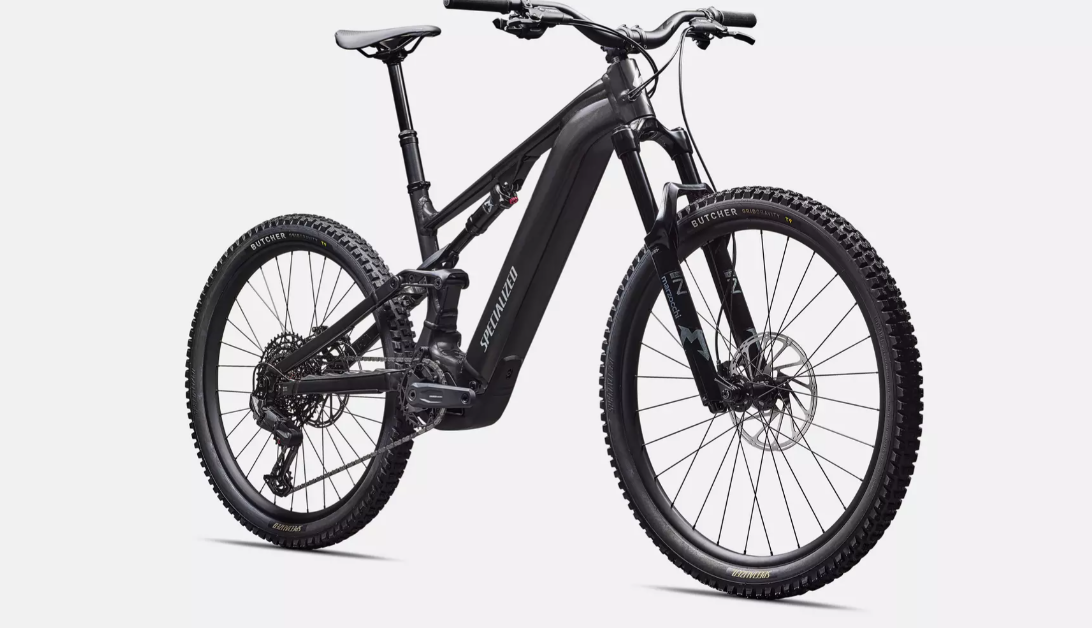

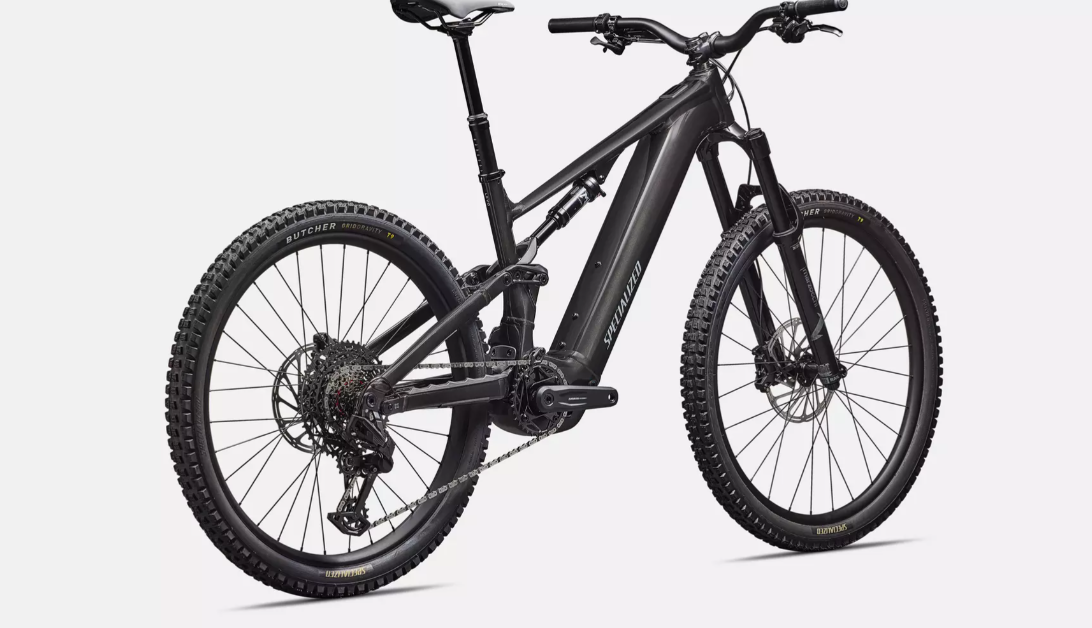

Turbo Levo 4 Alloy

Vehicle Category

Electric Mountain Bike

Application

Full Power E-MTB Trail

Starting Price (2025)

$6,099.99 USD

Color Options

Gloss Metallic Obsidian

Sizes

S1, S2, S3, S4, S5, S6

Specification

Details

Frame

M5 Alloy frame, 150mm travel, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage, 12x148mm spacing, 29" front wheel/27.5" rear wheel, fork travel up to 180mm

Fork

Marzocchi Bomber Z1, 29", 150mm (S1), 160mm (S2-S6), sweep adjust compression

Rear Shock

Marzocchi Bomber Inline, EVOL LV air sleeve, rebound adjust, 210x55mm

Drivetrain Compatibility

SRAM Eagle 70 T-Type, 12-speed

Dropouts

15x110mm (F), 12x148mm (R)

Crank

SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm

Chain

SRAM Eagle 70 T-Type Flattop Chain, 12-speed

Rear Derailleur

SRAM Eagle 70 T-Type

Shifters

SRAM 70 trigger, 12-speed, single click

Cassette

SRAM XS-1270, 12-speed, 10-52t

Specification

Details

Seating

Body Geometry Bridge Saddle, steel rails

Fuel Type

Electric (Lithium-ion battery)

Cargo Capacity

SWAT internal downtube storage

Wheels/Tyres

Front: Specialized, hookless alloy, 30mm inner width, Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"; Rear: Specialized, hookless alloy, 30mm inner width, Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4"

Wheel Size

Mixed: 29" (F), 27.5" (R)

Brakes

SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 220mm Centerline rotor (F), 200mm Centerline rotor (R)

Brake Levers

SRAM DB8 Stealth

Handlebar

Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm (S1-S2), 800mm (S3-S6)

Stem

Alloy Trail Stem, 35mm bar bore

Saddle

Body Geometry Bridge Saddle, steel rails

Seatpost

TranzX dropper, 34.9mm, 100mm (S1), 125mm (S2), 150mm (S3), 170mm (S4-S5), 200mm (S6)

Seatpost Clamp

Alloy, 38.6mm

Grips

Specialized Trail Grips

Front Hub

Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

Rear Hub

Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h

Rims

Specialized 29/27.5, hookless alloy, 30mm inner width, tubeless ready

Spokes

DT Swiss Industry

Exterior Features

Adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, SWAT internal downtube storage, lifetime replacement suspension bearings

Weight

26.08 kg / 57 lb, 7.8 oz (size S4)

Drive Unit

Specialized 3.1 Motor, 101Nm torque, 666W power

Battery

Specialized Turbo X2, 840Wh integrated battery pack, up to 5.33 hour range

Charger

Specialized 4amp charger, 0-80% in under 1 hour

Display

MasterMind T3 Display System, 2.2" high-resolution color screen, customizable with Specialized app, Bluetooth integration

Certifications

Certified to UL 2849 (e-system) and UL 2271 (battery) by UL Solutions and/or SGS
