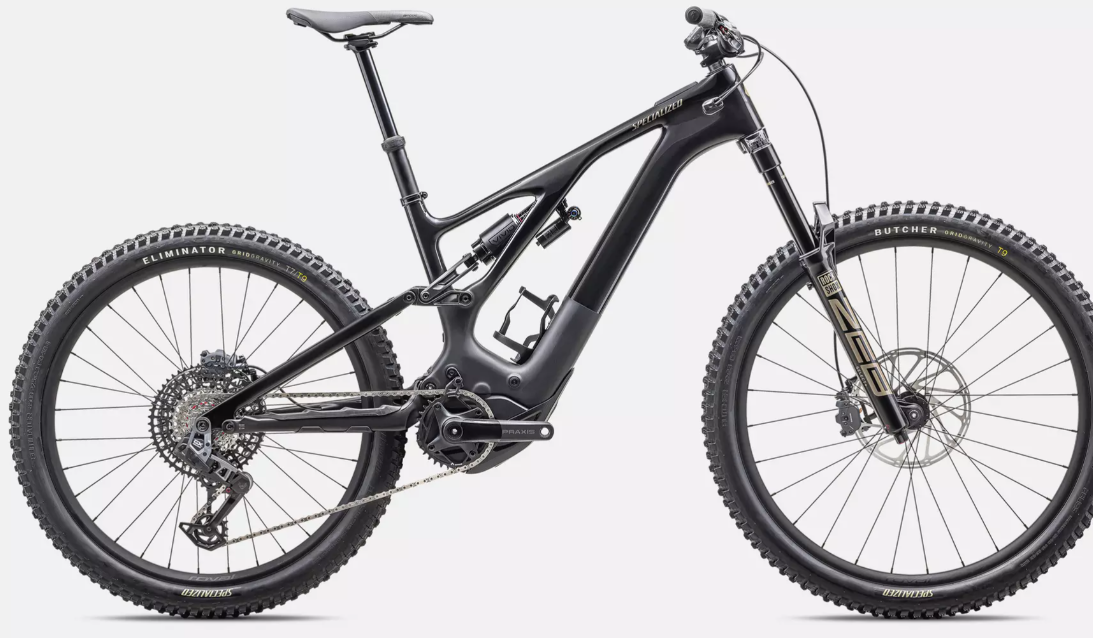

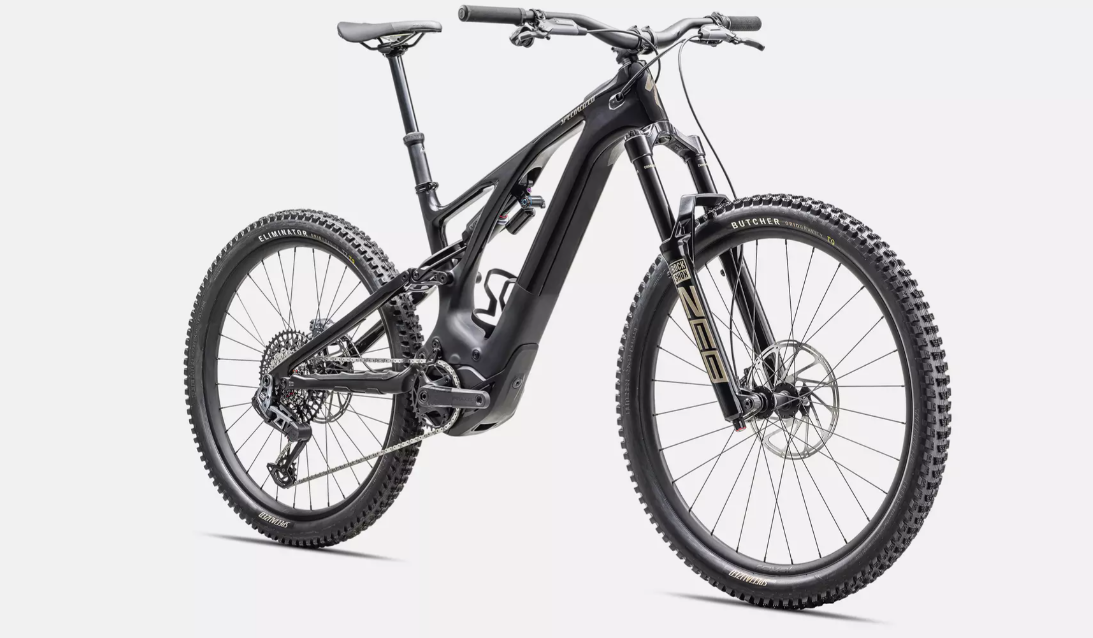

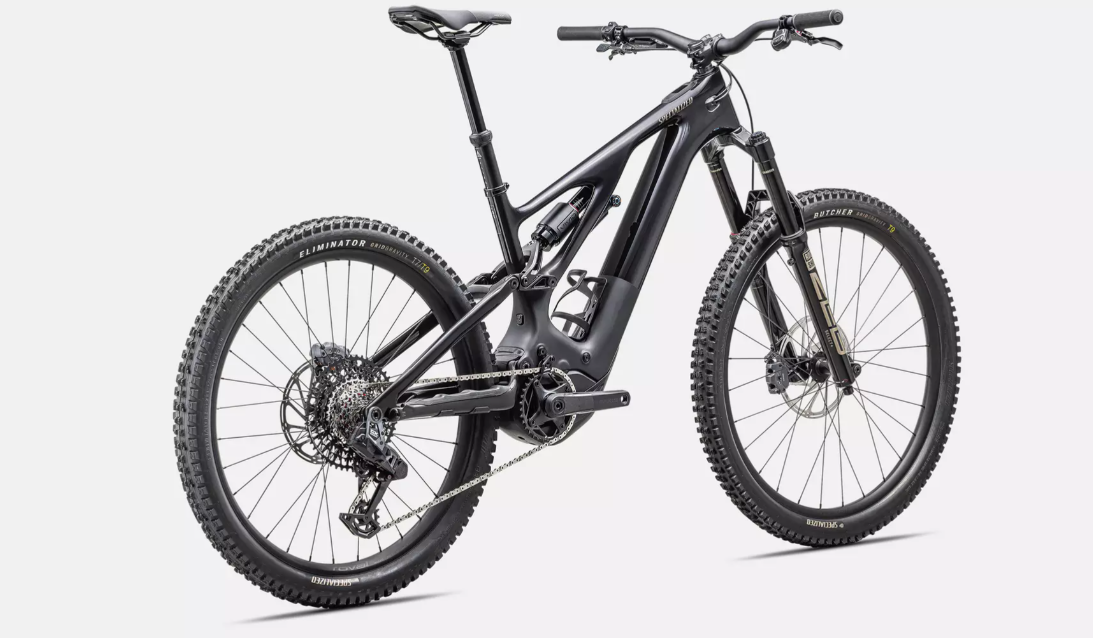

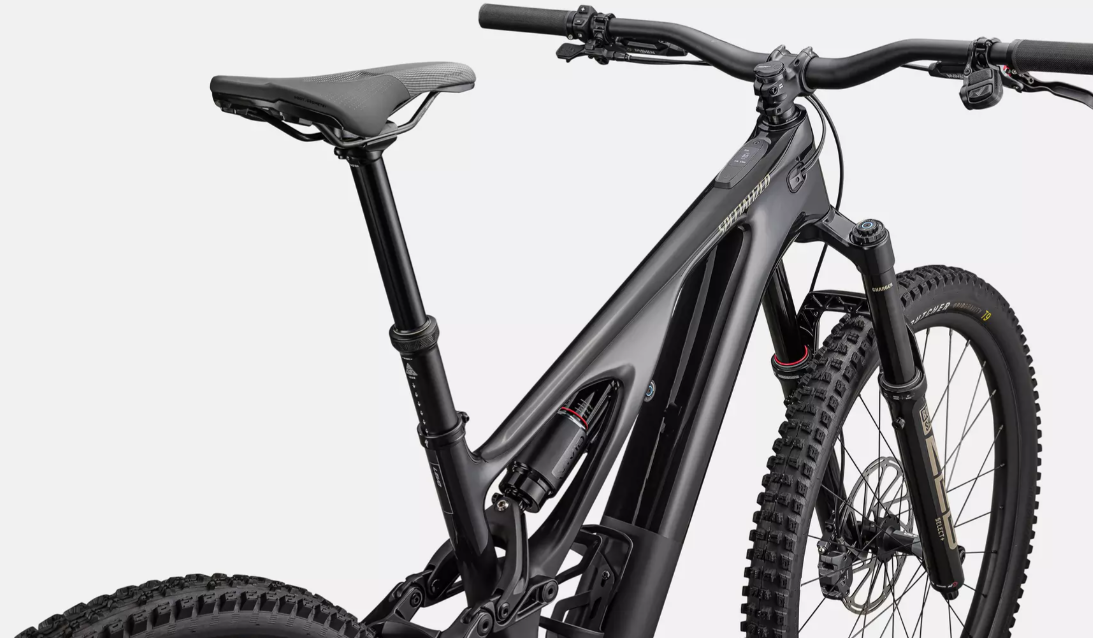

2025 Specialized Turbo Levo 3 Expert – Electric Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Turbo Levo 3 Expert |
|
Vehicle Category |
Electric Mountain Bike |
|
Application |
Trail riding, enduro, technical cross-country |
|
Starting Price (2025) |
$8,499.99–$9,999.99 USD |
|
Color Options |
Obsidian / Taupe |
|
Sizes |
S2, S3, S4, S5, S6 |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot |
|
Fork |
RockShox Zeb Select Plus, 29", S1: 150mm, S2-S6: 160mm |
|
Rear Shock |
S1: RockShox Deluxe Select Plus, 210x52.5mm; S2-S6: RockShox Vivid Select Plus, 210x55mm |
|
Dropouts |
15x110mm (F), 12x148mm (R) |
|
Crank |
Praxis forged M30, custom offset, 160mm |
|
Chain |
SRAM GX Eagle Transmission Flattop Chain |
|
Rear Derailleur |
SRAM GX Eagle Transmission Derailleur |
|
Shifters |
SRAM AXS POD Controller |
|
Cassette |
SRAM GX Eagle Transmission Cassette, 12-speed, 10-52t |
Components & Features
|
Specification |
Details |
|
Seating |
Specialized Bridge Comp with Mimic |
|
Fuel Type |
Electric (Lithium-ion battery) |
|
Cargo Capacity |
SWAT CC steerer tube integrated tool with chain tool and link |
|
Wheels/Tyres |
Front: Traverse Alloy 350, 29", 15x110mm, Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"; Rear: Traverse Alloy 350, 27.5", XD freehub body, 12x148mm, Eliminator, GRID GRAVITY casing, GRIPTON® T9/T7 compound, 2Bliss Ready, 27.5x2.3" |
|
Brakes |
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm rotor (F), 200mm rotor (R), metallic pads |
|
Brake Levers |
SRAM Maven Bronze |
|

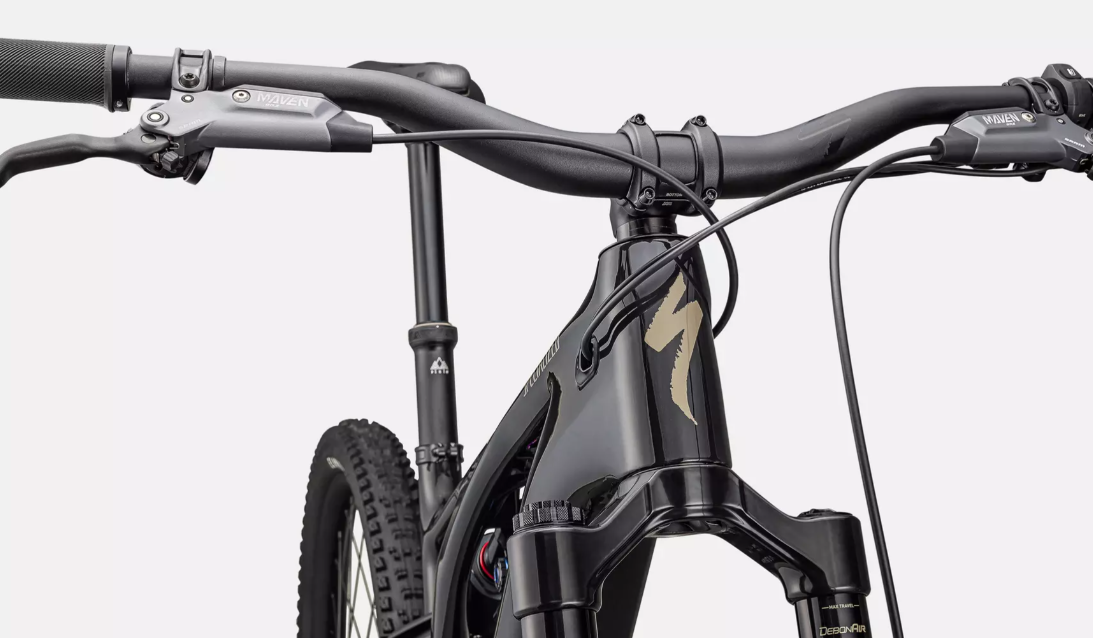

Handlebar |
6061 mtn bars, 35mm diameter, 8-degree backsweep, 6-degree upsweep, 800mm width, S1/S2: 30mm rise, S3-S6: 40mm rise |
|
Stem |
Alloy Trail Stem, 35mm bar bore |
|
Headset |
Not specified |
|
Saddle |
Specialized Bridge Comp with Mimic |
|
Seatpost |
PNW Loam Dropper, S1: 125mm, S2: 150mm, S3: 170mm, S4-S6: 200mm |
|
Seatpost Clamp |
Alloy, 38.6mm |
|
Grips |
Specialized Trail Grips |
|
Front Hub |
Traverse Alloy 350, 15x110mm, 28h |
|
Rear Hub |
Traverse Alloy 350, XD freehub body, 12x148mm, 28h |
|
Rims |
Traverse Alloy 350, 29mm inner width, tubeless ready |
|
Exterior Features |
Geo adjust head tube, geo adjust horst pivot, full internal cable routing, SWAT CC steerer tube integrated tool |
|
Weight |
23.04 kg / 50 lb, 12.7 oz (size S4) |
|
Drive Unit |
Specialized 2.2 Custom Rx Trail Tuned Motor, 90Nm torque, 565W power |
|
Battery |
Specialized M3-700, Integrated battery, 700Wh |
|
Charger |
Custom charger, 42V4A with Rosenberger plug, 100-240V |
|
Display |
Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, with handlebar remote |
|
Certifications |
Certified to UL 2849 (e-system) and UL 2271 (battery) by UL Solutions and/or SGS |
