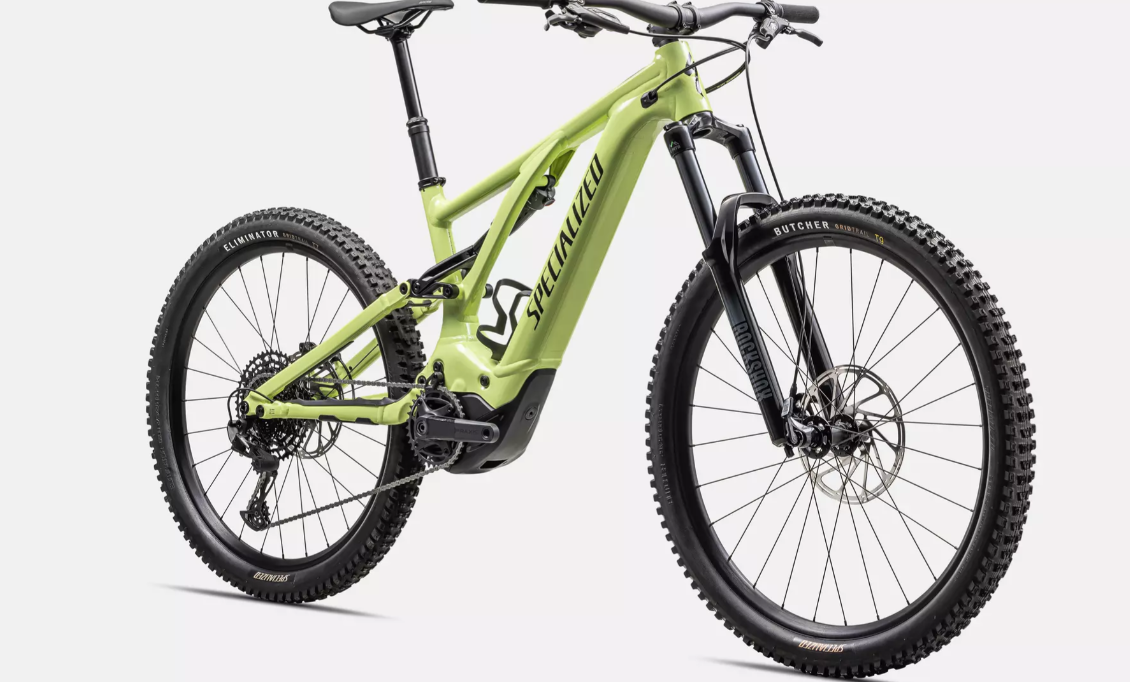

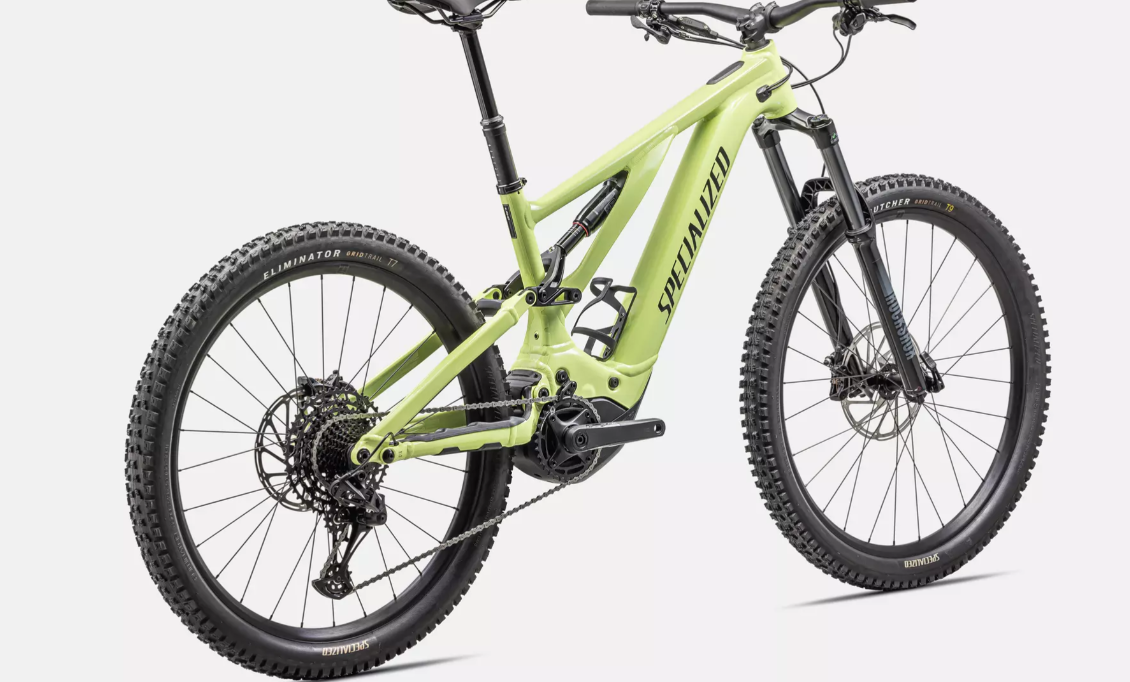

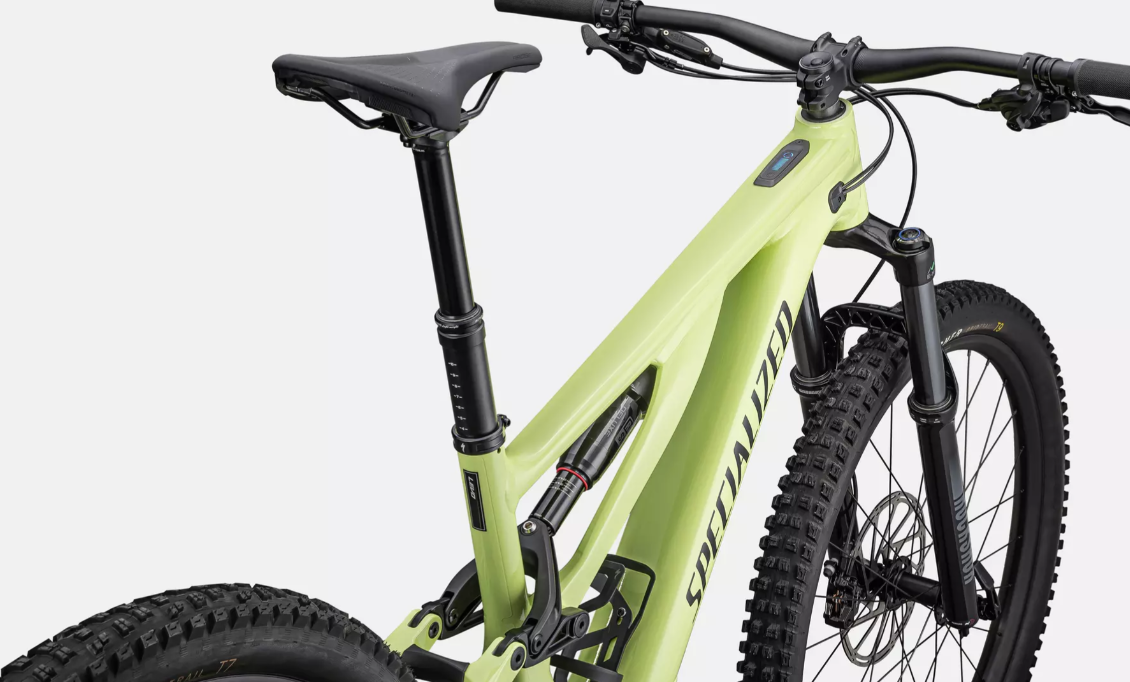

2025 Specialized Turbo Levo 3 Alloy – Electric Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Turbo Levo 3 Alloy |
|
Vehicle Category |
Electric Mountain Bike |
|
Application |
Trail riding, all-mountain |
|
Starting Price (2025) |
$3,799.99 USD (was $5,499.99) |
|
Color Options |
Gloss Limestone / Black |
|
Sizes |
S1, S2, S3, S4, S5, S6 |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Specialized M5 premium alloy, BB height adjust, S-Sizing, internal cable routing, 150mm travel, 148mm spacing |
|
Fork |
RockShox 35 Silver, 35mm stanchion, Turnkey damper, 150mm (S1), 160mm (S2-S6) |
|
Rear Shock |
RockShox Deluxe Select R, rebound adjust, 52.5x210mm (S1), 55x210mm (S2-S6) |
|
Drivetrain Compatibility |
SRAM SX Eagle, 12-speed |
|
Dropouts |
15x110mm thru-axle (F), 12x148mm thru-axle (R) |
|
Crank |
Praxis Forged/Custom Offset/ISIS Spindle Interface, 160mm |
|
Chain |
SRAM NX Eagle, 12-speed |
|
Rear Derailleur |
SRAM SX Eagle, 12-speed |
|
Shifters |
SRAM SX Eagle, 12-speed |
|
Cassette |
SRAM NX Eagle, 12-speed, 11-50T |
Components & Features
|
Specification |
Details |
|
Seating |
Body Geometry Bridge Saddle, steel rails |
|
Fuel Type |
Electric (Lithium-ion battery) |
|
Cargo Capacity |
SWAT CC steerer tube integrated tool with chain tool and link |
|
Wheels/Tyres |
Specialized 29, hookless alloy, 30mm inner width, tubeless ready, DT Swiss Industry spokes, 29x2.6" front (Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready), 27.5x2.6" rear (Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready), Standard Presta Valve tubes |
|
Wheel Size |
29" front, 27.5" rear |
|
Brakes |
SRAM Guide RE, 200mm rotor (S1-S3), 220mm rotor (S4-S6) (F), 200mm rotor (R) |
|
Brake Levers |
SRAM Guide RE, hydraulic |
|
Handlebar |
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width |
|
Stem |
Alloy Trail Stem, 35mm bar bore |
|
Headset |
Integrated, sealed cartridge bearing |
|
Saddle |
Body Geometry Bridge Saddle, steel rails |
|
Seatpost |
TranzX dropper, 34.9mm, 100mm (S1), 125mm (S2), 150mm (S3), 170mm (S4-S5), 200mm (S6) |
|
Seatpost Clamp |
Alloy, 38.6mm |
|
Grips |
Specialized Trail Grips |
|
Front Hub |
Specialized alloy front hub disc, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28h |
|
Rear Hub |
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h |
|
Rims |
Specialized 29, hookless alloy, 30mm inner width, tubeless ready |
|
Spokes |
DT Swiss Industry |
|
Exterior Features |
BB height adjust, S-Sizing, internal cable routing, SWAT CC steerer tube integrated tool |
|
Weight |
23.81 kg / 52 lb 7.9 oz (S4) |
|
Motor |
Specialized 2.2 Custom Rx Trail Tuned Motor, 90Nm torque, 565W power |
|
Battery |
Specialized M3-700, integrated battery, 700Wh |
|

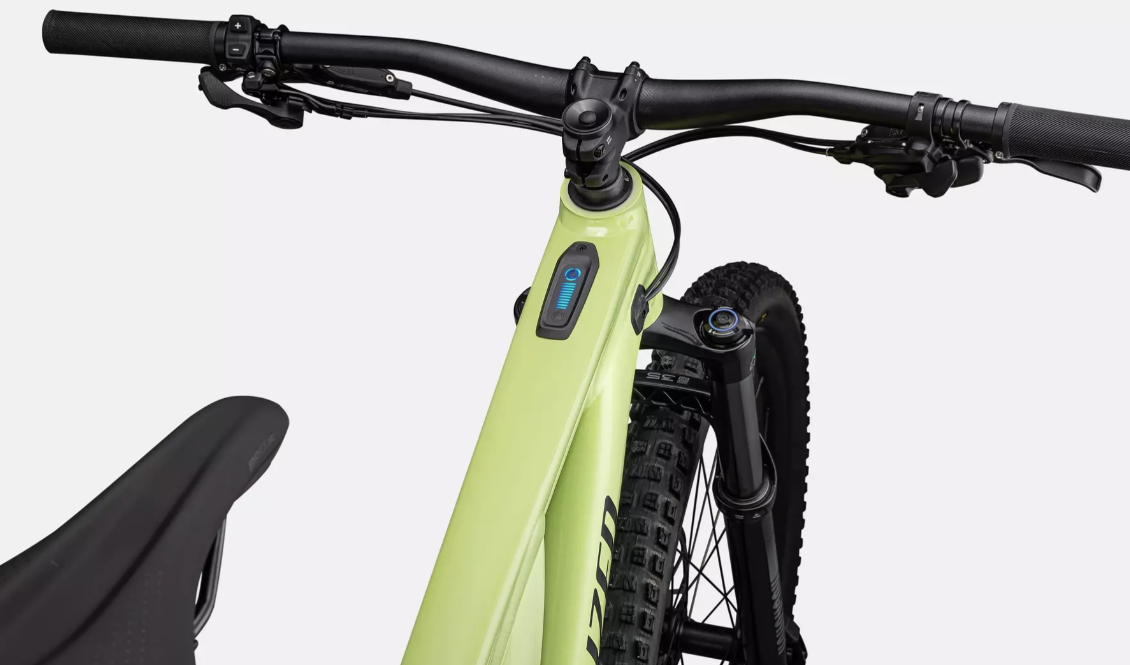

Controller |
Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, with handlebar remote |
|
Charger |
Custom charger, 42V4A with Rosenberger plug, 100-240V |
