Specification

Details

Model

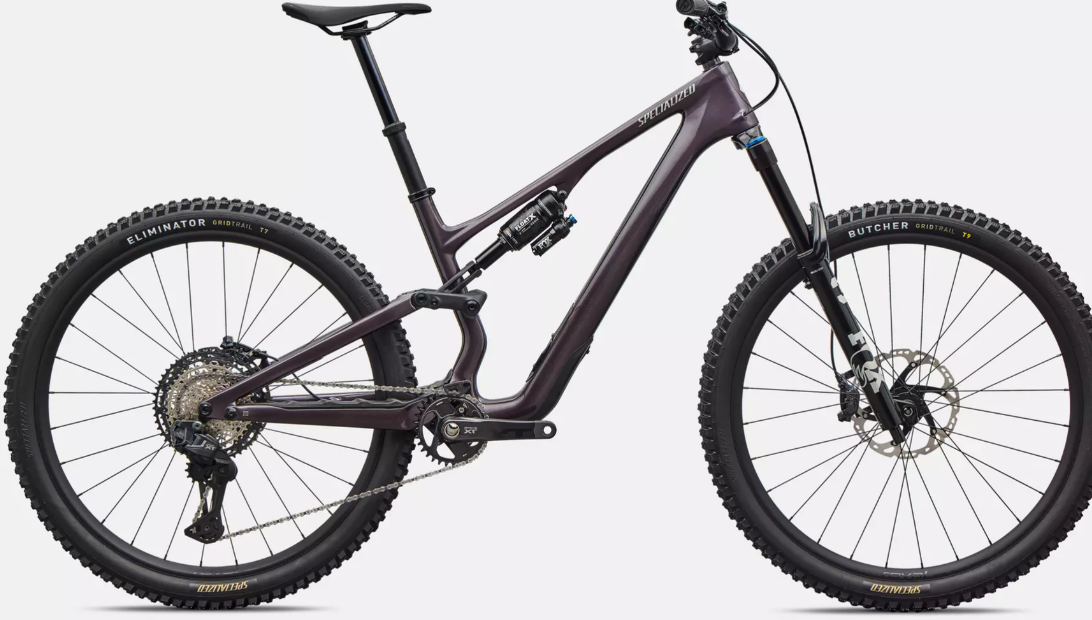

Stumpjumper 15 EVO Expert

Vehicle Category

Trail Bike

Application

Trail riding, all-mountain

Starting Price (2025)

$6,199.99 USD

Color Options

Gloss Nebula Metallic

Sizes

S1, S2, S3, S4, S5, S6

Wheel Options

29"/27.5", 29"/29"

Specification

Details

Frame

FACT 11m carbon chassis and rear-end, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal brake and dropper cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm travel

Fork

FOX FLOAT 36 Performance Elite, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm Kabolt axle, 44mm offset, 150mm travel (S1), 160mm travel (S2-S6)

Rear Shock

FOX FLOAT X Performance Elite with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSC adjustment, LSR adjustment, 210x55mm

Drivetrain Compatibility

Shimano XT Di2, 12-speed, electronic

Dropouts

15x110mm Kabolt axle (F), 12x148mm UDH compatible (R)

Crank

Shimano XT, 55mm chainline, 32T, 165mm (S1-S3), 170mm (S4-S6)

Chain

Shimano XT M8100, 12-speed with quick link

Rear Derailleur

Shimano XT Di2, 12-speed

Shifters

Shimano XT Di2

Cassette

Shimano XT M8200, 12-speed, 10-51T

Specification

Details

Seating

Bridge Comp, Hollow Cr-mo rails, 155mm (S1-S2), 143mm (S3-S6)

Cargo Capacity

SWAT 4.0 internal downtube storage

Wheels/Tyres

Roval Traverse 29" Rim (F), Roval Traverse Rim (R), hookless alloy, 30mm inner width, tubeless ready, DT Swiss 370 Hub, Sapim Force Spokes, 6-bolt, 29x2.4" front (Butcher, GRID TRAIL casing, GRIPTON® T9 compound, TLR), 27.5x2.4" (S1-S2) or 29x2.4" (S3-S6) rear (Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, TLR), Standard Presta Valve tubes

Wheel Size

29"/27.5" (S1-S2), 29"/29" (S3-S6)

Brakes

Shimano Deore XT, 4-piston caliper, hydraulic disc, metal pad with fin, 203mm rotor (F), 180mm rotor (S1-S2) or 203mm rotor (S3-S6) (R)

Brake Levers

Shimano Deore XT, hydraulic

Handlebar

Specialized, 6000 series alloy, 6-degree upsweep, 8-degree backsweep, 780mm width (S1-S2, 20mm rise), 800mm width (S3-S6, 50mm rise)

Stem

Alloy Trail Stem, 35mm bar bore

Headset

Integrated, sealed cartridge bearing

Saddle

Bridge Comp, Hollow Cr-mo rails, 155mm (S1-S2), 143mm (S3-S6)

Seatpost

PNW Loam Dropper, tool-less travel adjust, Range lever, 34.9mm, 125mm (S1), 150mm (S2), 175mm (S3), 200mm (S4-S5), 225mm (S6)

Seatpost Clamp

Alloy, 38.6mm

Grips

Deity Lockjaw Grips

Front Hub

DT Swiss 370, 15x110mm, 28h, 6-bolt, Sapim Force Spokes

Rear Hub

DT Swiss 370, 12x148mm, 28h, 6-bolt, Sapim Force Spokes

Rims

Roval Traverse 29" Rim (F), Roval Traverse Rim (R), hookless alloy, 30mm inner width, tubeless ready

Spokes

Sapim Force

Exterior Features

SWAT 4.0 internal downtube storage, adjustable head tube angle, GENIE Shock Tech, mixed wheel setup (29"/27.5" for S1-S2, 29"/29" for S3-S6)

Weight

14.48 kg / 31 lb 14.8 oz (S4)
