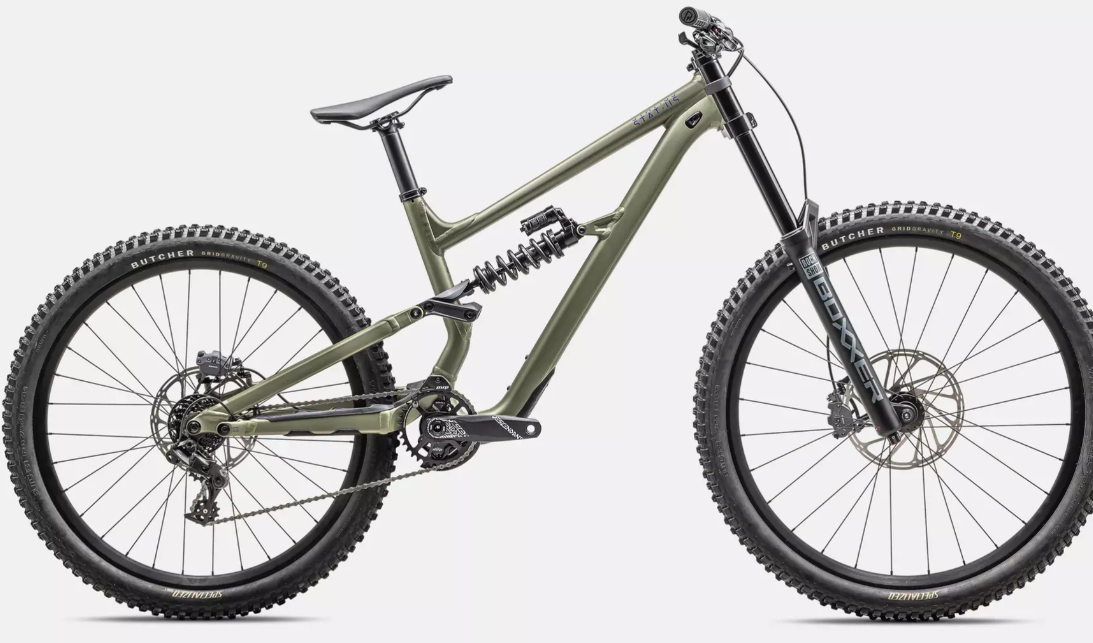

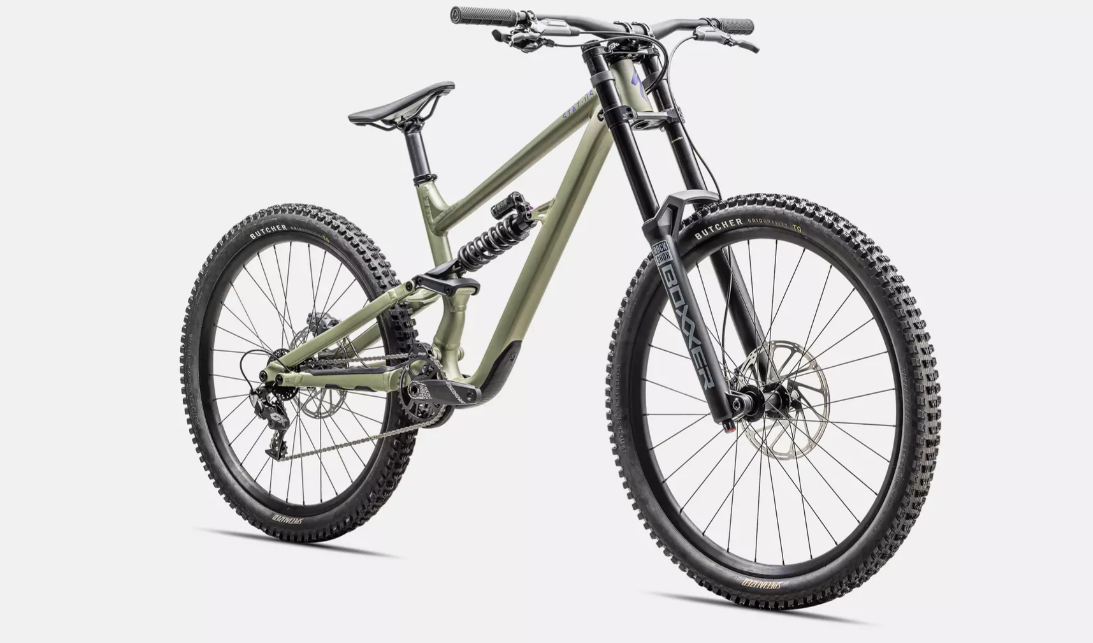

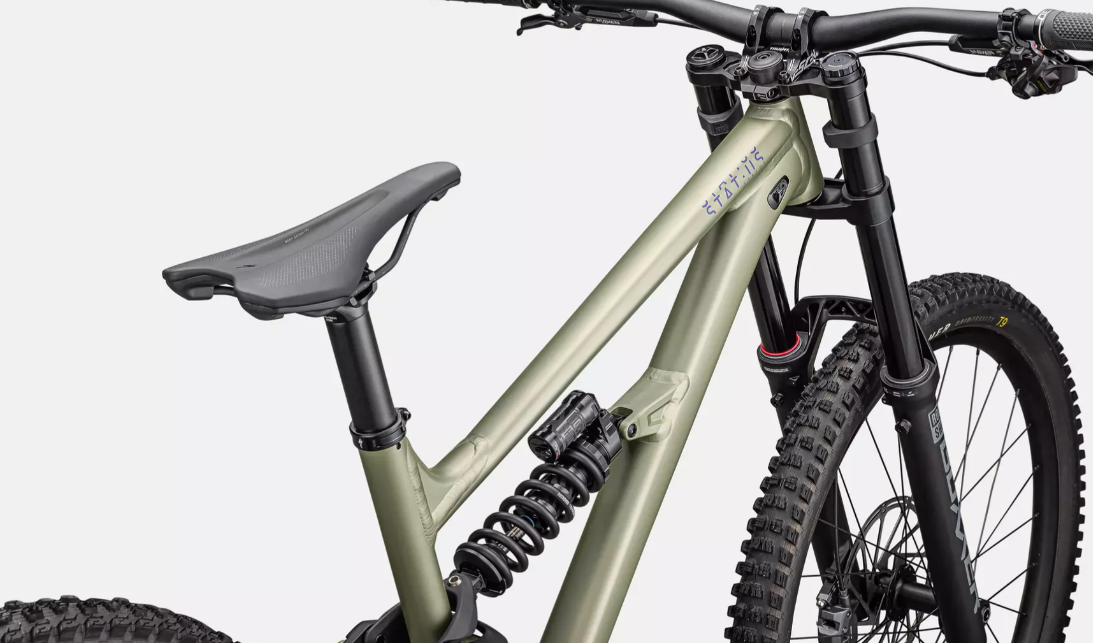

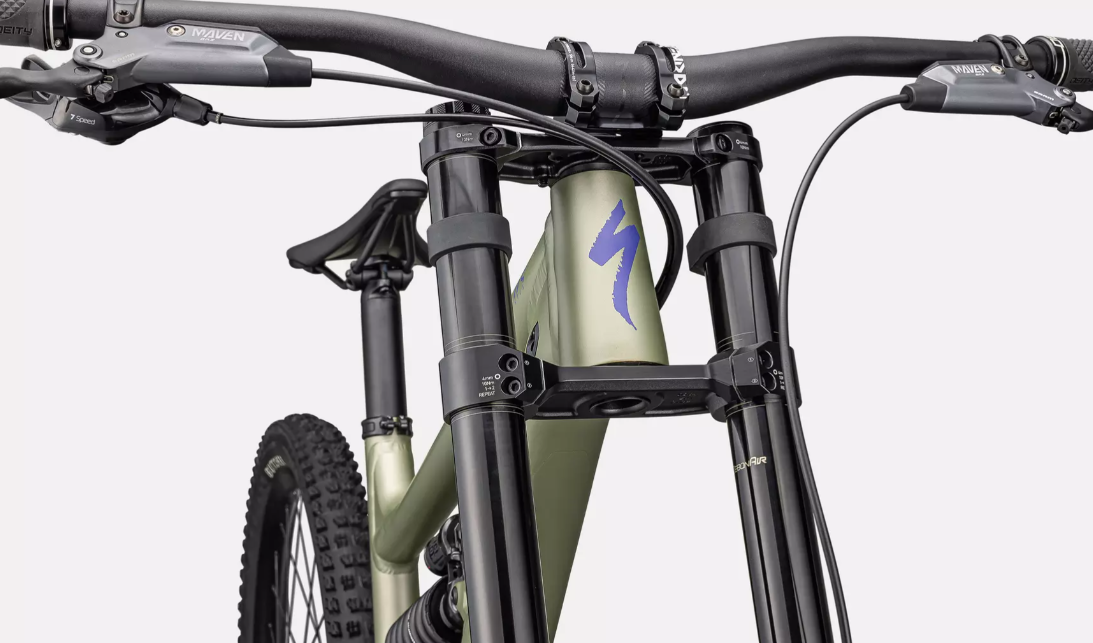

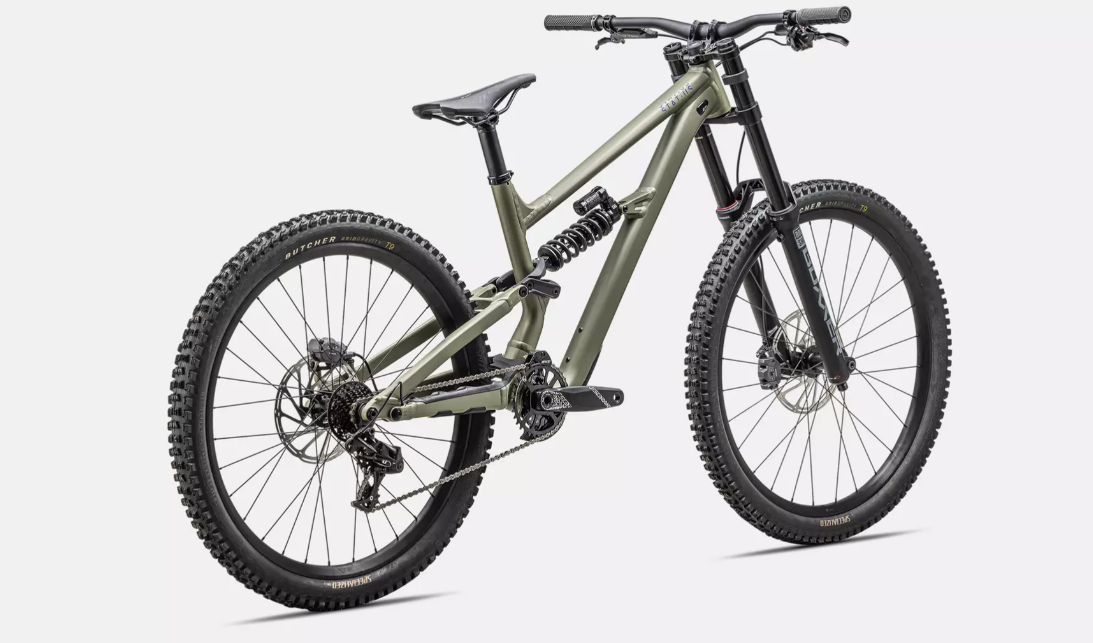

2025 Specialized STATUS 2 170 DH Spruce – Downhill Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
STATUS 2 170 DH |
|
Vehicle Category |
Downhill Mountain Bike |
|
Application |
Downhill racing, bike park, aggressive trail riding |
|
Starting Price (2025) |
$4,499.99 USD |
|
Color Options |
Satin Metallic Spruce / Purple Haze |
|
Sizes |
S2, S3, S4, S5 |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
M5 Alloy chassis and rear-end, Trail Geometry, horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm travel |
|
Fork |
RockShox BoXXer 29, Charger 3 RC damper, adjustable low-speed compression, adjustable rebound, 20x110mm thru-axle, 44mm offset, 180mm travel |
|
Rear Shock |
RockShox Super Deluxe Select Coil, external rebound adjust, hydraulic bottom out, 230x62.5mm, spring rates: S2: 400lbs, S3: 450lbs, S4: 500lbs, S5: 550lbs |
|
Drivetrain Compatibility |
SRAM GX DH, 7-speed |
|
Dropouts |
20x110mm (F), 12x148mm UDH compatible (R) |
|
Crank |
SRAM DESCENDANT DH, DUB, alloy, Direct, 34T ring, 55mm chainline, 165mm |
|
Chain |
SRAM PC1110 with Powerlink™, 7-speed |
|
Rear Derailleur |
SRAM GX DH, 7-speed |
|
Shifters |
SRAM GX DH, trigger, 7-speed |
|
Cassette |
SRAM GX DH, 7-speed, 11-24t |
Components & Features
|
Specification |
Details |
|
Seating |
Body Geometry Henge DH, hollow Cr-mo rails, 130mm |
|
Wheels/Tyres |
Front: Roval Alloy DH, 28mm inner width, Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"; Rear: Roval Alloy DH, 28mm inner width, Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3" |
|
Wheel Size |
Mixed: 29" (F), 27.5" (R) |
|
Brakes |
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm (F), 220mm (R) |
|
Brake Levers |
SRAM Maven Bronze |
|
Handlebar |
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm (S2), 800mm (S3-S5) |
|
Stem |
Descendant 35mm Direct Mount Stem, 50mm length |
|
Saddle |
Body Geometry Henge DH, hollow Cr-mo rails, 130mm |
|
Seatpost |
Specialized 2-bolt head, forged alloy, 5mm offset, micro-adjust, 34.9mm |
|
Seatpost Clamp |
Alloy, 38.6mm |
|
Grips |
Deity Lockjaw |
|
Front Hub |
Alloy, sealed cartridge bearings, 20x110mm, 28h |
|
Rear Hub |
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h |
|
Rims |
Roval Alloy DH, 28mm inner width, tubeless ready |
|
Spokes |
DT Swiss Industry |
|
Exterior Features |
Trail Geometry, horst pivot geo adjustment, lifetime replacement suspension bearings |
|
Weight |
17.18 kg / 37 lb, 14 oz (size S3) |
