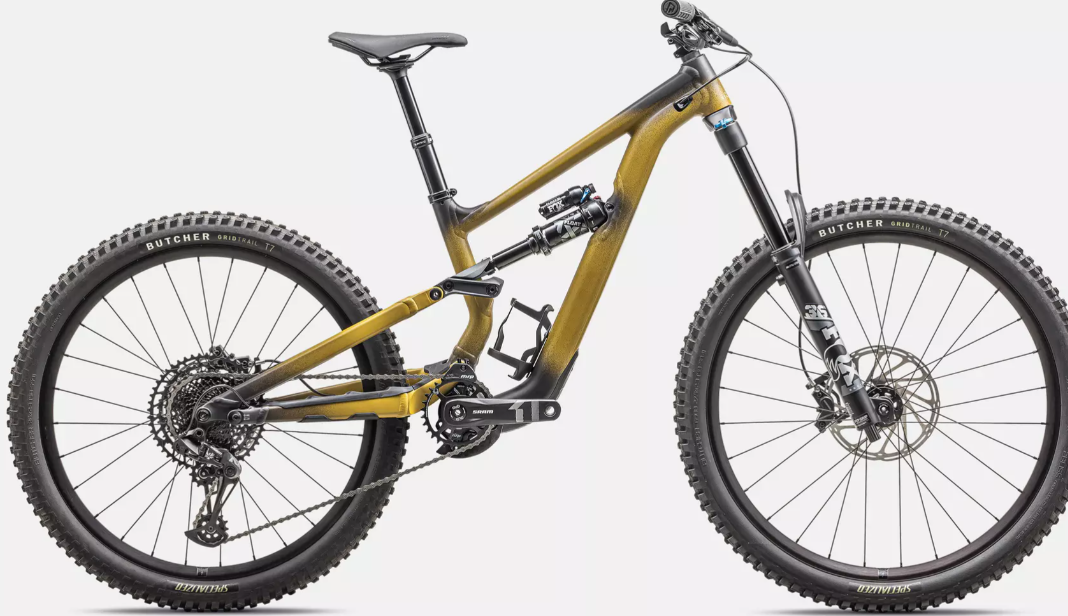

2025 Specialized STATUS 2 170 DH – Trail Bike
Specifications
|
Specification |
Details |
|
Model |
STATUS 2 170 DH |
|
Vehicle Category |
Trail Bike |
|
Application |
Downhill, trail riding, bike park |
|
Starting Price (2025) |
$4,499.99 USD |
|
Color Options |
Gloss Nebula Metallic |
|
Sizes |
S2, S3, S4, S5 |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
M5 Alloy chassis and rear-end, Trail Geometry, horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm travel |
|
Fork |
RockShox BoXXer 29, Charger 3 RC damper, adjustable low-speed compression, adjustable rebound, 20x110mm thru-axle, 44mm offset, 180mm travel |
|
Rear Shock |
RockShox Vivid Coil, external rebound adjust, hydraulic bottom out, 230x62.5mm |
|
Drivetrain Compatibility |
SRAM GX DH, 7-speed |
|
Dropouts |
20x110mm thru-axle (F), 12x148mm UDH compatible (R) |
|
Crank |
SRAM DESCENDANT DH, DUB, alloy, Direct, 34T ring, 55mm chainline, 165mm |
|
Chain |
SRAM PC1110 with Powerlink™ |
|
Rear Derailleur |
SRAM GX DH, 7-speed, trigger |
|
Shifters |
SRAM GX DH, trigger, 7-speed |
|
Cassette |
SRAM GX DH, 7-speed, 11-25t |
Components & Features
|
Specification |
Details |
|
Seating |
Body Geometry Henge DH, hollow Cr-mo rails, 130mm |
|
Wheels/Tyres |
Roval 29"/27.5" Alloy DH, 28mm inner width, tubeless ready, DT Swiss Elemental spokes, alloy hubs, 29x2.4" front (Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR), 27.5x2.4" rear (Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR), Standard Presta Valve tubes |
|
Wheel Size |
29" front, 27.5" rear |
|
Brakes |
SRAM Maven Bronze, 4-piston caliper, hydraulic disc |
|
Brake Levers |
SRAM Maven Bronze, hydraulic |
|
Handlebar |
Specialized, 6000 series alloy, 6-degree upsweep, 8-degree backsweep, 780mm width (S2, 20mm rise), 800mm width (S3-S5, 50mm rise) |
|
Stem |
Descendant 35mm Direct Mount Stem, 50mm length |
|
Headset |
Integrated, sealed cartridge bearing |
|
Saddle |
Body Geometry Henge DH, hollow Cr-mo rails, 130mm |
|
Seatpost |
Specialized 2-bolt head, forged alloy, 5mm offset, micro-adjust, 34.9mm |
|
Seatpost Clamp |
Alloy, 38.6mm |
|
Grips |
Deity Lockjaw Grips |
|
Front Hub |
Alloy, sealed cartridge bearings, 20x110mm, 28h |
|
Rear Hub |
Specialized alloy rear hub disc, sealed cartridge bearings, 6-bolt, 12x148mm thru-axle, 32h |
|
Rims |
Roval 29"/27.5" Alloy DH, 28mm inner width, tubeless ready |
|
Spokes |
DT Swiss Elemental |
|
Exterior Features |
Horst pivot geo adjustment, external rear brake option, mixed wheel setup (29" front, 27.5" rear) |
|
Weight |
17.19 kg / 37 lb 14.4 oz (S3) |
