Specification

Details

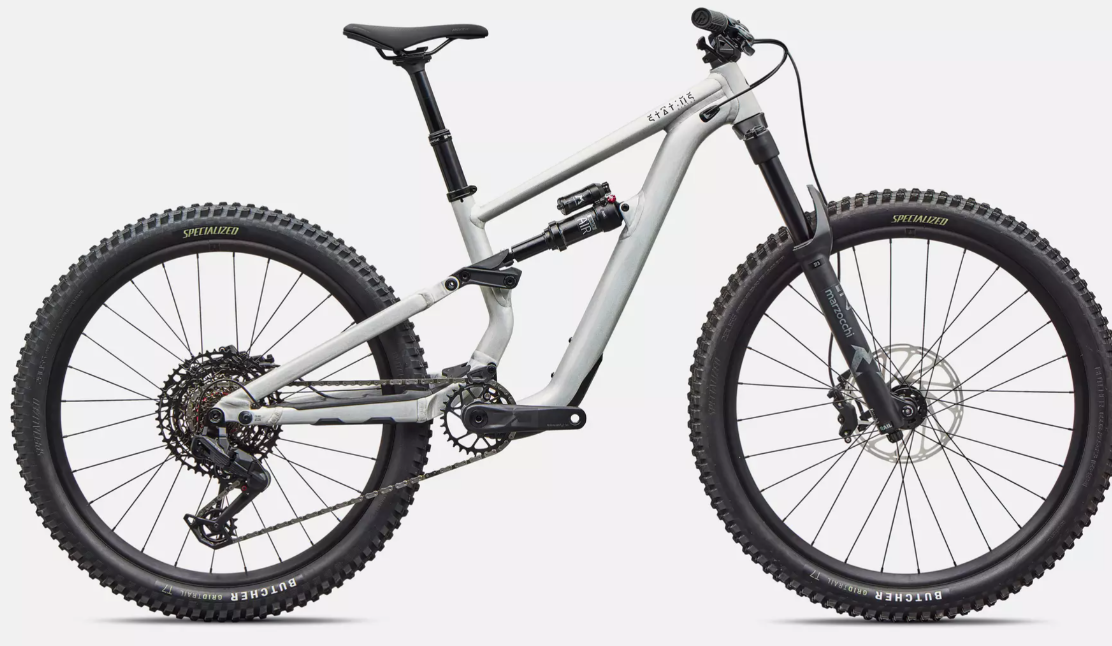

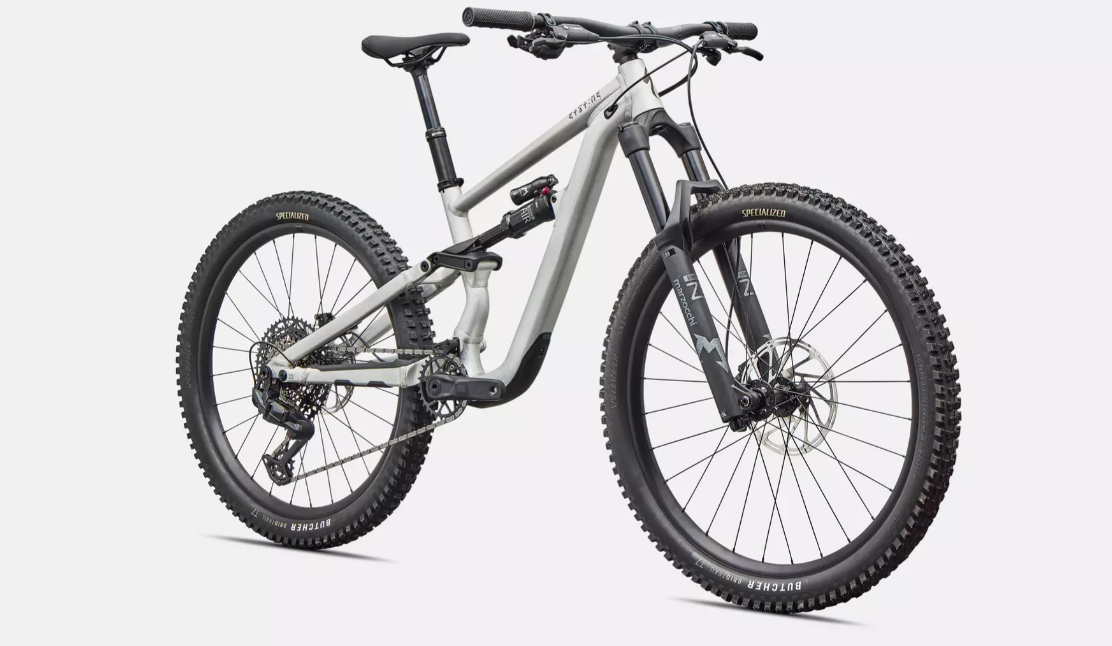

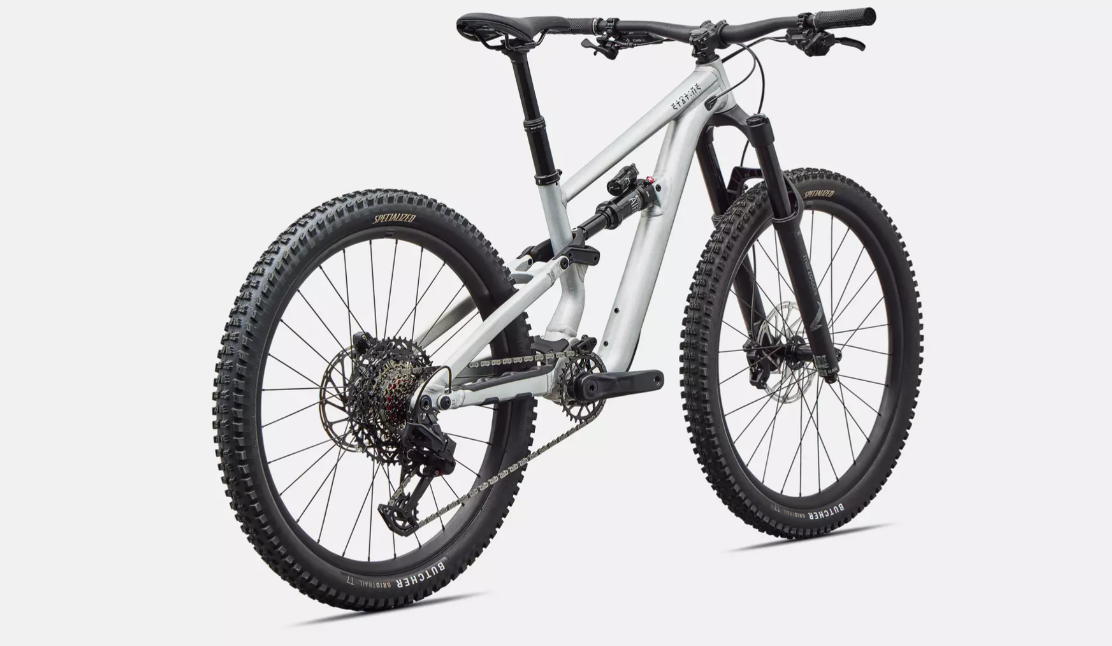

Model

STATUS 2 140 ZERO

Vehicle Category

Trail Bike

Application

Trail riding, bike park, designed for smaller riders

Starting Price (2025)

$2,999.99 USD

Color Options

Satin Aluminum

Sizes

S0

Specification

Details

Frame

M5 Alloy chassis and rear-end, Trail Geometry for 27.5" front and 26" rear wheels, horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 140mm travel

Fork

Marzocchi Z1, Rail Damper, two position Sweep adjustment, 15x110mm Kabolt axle, 37mm offset, 140mm travel

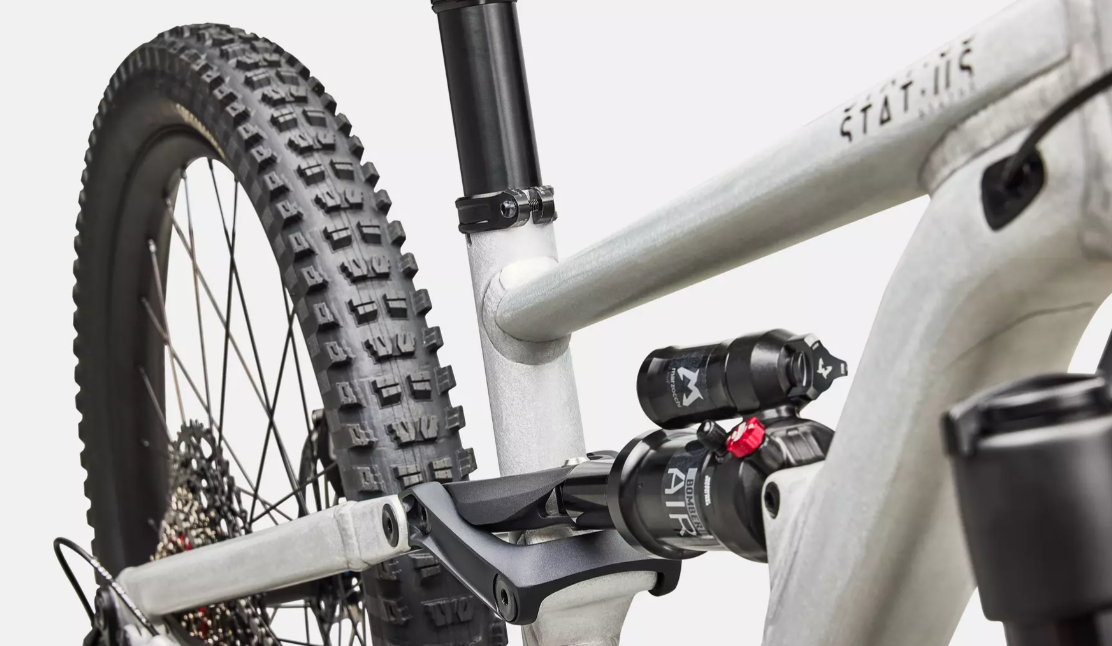

Rear Shock

Marzocchi Bomber Air, Ride Dynamics Trail Tune, 2-position non-indexed compression sweep, with LSR adjustment, 210x50mm

Drivetrain Compatibility

SRAM Eagle 70 T-Type, 12-speed

Dropouts

15x110mm Kabolt axle (F), 12x148mm UDH compatible (R)

Crank

SRAM Eagle 70, 155mm, 55mm chainline, 30T

Chain

SRAM 70 Transmission Chain

Rear Derailleur

SRAM Eagle 70 T-Type

Shifters

SRAM Eagle 70

Cassette

SRAM 1270 Transmission Cassette, 12-speed, 10-52T

Specification

Details

Seating

Bridge Saddle, 130mm

Wheels/Tyres

Roval Traverse 27.5, hookless alloy, 30mm inner width, tubeless ready, DT Swiss Elemental spokes, 27.5x2.3" front (Butcher, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready), 26x2.3" rear (Butcher, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready), Standard Presta valve tubes

Wheel Size

27.5" front, 26" rear

Brakes

SRAM DD8 Stealth, hydraulic disc

Brake Levers

SRAM DD8 Stealth, hydraulic

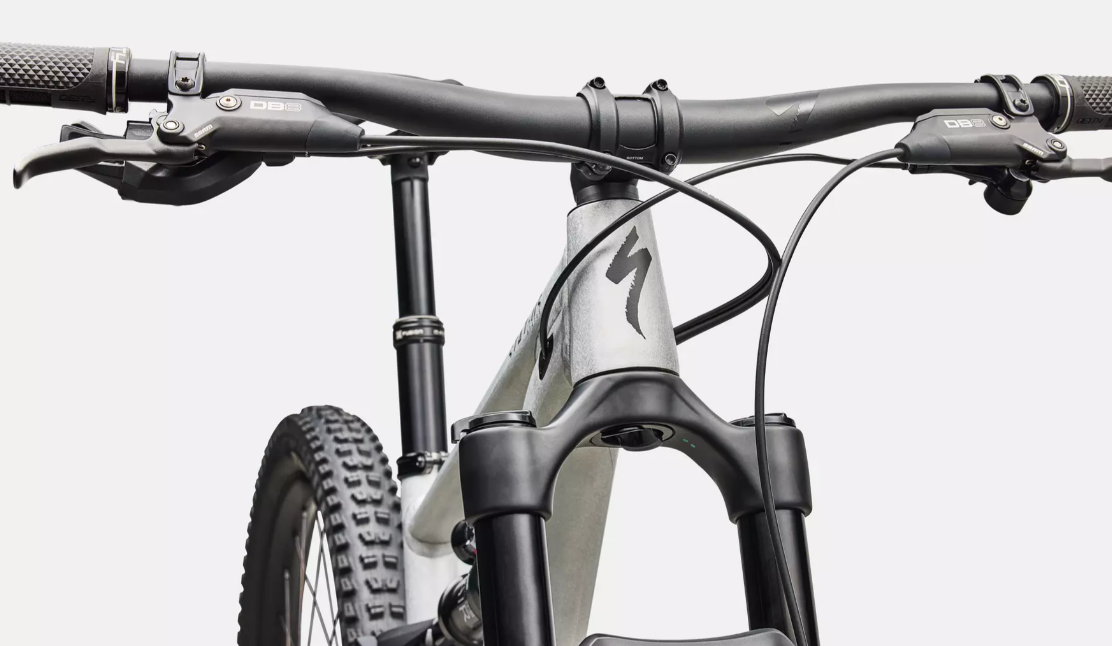

Handlebar

Specialized Alloy, 20mm rise, 35mm

Stem

Alloy Trail Stem, 35mm bar bore

Headset

Integrated, sealed cartridge bearing

Saddle

Bridge Saddle, 130mm

Seatpost

X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9mm, 100mm

Seatpost Clamp

Alloy, 38.6mm

Grips

Deity Lockjaw Grips

Front Hub

Specialized alloy front hub disc, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28h

Rear Hub

Specialized alloy rear hub disc, sealed cartridge bearings, 6-bolt, 12x148mm thru-axle, 28h, HD Steel Fhb

Rims

Roval Traverse 27.5, hookless alloy, 30mm inner width, tubeless ready

Spokes

DT Swiss Elemental

Pedals

Test ride pedals provided by Specialized

Exterior Features

Horst pivot geo adjustment, external rear brake option, mixed wheel setup (27.5" front, 26" rear)

Weight

15.34 kg / 33 lb 13.1 oz (S0)
