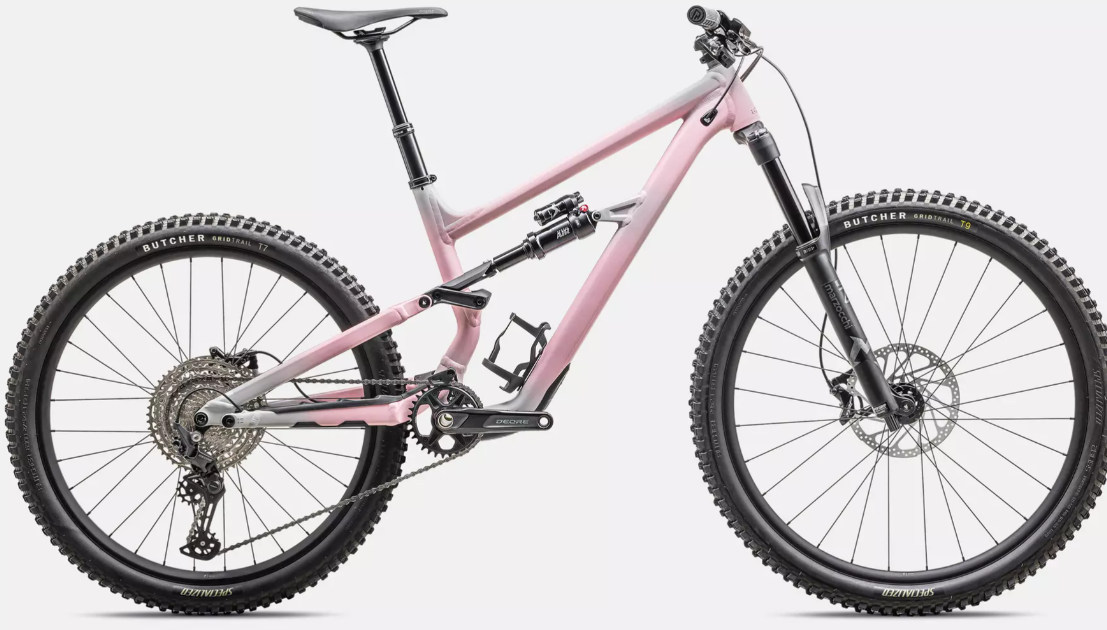

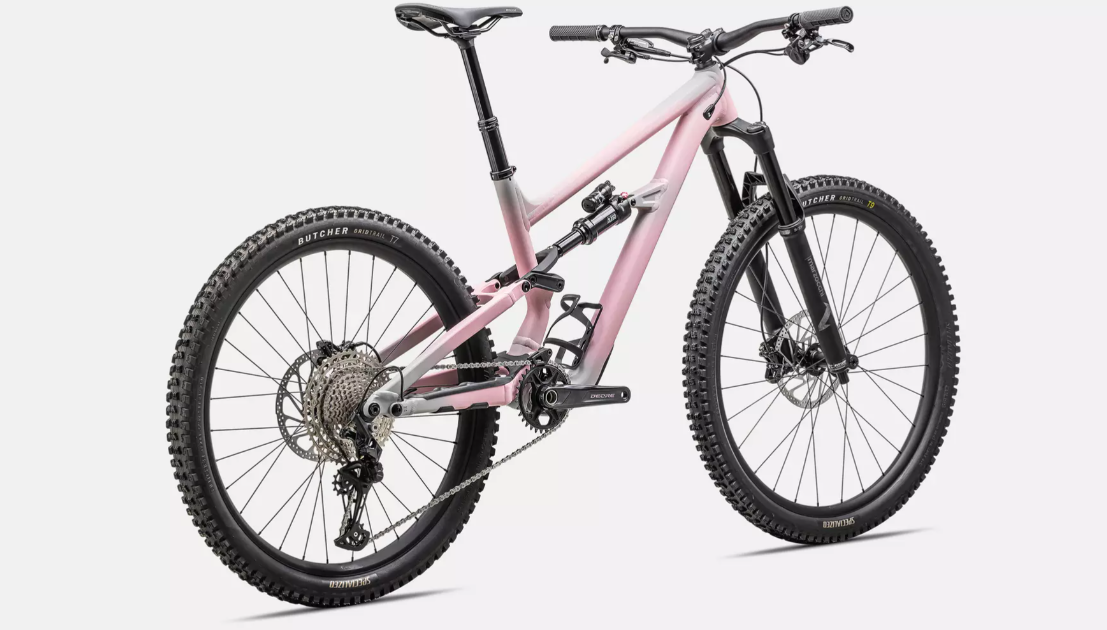

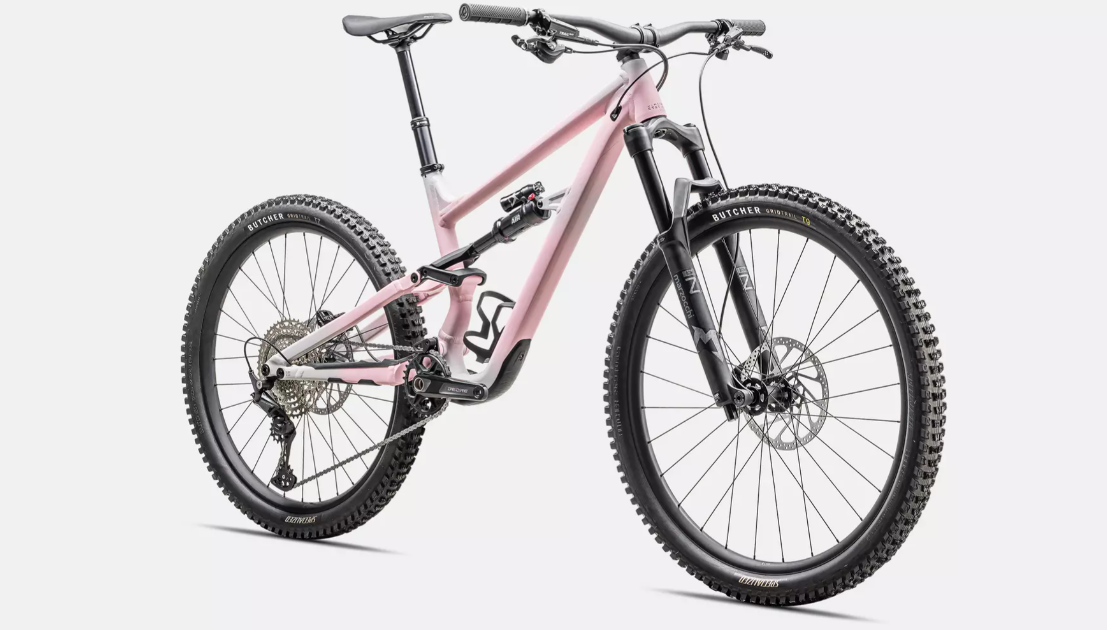

2025 Specialized STATUS 2 140 – Trail Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
STATUS 2 140 |
|
Vehicle Category |
Trail Mountain Bike |
|
Application |
Trail riding, bike park, street |
|
Starting Price (2025) |
$2,499.99 USD |
|
Color Options |
Satin Cool Grey / Desert Rose / Black |
|
Sizes |
S1, S2, S3, S4, S5 |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
M5 Alloy chassis and rear-end, Trail Geometry, horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 140mm travel |
|
Fork |
Marzocchi Z1, GRIP damper, two position Sweep adjustment, 15x110mm Kabolt axle, 44mm offset, 140mm travel |
|
Rear Shock |

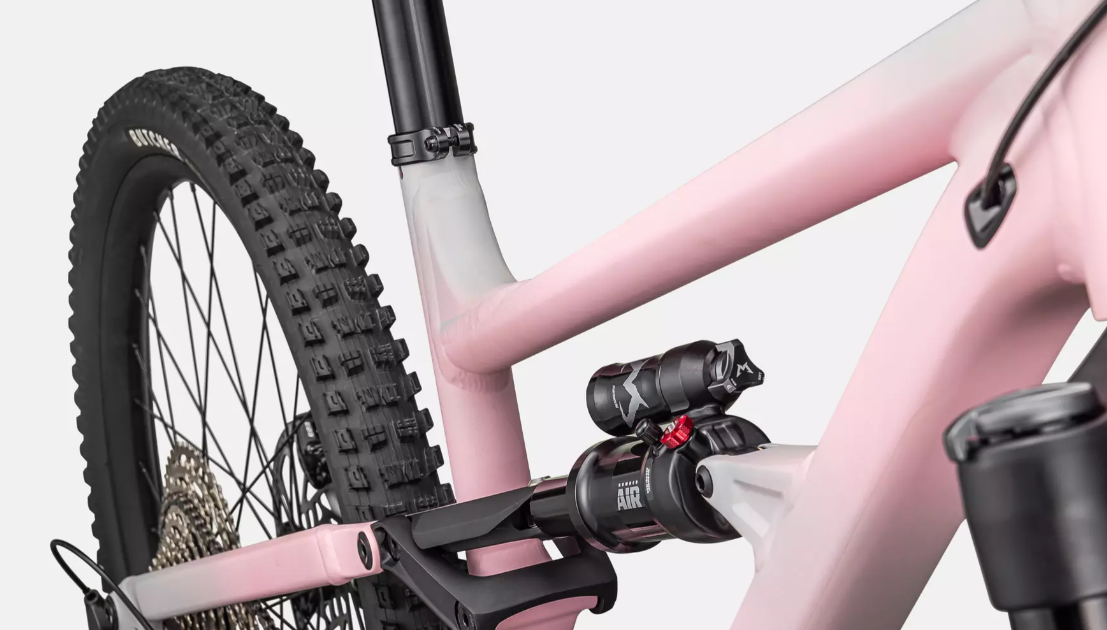

Marzocchi Bomber Air, Ride Dynamics Trail Tune, 2-position non-indexed compression sweep, with LSR adjustment, 210x50mm (S1), 210x52.5mm (S2-S5) |
|
Drivetrain Compatibility |
Shimano Deore M6100, 12-speed |
|
Dropouts |
15x110mm (F), 12x148mm UDH compatible (R) |
|
Crank |
Shimano Deore M6120, 32T ring, 55mm chainline, 165mm (S1), 170mm (S2-S5) |
|
Chain |
Shimano Deore M6100, 12-speed |
|
Rear Derailleur |
Shimano Deore M6100, 12-speed, Shadow Plus |
|
Shifters |
Shimano Deore M6100, I-Spec EV, 12-speed |
|
Cassette |
Shimano Deore M6100, 12-speed, 10-51t |
Components & Features
|
Specification |
Details |
|
Seating |
Bridge Comp, Hollow Cr-mo rails, 143mm |
|
Wheels/Tyres |
Front: Specialized, hookless alloy, 30mm inner width, Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"; Rear: Specialized, hookless alloy, 30mm inner width, Butcher, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.3" |
|
Wheel Size |
Mixed: 29" (F), 27.5" (R) |
|
Brakes |
TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm (F), 203mm (R) |
|
Brake Levers |
TRP Trail EVO |
|

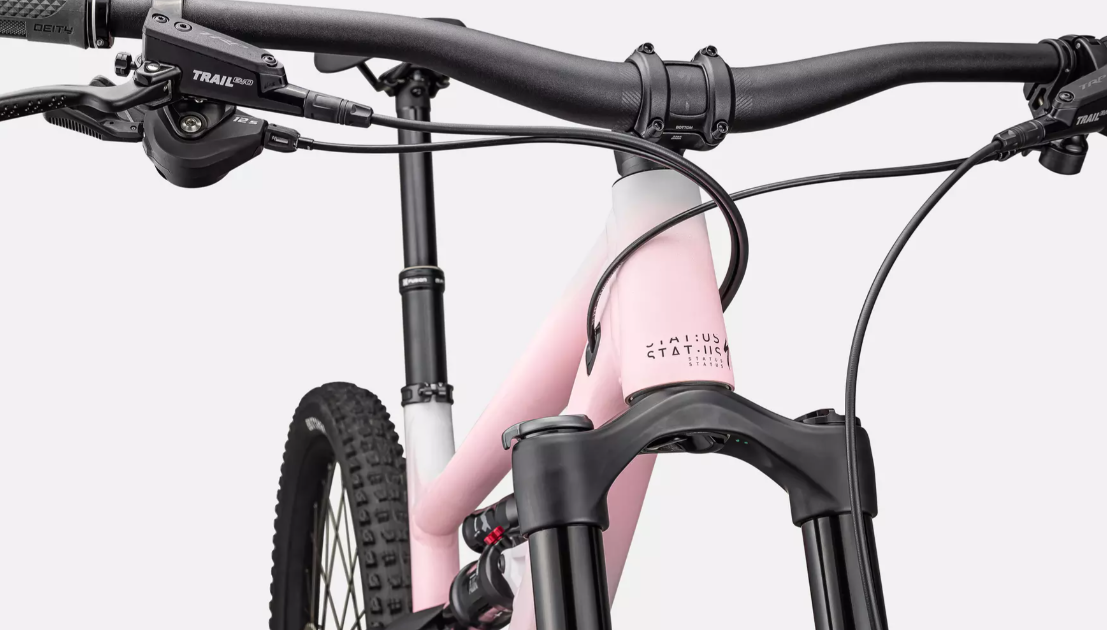

Handlebar |
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm (S1), 800mm (S2-S5) |
|
Stem |
Alloy Trail Stem, 35mm bar bore |
|
Saddle |
Bridge Comp, Hollow Cr-mo rails, 143mm |
|
Seatpost |
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9mm, 125mm (S1), 150mm (S2), 170mm (S3-S4), 190mm (S5) |
|
Seatpost Clamp |
Alloy, 38.6mm |
|
Grips |
Deity Knuckleduster |
|
Front Hub |
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h |
|
Rear Hub |
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h |
|
Rims |
Specialized, hookless alloy, 30mm inner width, tubeless ready |
|
Spokes |
DT Swiss Industry |
|
Exterior Features |
Trail Geometry, horst pivot geo adjustment, lifetime replacement suspension bearings |
|
Weight |
15.29 kg / 33 lb, 11.3 oz (size S3) |
