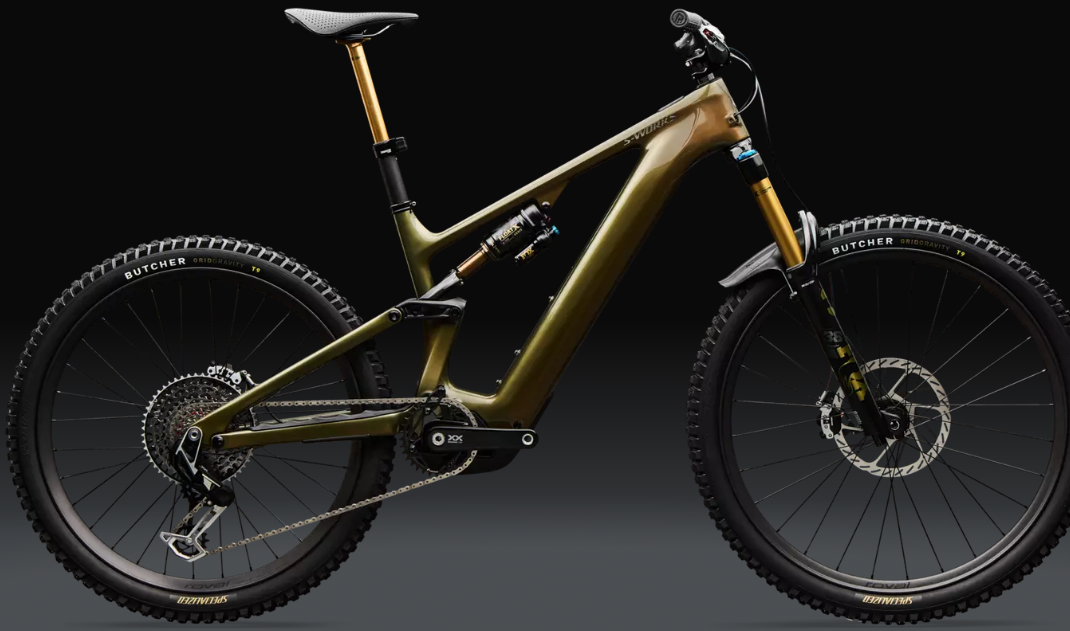

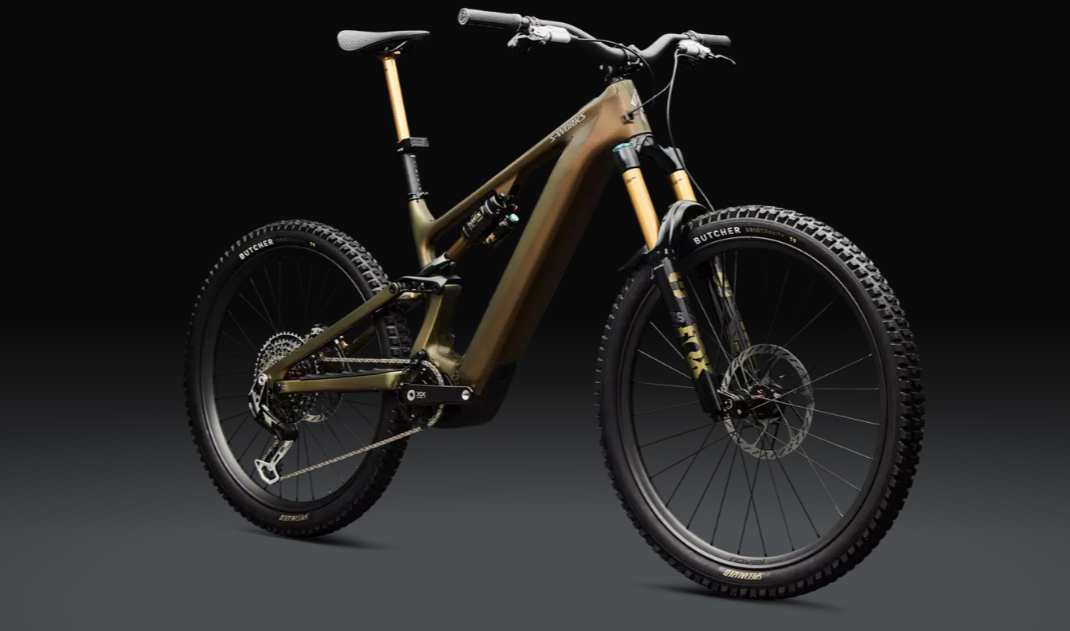

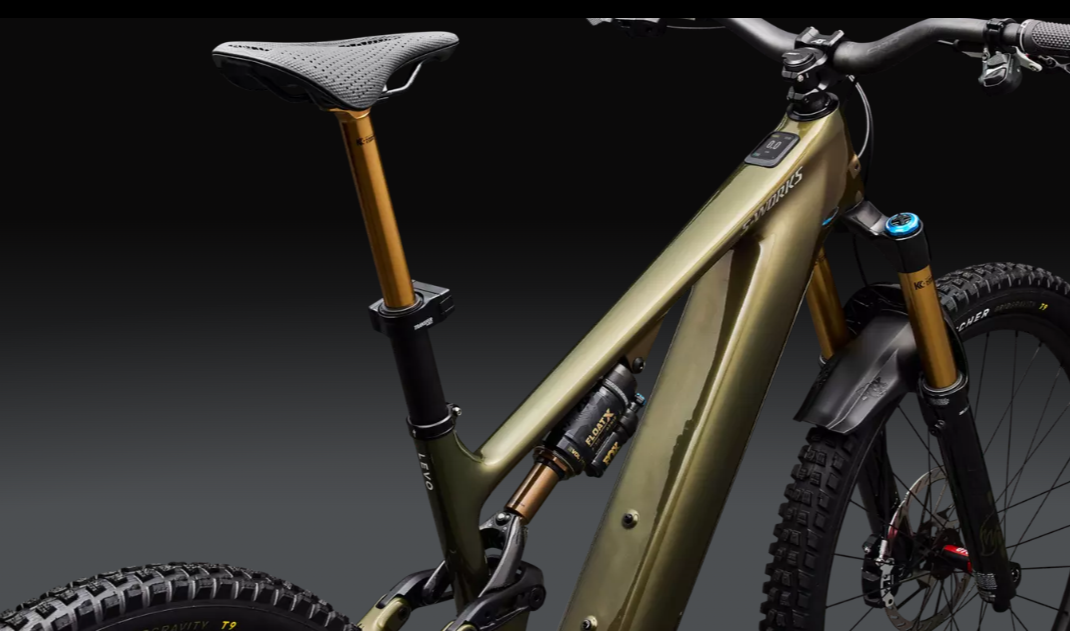

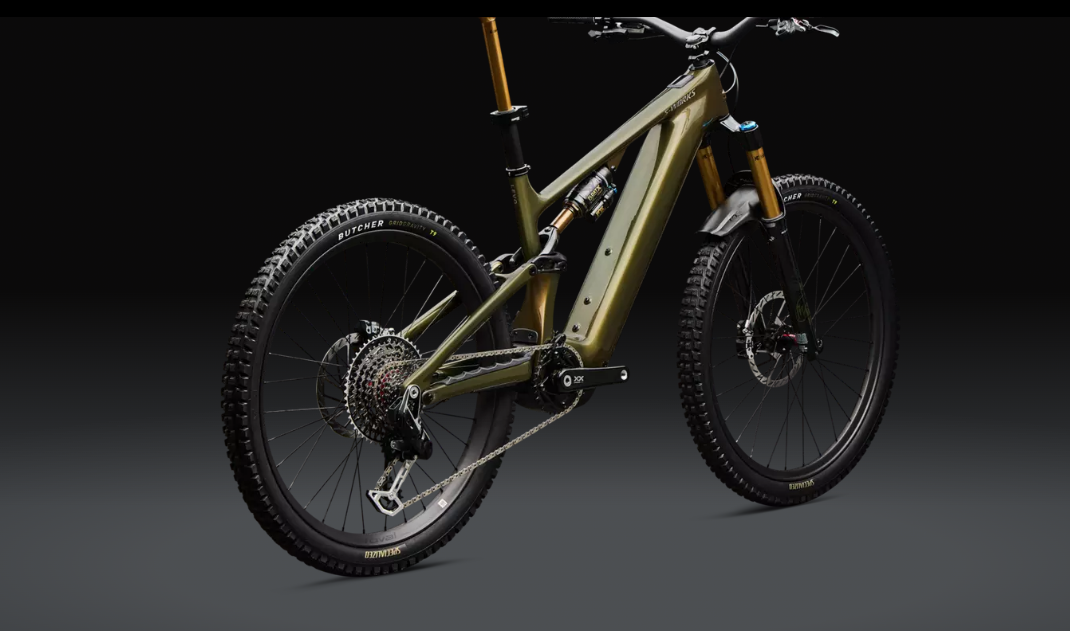

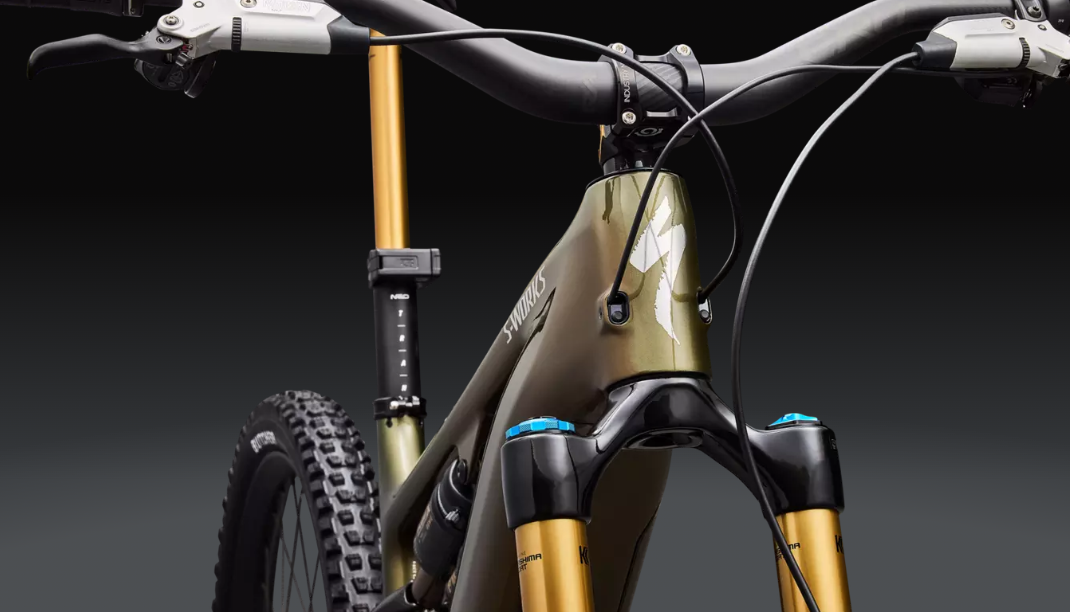

2025 Specialized S-Works Turbo Levo 4 LTD – Electric Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
S-Works Turbo Levo 4 LTD |
|
Vehicle Category |
Electric Mountain Bike |
|
Application |
Full-power E-MTB trail riding, technical climbs, all-mountain |
|
Starting Price (2025) |
$19,999.99 USD |
|
Color Options |
Astral Blue |
|
Sizes |
S2, S3, S4, S5, S6 |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
FACT 11m Carbon with carbon shock extension, 150mm travel, SWAT storage, side entry battery, adjustable geometry, fork travel up to 180mm |
|
Fork |
FOX Factory Podium, GRIP X2 damper, HS and LS rebound and compression adjustment, 160mm travel, 20x110mm axle, 44mm offset |
|
Rear Shock |
FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever with 3-setting Open mode tuning range, LSR adjustment, 210x55mm |
|
Drivetrain Compatibility |
SRAM XX Eagle T-Type AXS, 1x12-speed, electronic |
|
Dropouts |
20x110mm axle (F), 12x148mm axle (R) |
|
Crank |
Cane Creek Electric Wings printed titanium, 160mm length |
|
Chain |
SRAM XX Eagle Transmission Flattop Chain |
|
Rear Derailleur |
SRAM XX Eagle Transmission Derailleur, 12-speed, electronic |
|
Shifters |
SRAM AXS POD Ultimate Controller with Discrete clamp, 12-speed, electronic |
|
Cassette |
SRAM XX Eagle Transmission Cassette, 12-speed, 10-52T |
Components & Features
|
Specification |
Details |
|
Seating |
Specialized Power Pro Mirror with hollow Ti rails |
|
Fuel Type |
Electric (Specialized 3.1 S-Works motor) |
|
Cargo Capacity |
SWAT internal downtube storage, weather-resistant |
|
Wheels/Tyres |
Traverse HD I9 Hydra 2, 29x2.4" front (Butcher, GRID GRAVITY, GRIPTON T9, TLR), 27.5x2.4" rear (Butcher, GRID GRAVITY, GRIPTON T9, TLR), Presta valve tubes |
|
Wheel Size |
29" front, 27.5" rear |
|
Brakes |
Trickstuff Maxima, 4-piston, 223mm rotor (F, R) |
|
Brake Levers |
Trickstuff Maxima, hydraulic |
|
Handlebar |
Race Face Era Carbon, 35mm clamp, 8-degree backsweep, 5-degree upsweep, 800mm width, 40mm rise (S1/S2), 55mm rise (S3-S6) |
|
Stem |
Industry 9 Mountain, 35mm clamp, 40mm length |
|
Headset |
Integrated, sealed cartridge bearing |
|
Saddle |
Specialized Power Pro Mirror with hollow Ti rails |
|
Seatpost |
FOX Transfer NEO Factory, 34.9mm, 125mm travel (S2), 175mm travel (S3), 200mm travel (S4-S6) |
|
Seatpost Clamp |
Alloy, 38.6mm |
|
Grips |
Deity Lockjaw |
|
Front Hub |
Traverse HD I9 Hydra 2, 20x110mm axle, 28h |
|
Rear Hub |
Traverse HD I9 Hydra 2, 12x148mm axle, 32h, XD freehub body |
|
Rims |
Traverse HD I9 Hydra 2, carbon, 30mm inner width, 29" front, 27.5" rear |
|
Spokes |
DT Swiss Competition Race |
|
Exterior Features |
SWAT internal downtube storage, adjustable geometry, lifetime replacement suspension bearings, mixed wheel setup |
|
Weight |
24.0 kg / 52 lb 14.6 oz (S4) |
|
Motor |
Specialized 3.1 S-Works motor, 111Nm torque, 720W power, 25kph max assist (Class 1) |
|
Battery |
840Wh, side entry, includes 280Wh range extender, up to 1,120Wh total capacity |
|
Controller |
Mastermind TCU, 2.2" high-resolution screen, customizable via Specialized app, Bluetooth, Apple Find My integration, Micro Tune, Smart Control |
|
Charger |
Specialized 12A smart charger, Standard/Fast/Eco/80% charge modes, 0-80% in under 1 hour |
