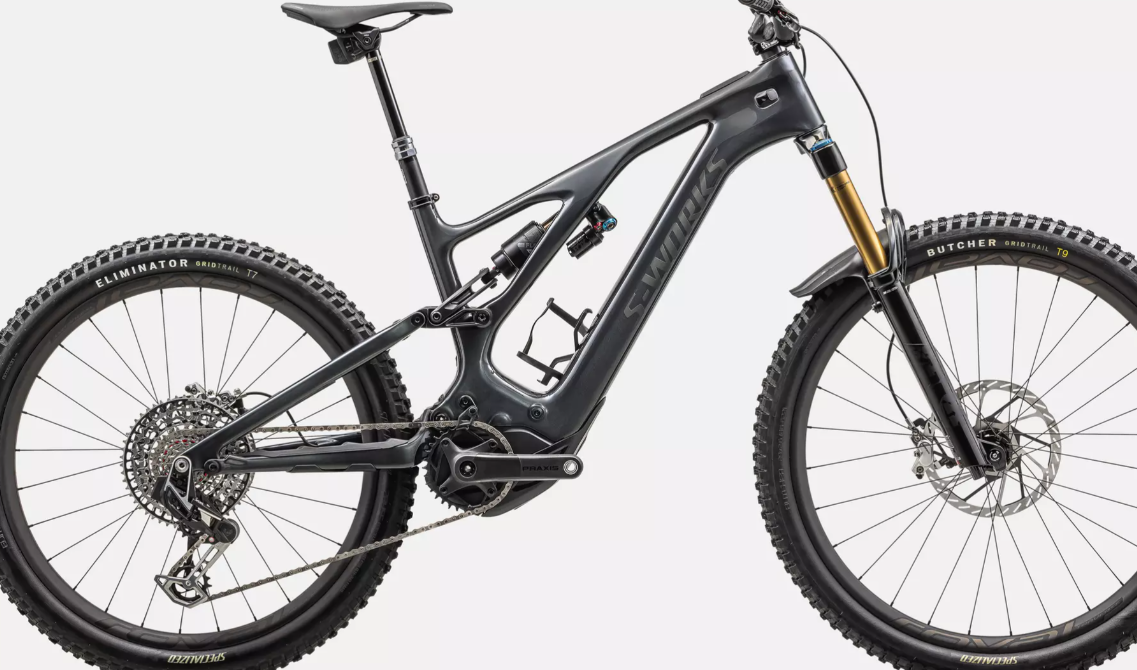

2025 Specialized S-Works Turbo Levo 3 – Electric Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
S-Works Turbo Levo 3 |
|
Vehicle Category |
Electric Mountain Bike |
|
Application |
Trail riding, enduro, technical cross-country |
|
Starting Price (2025) |
$10,499.99–$13,999.99 USD |
|
Color Options |
Gloss Black Liquid Metal / Satin Black Chrome Foil |
|
Sizes |
S2, S3, S4, S5, S6 |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot |
|
Fork |
Fox 38 Factory, Grip 2 Damper, 29", 160mm Travel, Kashima, 44mm Offset |
|
Rear Shock |
Fox Float X2 Factory, Kashima, 210x55mm |
|
Drivetrain Compatibility |
SRAM XX Eagle Transmission, 12-speed |
|
Dropouts |
15x110mm (F), 12x148mm (R) |
|
Crank |
Praxis Carbon/Custom Offset/ISIS Spindle Interface, 160mm |
|
Chain |
SRAM XX Eagle Transmission Flattop Chain |
|
Rear Derailleur |
SRAM XX Eagle Transmission Derailleur |
|
Shifters |
SRAM AXS POD Controller |
|
Cassette |
SRAM XX Eagle Transmission Cassette, 12-speed, 10-52t |
Components & Features
|
Specification |
Details |
|
Seating |
Bridge, 155/143mm, Hollow Ti-rails |
|
Fuel Type |
Electric (Lithium-ion battery) |
|
Cargo Capacity |
SWAT CC steerer tube integrated tool with chain tool and link |
|
Wheels/Tyres |
Front: Roval Traverse SL 29, Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"; Rear: Roval Traverse SL 27.5, 148mm spacing, XD freehub body, Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6" |
|
Brakes |
SRAM Code Stealth Ultimate, 4-piston caliper, hydraulic disc, 220mm rotor (F), 220mm rotor (R) |
|
Brake Levers |
SRAM Code Stealth Ultimate |
|

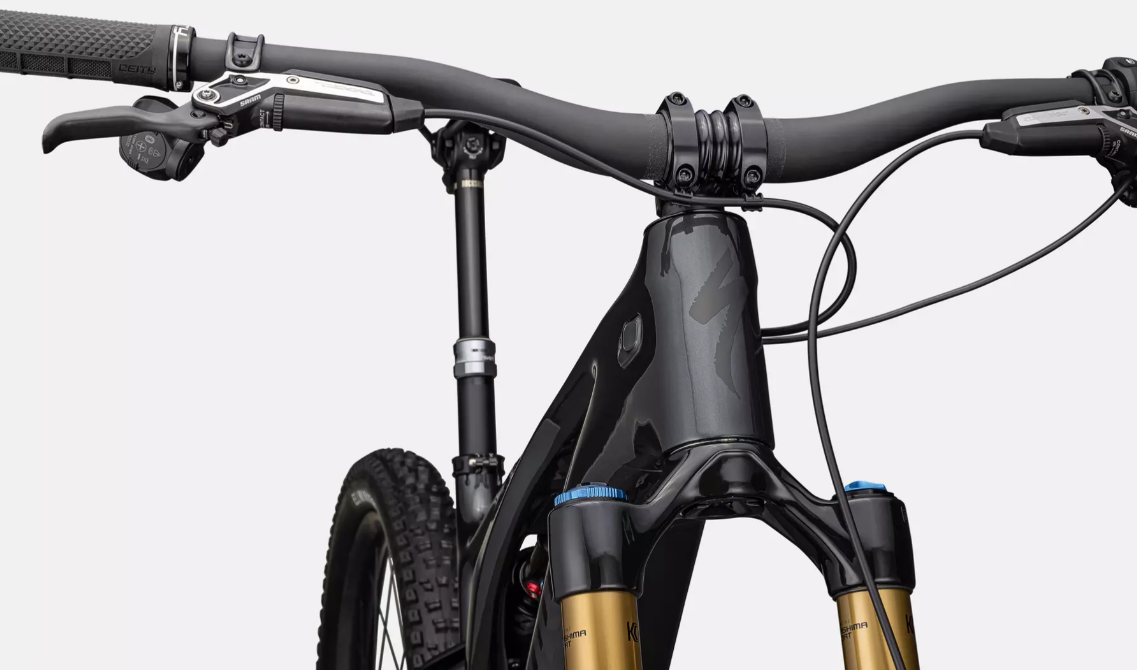

Handlebar |
Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm, 35.0mm |
|
Stem |
Deity, 35.0mm |
|
Saddle |
Bridge, 155/143mm, Hollow Ti-rails |
|
Seatpost |
RockShox Reverb AXS, 30.9, 1X remote, S2: 125mm, S3: 150mm, S4-S6: 170mm |
|
Seatpost Clamp |
Alloy, 38.6mm |
|
Grips |
Deity Grips |
|
Front Hub |
Roval Traverse SL 29 |
|
Rear Hub |
Roval Traverse SL 27.5, 148mm spacing, XD freehub body |
|
Rims |
Roval Traverse SL, carbon |
|
Pedals |
Test ride pedals provided by Specialized |
|
Exterior Features |
Geo adjust head tube, geo adjust horst pivot, SWAT CC steerer tube integrated tool |
|
Weight |
22.5 kg / 49 lb, 9.7 oz (size S4) |
|
Drive Unit |
Specialized 2.2 Custom Rx Trail Tuned Motor, 90Nm torque, 565W power |
|
Battery |
Specialized M3-700, Integrated battery, 700Wh |
|
Charger |
Custom charger, 42V4A with Rosenberger plug, 100-240V |
|
Display |
Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, with handlebar remote |
|
Certifications |
Certified to UL 2849 (e-system) and UL 2271 (battery) by UL Solutions and/or SGS |
