Specification

Details

Model

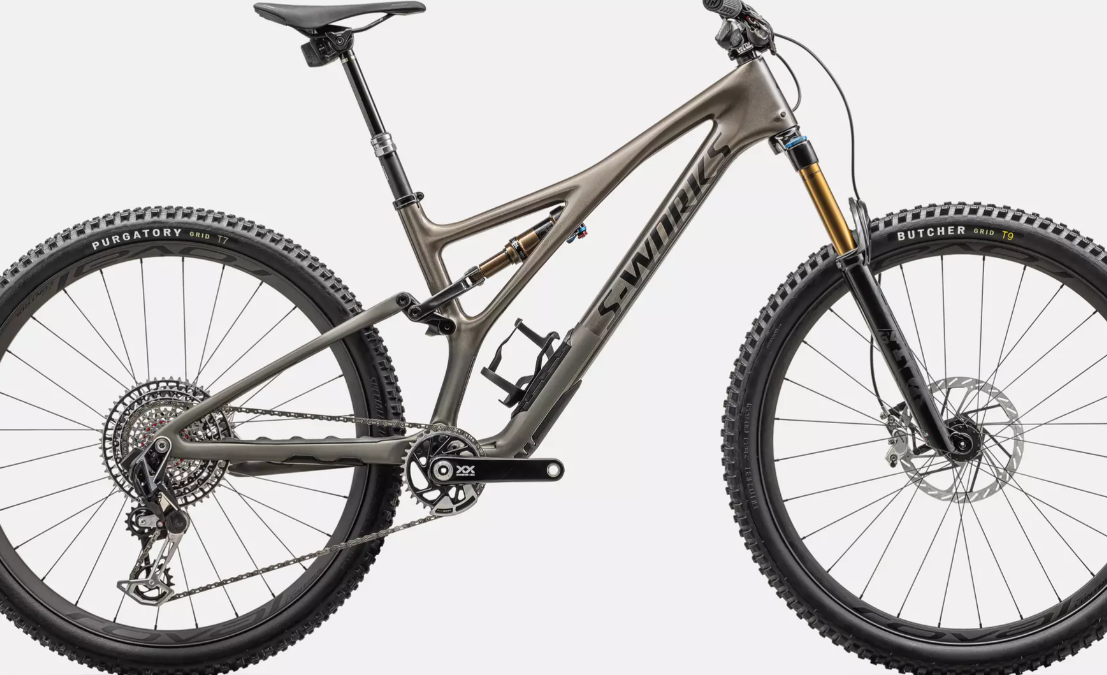

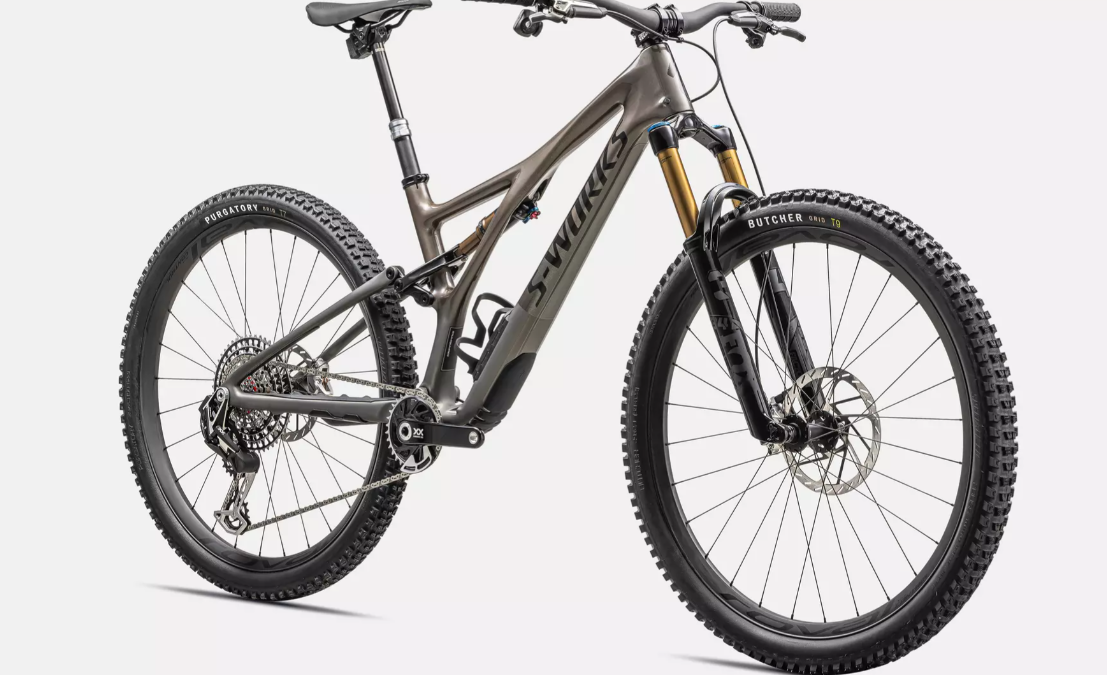

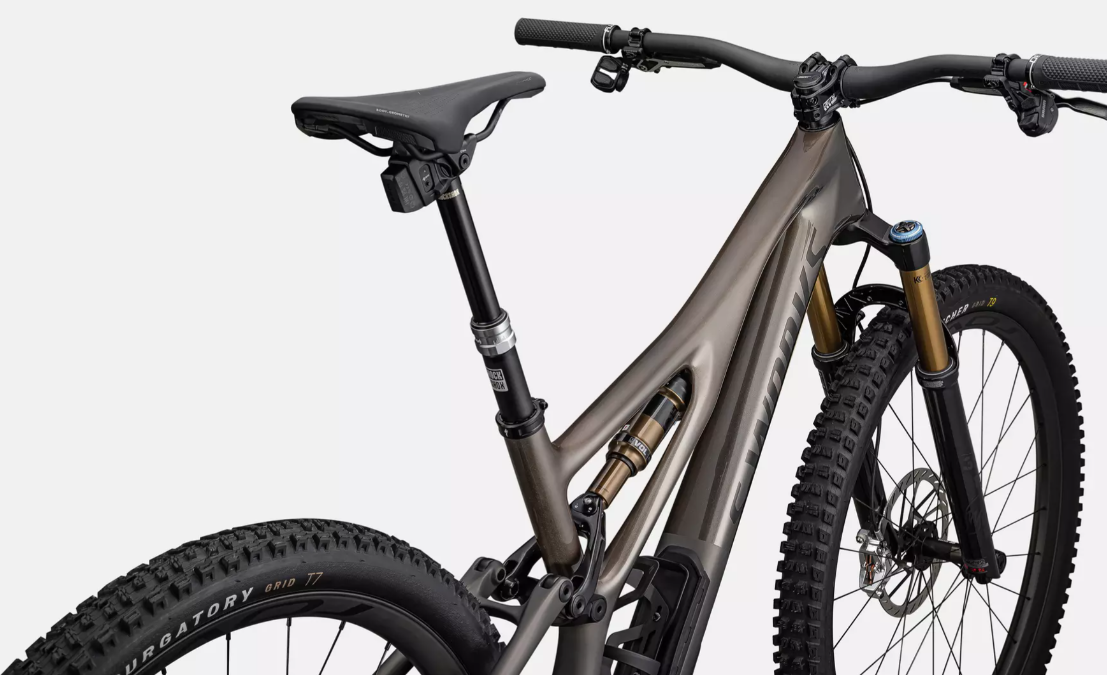

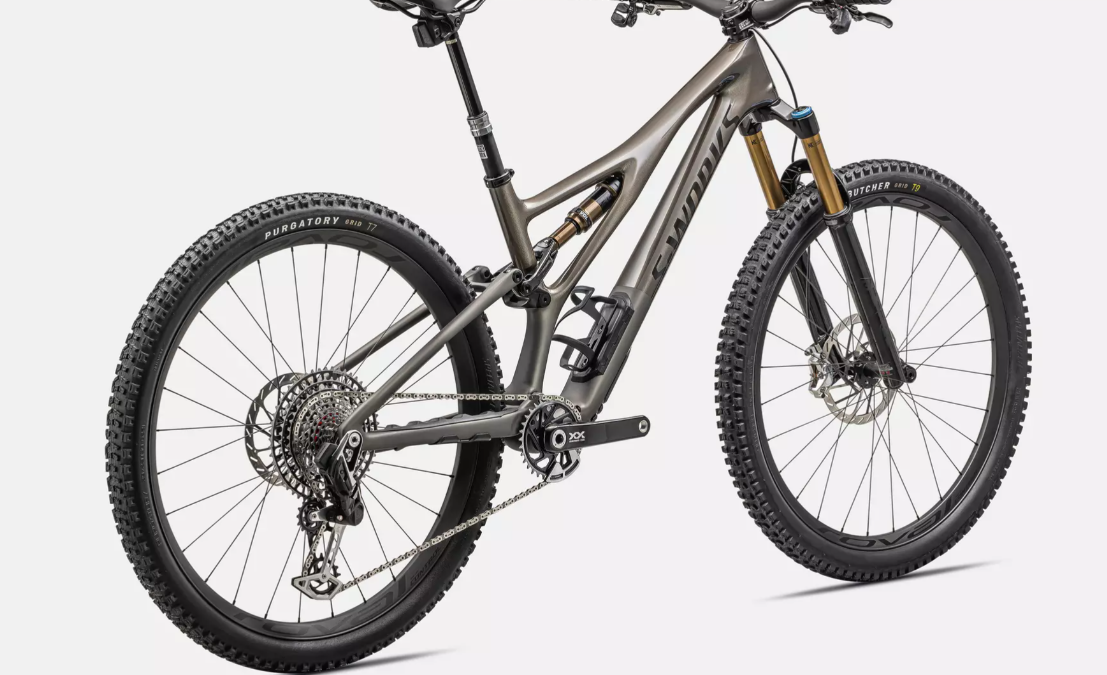

S-Works Stumpjumper T-Type

Vehicle Category

Trail Bike

Application

Trail riding, technical cross-country, climbing, descending

Starting Price (2025)

$7,999.99–$10,999.99 USD

Color Options

Gloss Black Pearl / Satin Black Pearl / Brushed Black Chrome

Sizes

S1, S2, S3, S4, S5, S6

Specification

Details

Frame

FACT 11m carbon chassis and rear-end, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, flip chip Head Tube/Bottom Bracket adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm UDH compatible rear spacing, sealed cartridge bearing pivots, 130mm of travel

Fork

FOX FLOAT 34 Factory, GRIP2 damper, Kashima Coating, 15x110mm, 44mm offset, 140mm of travel

Rear Shock

FOX FLOAT DPS Factory, Rx Trail Tune, EVOL Air sleeve, Kashima Coat, 3-position adjustment w/ Open Mode Adjustment, 190x45mm

Drivetrain Compatibility

SRAM XX Eagle Transmission, 12-speed

Dropouts

15x110mm (F), 12x148mm UDH compatible (R)

Crank

SRAM XX Eagle Crankset, Carbon, Integrated Guard, 55mm Chainline, S1: 165mm, S2-S5: 170mm, S6: 175mm

Chain

SRAM XX SL Eagle Transmission Flattop Chain

Rear Derailleur

SRAM XX Eagle Transmission Derailleur

Shifters

SRAM AXS POD Ultimate Controller

Cassette

SRAM XX SL Eagle Transmission Cassette, 12-speed, 10-52t

Specification

Details

Seating

Bridge, 155/143mm, Hollow Ti-rails

Cargo Capacity

SWAT™ Door integration

Wheels/Tyres

Front: Roval Control 240, hookless carbon, 29mm inner width, Butcher, GRID casing, GRIPTON® T9 compound, 29x2.3"; Rear: Roval Control 240, hookless carbon, 29mm inner width, Purgatory, GRID casing, GRIPTON® T7 compound, 29x2.3"

Brakes

SRAM Code Ultimate Stealth, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor (F), 180mm HS2 Rotor (R)

Brake Levers

SRAM Code Ultimate Stealth

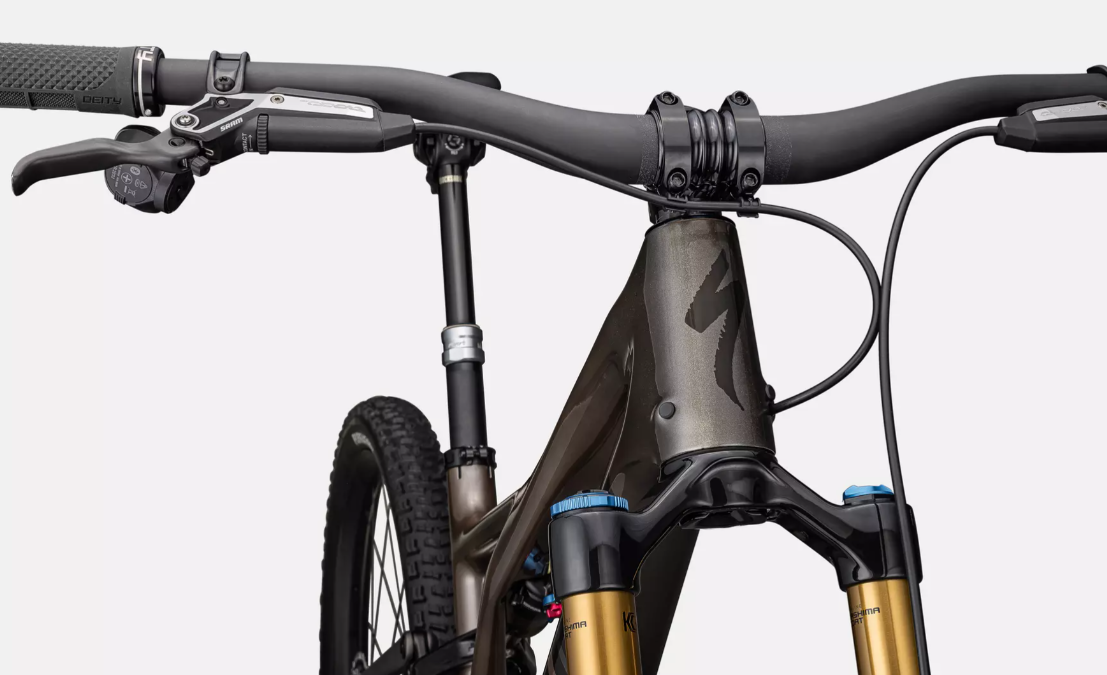

Handlebar

Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm, 35.0mm

Stem

Deity, 35.0mm

Saddle

Bridge, 155/143mm, Hollow Ti-rails

Seatpost

RockShox Reverb AXS, 30.9, 1X remote, S1: 100mm, S2: 125mm, S3: 150mm, S4-S6: 170mm

Seatpost Clamp

Alloy, 38.6mm

Grips

Deity Lockjaw Grips

Front Hub

DT Swiss 240, sealed cartridge bearings, 15x110mm spacing, 28h

Rear Hub

DT Swiss 240, Ratchet EXP, 36t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h

Rims

Roval Control 240, hookless carbon, 29mm inner width, hand-built, 2Bliss Ready

Spokes

DT Swiss Competition Race

Exterior Features

SWAT™ Door integration, flip chip Head Tube/Bottom Bracket adjustment, fully enclosed internal cable routing

Weight

12.75 kg / 28 lb, 1.7 oz (size S4)
