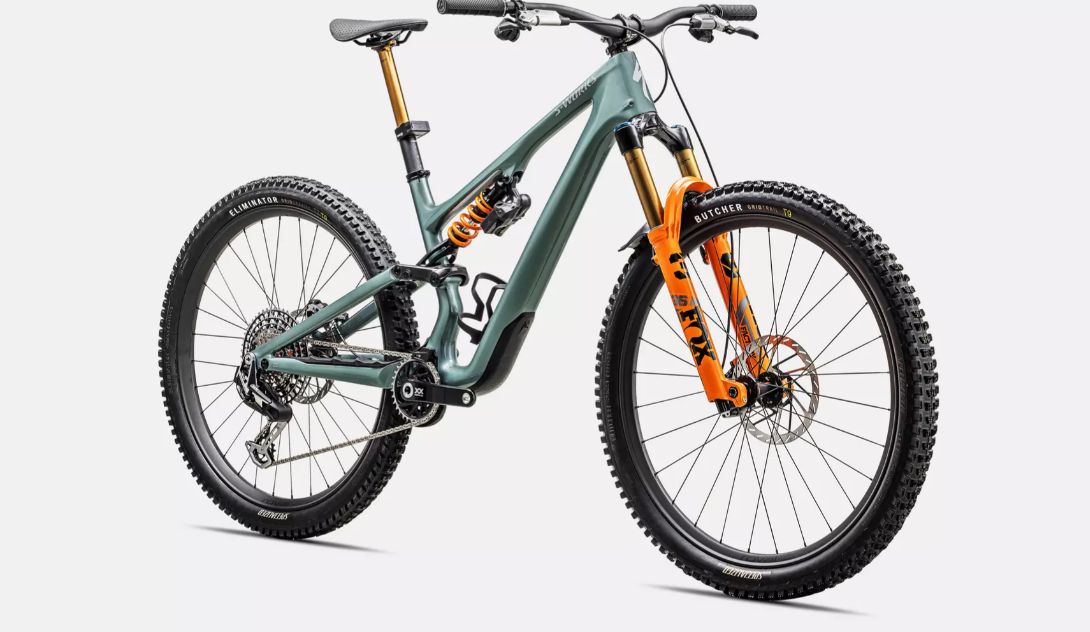

2025 Specialized S-Works Stumpjumper 15 LTD – Trail Bike
Specifications
|
Specification |
Details |
|
Model |
S-Works Stumpjumper 15 LTD |
|
Vehicle Category |
Trail Bike |
|
Application |
Trail riding, all-mountain |
|
Starting Price (2025) |
$11,999.99 USD |
|
Color Options |
Gloss Fjord Metallic / Dolomite Metallic |
|
Sizes |
S2, S3, S4, S5, S6 |
|
Wheel Options |
29"/27.5", 29"/29" |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
FACT 11m carbon chassis, rear-end, and link, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal brake and dropper cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm travel |
|
Fork |
FOX FLOAT 36 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm QR axle, 44mm offset, 150mm travel |
|
Rear Shock |
FOX DHX Live Valve NEO Factory, Ride Dynamics Trail Tune, 210x55mm, S2: 400lbs, S3: 450lbs, S4: 500lbs, S5: 550lbs, S6: 600lbs |
|
Drivetrain Compatibility |
SRAM XX Eagle Transmission, 12-speed, electronic |
|
Dropouts |
15x110mm QR axle (F), 12x148mm UDH compatible (R) |
|
Crank |
SRAM XX Eagle Crankset, 32T ring, 55mm Chainline, 165mm (S2-S3), 170mm (S4-S6) |
|
Chain |
SRAM XX Eagle SL Transmission Flattop Chain |
|
Rear Derailleur |
SRAM XX Eagle Transmission Derailleur |
|
Shifters |
SRAM AXS POD Ultimate Controller |
|
Cassette |
SRAM XX Eagle SL Transmission Cassette, 12-speed, 10-52T |
Components & Features
|
Specification |
Details |
|
Seating |
Power Pro with Mirror, Hollow Ti rails, 155mm (S2), 143mm (S3-S6) |
|
Cargo Capacity |
SWAT 4.0 internal downtube storage |
|
Wheels/Tyres |
Roval Traverse HD, hookless carbon, 30mm inner width, tubeless ready, DT Swiss Revolite spokes, 29x2.3" front (Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready), 27.5x2.3" (S2) or 29x2.3" (S3-S6) rear (Eliminator, GRID GRAVITY casing, GRIPTON® T7/T9 compound, 2Bliss Ready), Standard Presta valve tubes |
|
Wheel Size |
29"/27.5" (S2), 29"/29" (S3-S6) |
|
Brakes |
SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor (F), 180mm (S2) or 200mm (S3-S6) HS2 Rotor (R) |
|
Brake Levers |
SRAM Maven Ultimate, hydraulic |
|
Handlebar |
Race Face ERA Carbon, 5-degree upsweep, 8-degree backsweep, 780mm width, 20mm rise (S2), 800mm width, 40mm rise (S3-S6) |
|
Stem |
Industry 9 Mountain stem, 35mm clamp, 40mm length |
|
Headset |
Integrated, sealed cartridge bearing |
|
Saddle |
Power Pro with Mirror, Hollow Ti rails, 155mm (S2), 143mm (S3-S6) |
|
Seatpost |
FOX Transfer NEO Factory, 34.9mm, 150mm (S2), 175mm (S3), 200mm (S4-S6) |
|
Seatpost Clamp |
Alloy, 38.6mm |
|
Grips |
Deity Lockjaw |
|
Front Hub |
DT Swiss 240, 15x110mm, 28h |
|
Rear Hub |
DT Swiss 240, 12x148mm, 32h |
|
Rims |
Roval Traverse HD, hookless carbon, 30mm inner width, tubeless ready |
|
Spokes |
DT Swiss Revolite |
|
Exterior Features |
SWAT 4.0 internal downtube storage, adjustable head tube angle, FOX Live Valve NEO, mixed wheel setup (29"/27.5" for S2, 29"/29" for S3-S6) |
|
Weight |
14.48 kg / 31 lb 14.8 oz (S4) |
