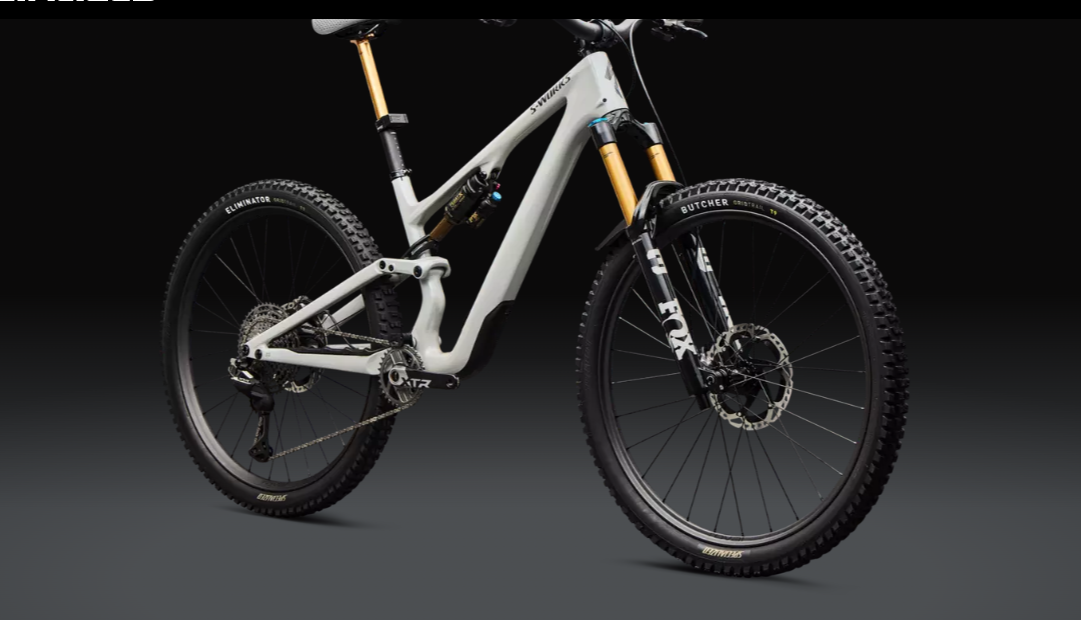

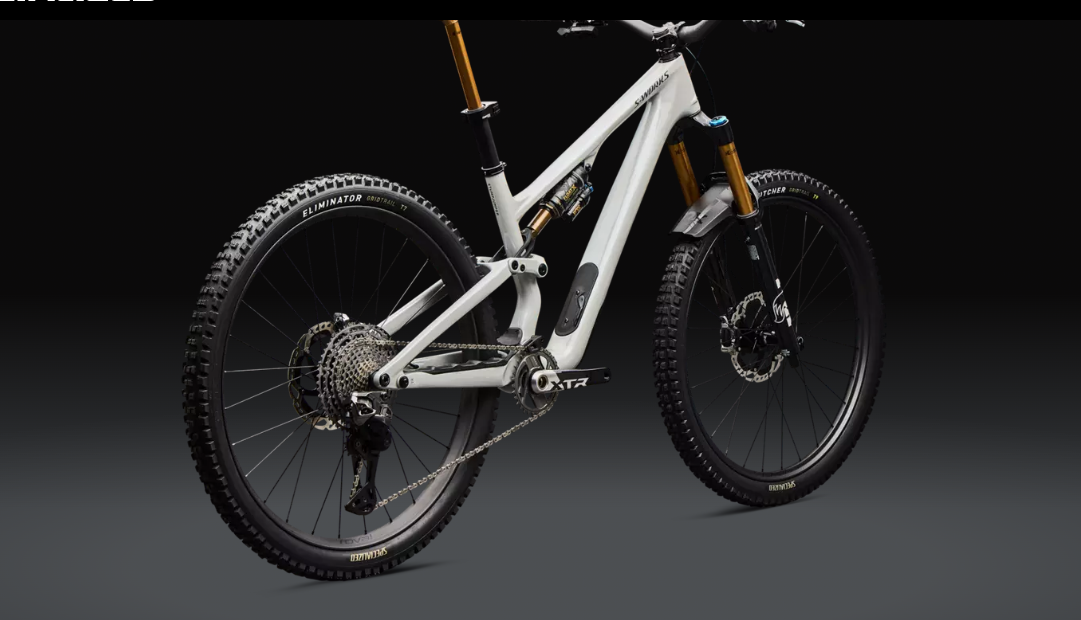

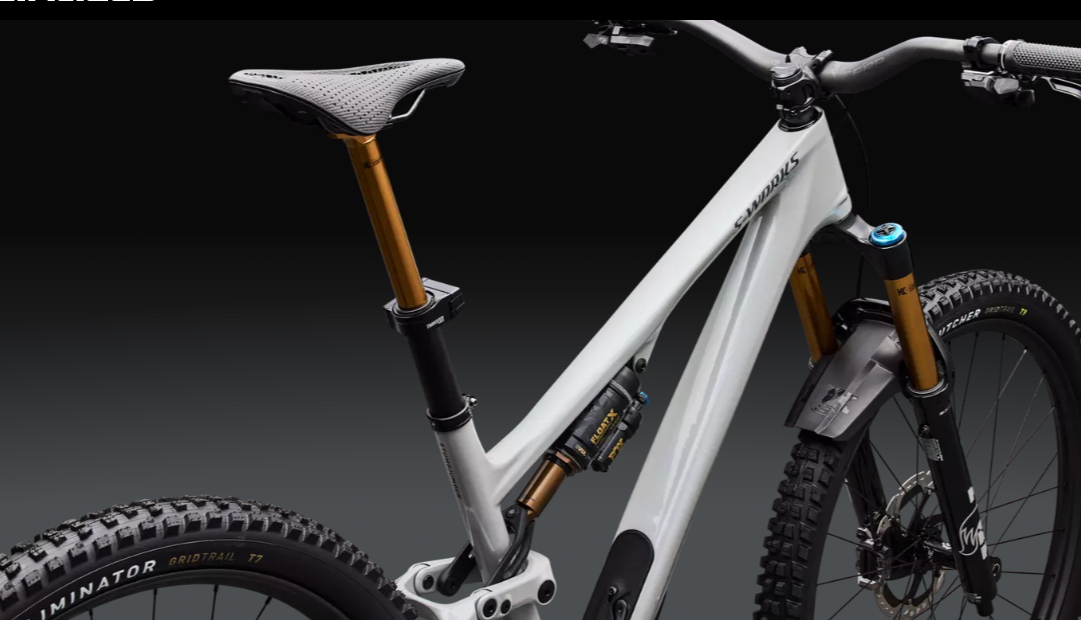

2025 Specialized S-Works Stumpjumper 15 EVO – Trail Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
S-Works Stumpjumper 15 EVO |
|
Vehicle Category |
Trail Mountain Bike |
|
Application |
Trail riding, all-mountain |
|
Starting Price (2025) |
$11,299.99 USD |
|
Color Options |
Gloss Dolomite Metallic |
|
Sizes |
S1, S2, S3, S4, S5, S6 |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
FACT 11m carbon chassis, rear-end and link, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal brake and dropper cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm travel |
|
Fork |
FOX FLOAT 36 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm Kabolt axle, 44mm offset, 150mm (S1), 160mm (S2-S6) |
|
Rear Shock |
FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSC adjustment, LSR adjustment, 210x55mm |
|
Drivetrain Compatibility |
Shimano XTR Di2, 12-speed |
|
Dropouts |
15x110mm (F), 12x148mm UDH compatible (R) |
|
Crank |
Shimano XTR, 55mm chainline, 32T, 165mm (S1-S3), 170mm (S4-S6) |
|
Chain |
Shimano XTR, 12-speed with quick link |
|
Rear Derailleur |
Shimano XTR Di2, 12-speed |
|
Shifters |
Shimano XTR Di2 |
|
Cassette |
Shimano XTR, 12-speed, 10-51t |
Components & Features
|
Specification |
Details |
|
Seating |
Specialized S-Works Power Mirror, Ti Rails, 155mm (S1-S2), 143mm (S3-S6) |
|
Cargo Capacity |
SWAT 4.0 internal downtube storage |
|
Wheels/Tyres |
Front: Roval Traverse SL II, hookless carbon, 30mm inner width, Butcher, GRID TRAIL casing, GRIPTON® T9, TLR, 29x2.4"; Rear: Roval Traverse SL II, hookless carbon, 30mm inner width, Eliminator, GRID TRAIL casing, GRIPTON® T7, TLR, 27.5x2.4" (S1-S2), 29x2.4" (S3-S6) |
|
Wheel Size |
Mixed: 29" (F), 27.5" (R) for S1-S2; 29" (F/R) for S3-S6 |
|
Brakes |
Shimano XTR, 4-piston caliper, hydraulic disc, 203mm rotor (F), 180mm (S1-S2) or 203mm (S3-S6) rotor (R) |
|
Brake Levers |
Shimano XTR |
|
Handlebar |
RaceFace ERA Carbon, 5-degree upsweep, 8-degree backsweep, 800mm width, 20mm rise (S1-S2), 55mm rise (S3-S6) |
|
Stem |
Race Face Turbine R, 35mm clamp, 40mm length |
|
Saddle |
Specialized S-Works Power Mirror, Ti Rails, 155mm (S1-S2), 143mm (S3-S6) |
|
Seatpost |
FOX Transfer NEO Factory, 34.9mm, 125mm (S1), 150mm (S2), 175mm (S3), 200mm (S4-S6) |
|
Seatpost Clamp |
Alloy, 38.6mm |
|
Grips |
Deity Lockjaw Grips |
|
Front Hub |
Industry 9 Hydra 2, 15x110mm, 28h, 6 bolt |
|
Rear Hub |
Industry 9 Hydra 2, 12x148mm, 28h, 6 bolt |
|
Rims |
Roval Traverse SL II, hookless carbon, 30mm inner width, tubeless ready |
|
Spokes |
DT Swiss Revolite |
|
Exterior Features |
Trail Geometry, SWAT 4.0 internal downtube storage, head tube angle adjustment, GENIE shock technology, lifetime replacement suspension pivot bearings |
|
Weight |
13.95 kg / 30 lb, 12.1 oz (size S4) |
