2025 Specialized S-Works Crux – Gravel Bike

Images:

1

2

3

4

5

Specifications

Specification	Details
Model	S-Works Crux
Vehicle Category	Gravel Bike
Application	Gravel racing, performance gravel riding
Starting Price (2025)	$11,999.99 USD
Color Options	Premium Fjord
Sizes	49, 52, 54, 56, 58, 61

Frame & Drivetrain

Specification	Details
Frame	S-Works Crux FACT 12r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
Fork	S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
Drivetrain Compatibility	SRAM RED XPLR, 13-speed
Dropouts	12x100mm thru-axle (F), 12x142mm thru-axle (R), UDH dropout
Crank	SRAM Red AXS Power Meter, 40t Chainring
Chain	SRAM Red XPLR, 13sp
Rear Derailleur	SRAM Red XPLR, 13sp
Shifters	SRAM RED AXS, hydraulic disc
Cassette	SRAM Red XPLR, 13sp, 10-46t

Components & Features

Specification	Details
Seating	S-Works Power with Mirror
Wheels/Tyres	Roval Terra CLX II, 25mm internal width, Tubeless Ready, 32mm depth, 21h (F), 24h (R), Roval LF13 hub with ceramic SINC bearings (F), Roval LF14R2 with DT Swiss EXP internals (R), Centerlock disc, DT Swiss Aerolite spokes, SRAM XDR, Pathfinder 700x40, Tubeless Ready, Presta, 700x32-50mm
Wheel Size	700C front, 700C rear
Brakes	SRAM RED AXS, hydraulic disc
Brake Levers	SRAM RED AXS, hydraulic disc
Handlebar	Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare
Stem	S-Works SL, alloy, titanium bolts, 6-degree rise
Saddle	S-Works Power with Mirror
Seatpost	Roval Alpinist Carbon Seatpost
Seatpost Clamp	Specialized Alloy, 30.0mm, titanium bolt
Grips	Supacaz Super Sticky Kush
Front Hub	Roval LF13 hub with ceramic SINC bearings, Centerlock disc, 21h
Rear Hub	Roval LF14R2, Centerlock, DT Swiss EXP internals, SRAM XDR, 24h
Rims	Roval Terra CLX II, 25mm internal width, Tubeless Ready, 32mm depth
Spokes	DT Swiss Aerolite spokes
Weight	6.94 kg (15 lb, 4.8 oz) for size 56

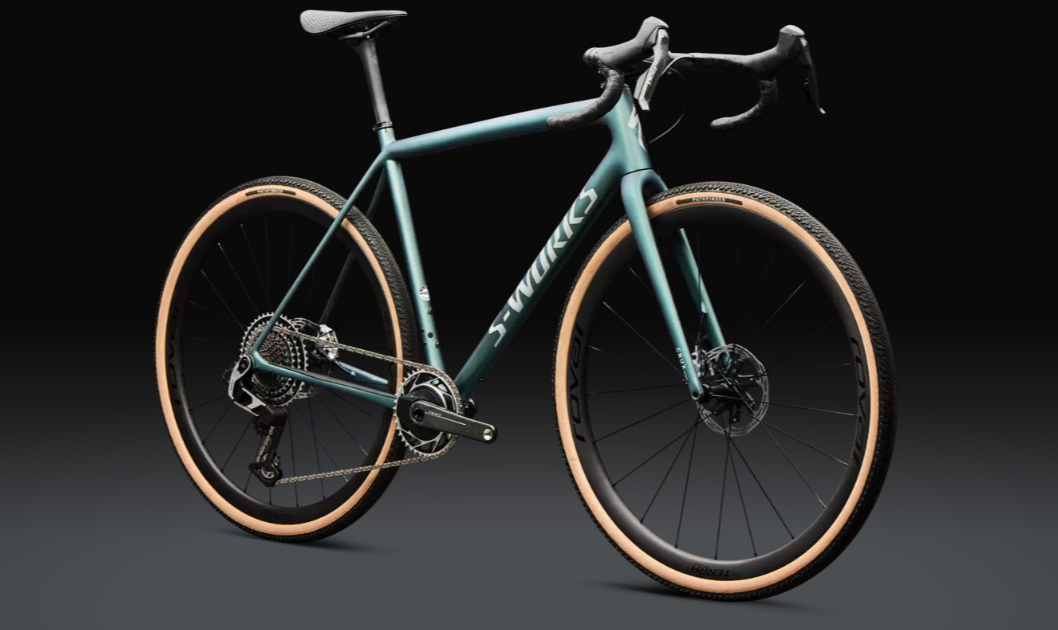

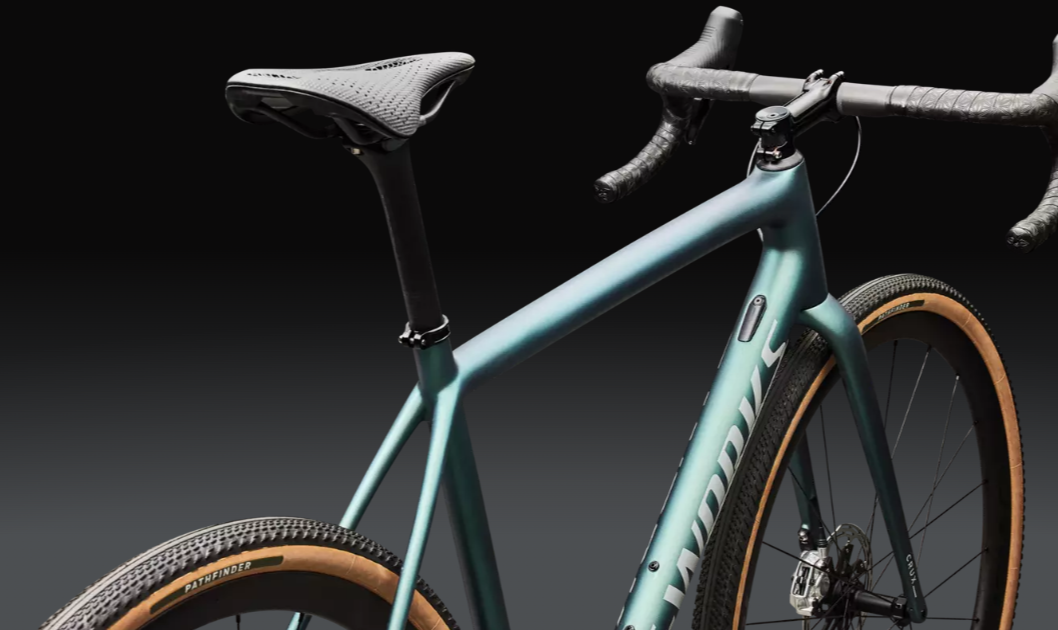

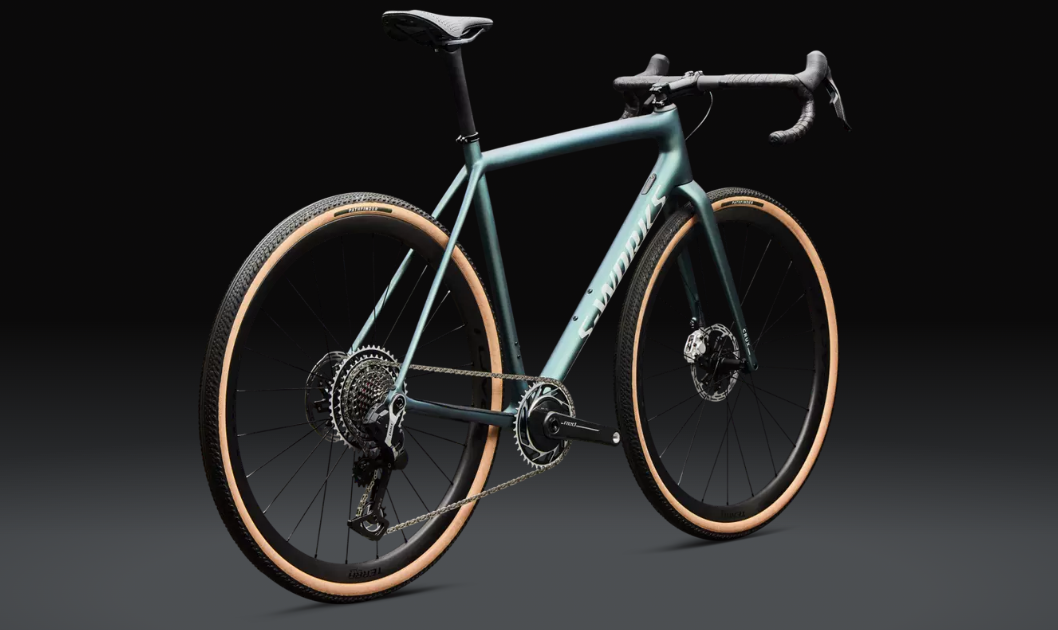

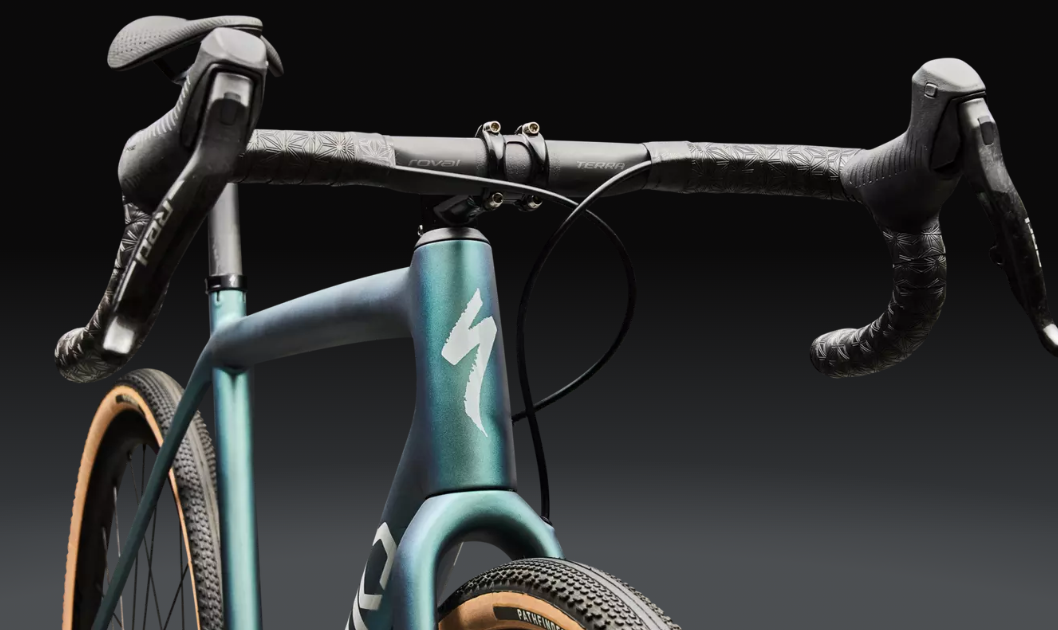

* All the images are screenshots!
* Data has been taken from official website (Publicly Available)!
