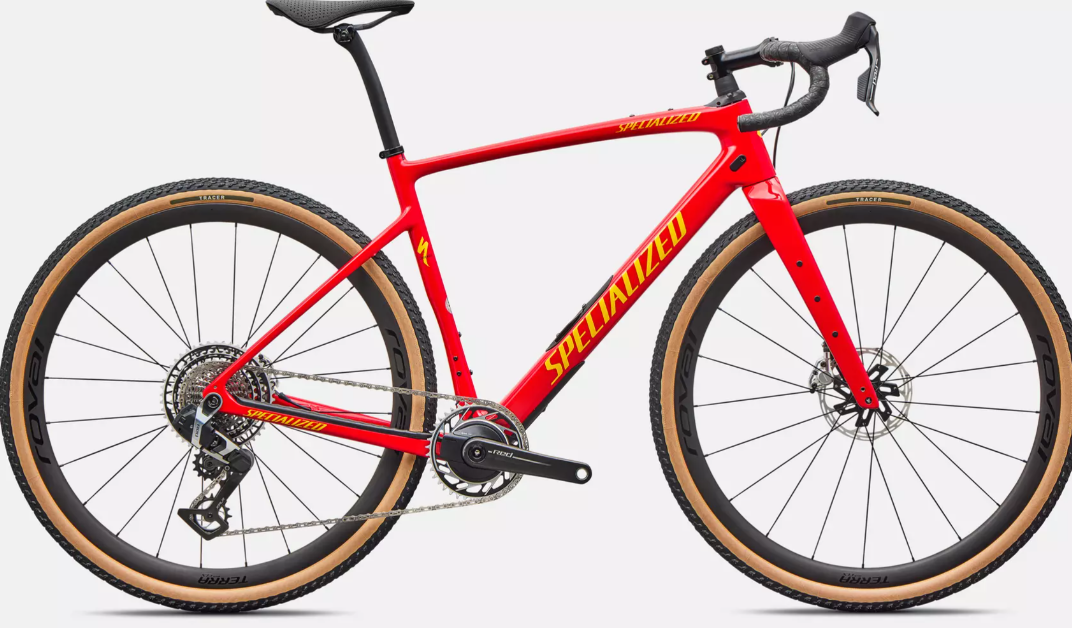

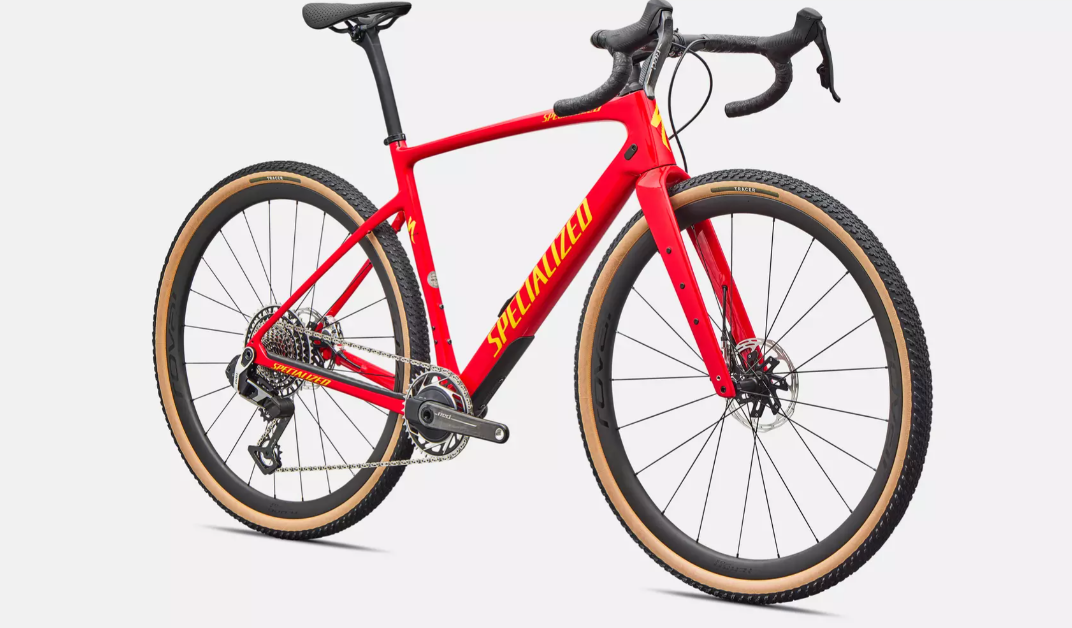

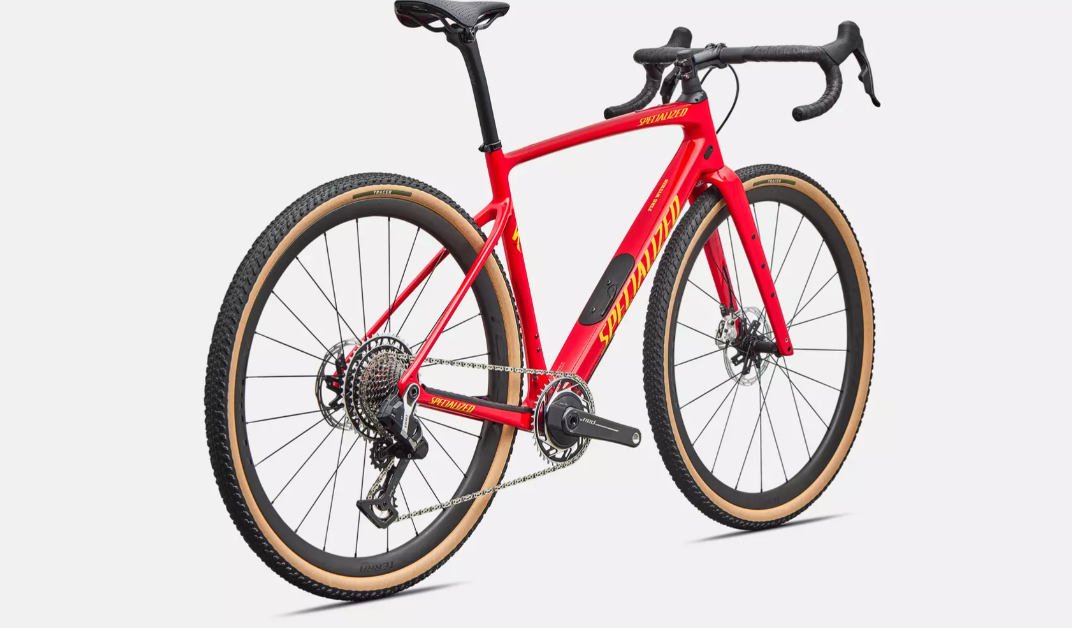

2025 Specialized Diverge 4 Pro LTD – Gravel Bike
Specifications
|
Specification |
Details |
|
Model |
Diverge 4 Pro LTD (SRAM RED XPLR) |
|
Vehicle Category |
Gravel Bike |
|
Application |
Adventure, racing |
|
Starting Price (2025) |
$10,499.99 USD |
|
Color Options |
Vivid Red |
|
Sizes |
49, 52, 54, 56, 58 |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout |
|
Fork |
Future Shock 3.3 w/ Smooth Boot, FACT Carbon, 12x100mm thru-axle, flat-mount disc |
|
Drivetrain Compatibility |
SRAM RED AXS XPLR, 13-speed |
|
Dropouts |
12x100mm thru-axle (F), 12x142mm thru-axle (R), UDH dropout |
|
Crank |
SRAM RED AXS, Quarq Power Meter, 40T |
|
Chain |
SRAM RED E1 Chain |
|
Rear Derailleur |
SRAM RED XPLR, 13-speed |
|
Shifters |
SRAM RED AXS E1 |
|
Cassette |
SRAM RED XPLR, 13-speed, 10-46t |
Components & Features
|
Specification |
Details |
|
Seating |
S-Works Power with Mirror |
|
Cargo Capacity |
SWAT 4.0 internal downtube storage |
|
Wheels/Tyres |
Front: Roval Terra CLX II, 25mm internal width, Tubeless Ready, 32mm depth, 21h, Roval LF13 hub with ceramic SINC bearings, Centerlock disc, DT Swiss Aerolite spokes, Tracer 700x45, Tan Sidewall, Tubeless Ready; Rear: Roval Terra CLX II, 25mm internal width, Tubeless Ready, 32mm depth, 24h, Roval LF14R2, Centerlock, DT Swiss EXP internals, SRAM XDR, DT Swiss Aerolite spokes, Tracer 700x45, Tan Sidewall, Tubeless Ready |
|
Brakes |
SRAM RED AXS, hydraulic disc (F), SRAM RED E1, hydraulic disc (R) |
|
Brake Levers |
SRAM RED AXS E1 |
|

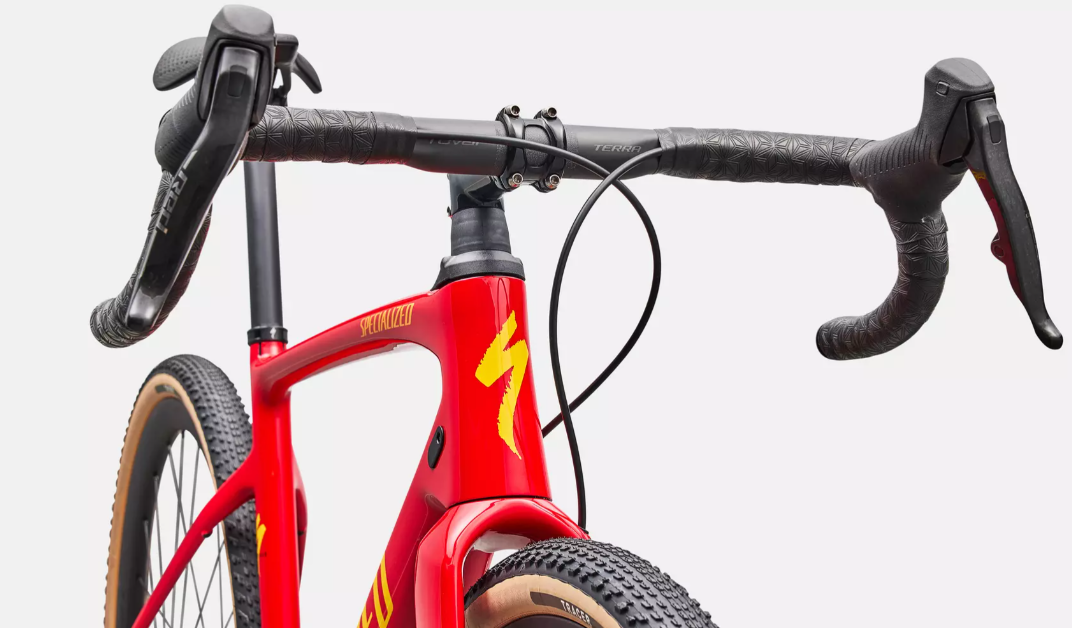

Handlebar |
Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare |
|
Stem |
Roval Alpinist, 7075 alloy, titanium bolts, 6-degree rise |
|

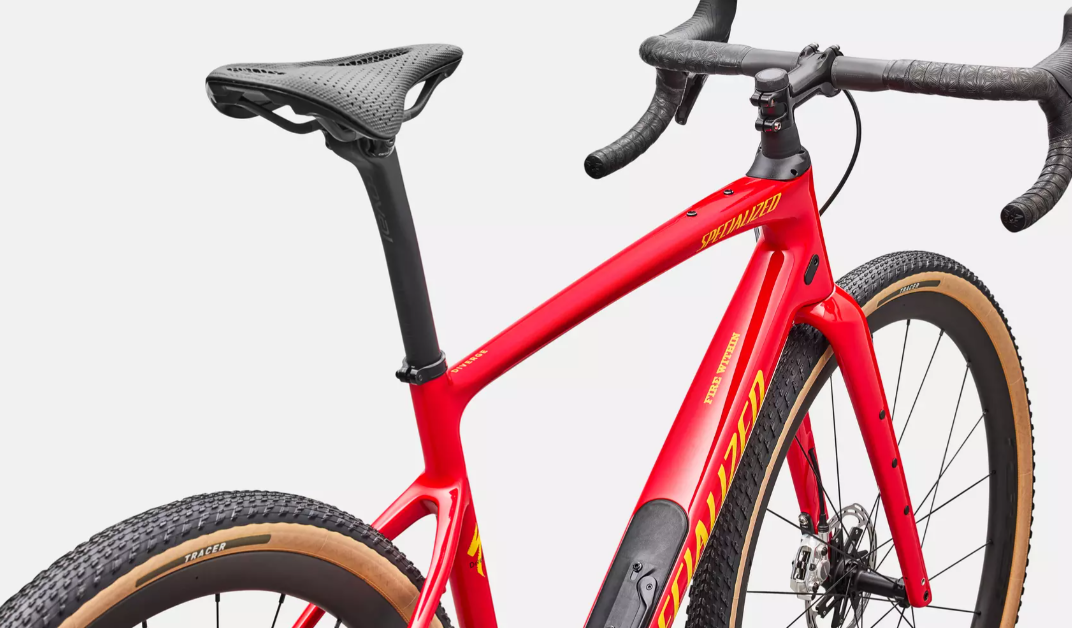

Saddle |
S-Works Power with Mirror |
|
Seatpost |
Roval Terra Carbon Seat Post, 20mm Offset |
|
Seatpost Clamp |
Specialized Alloy, 30.8mm |
|
Grips |
Supacaz Super Sticky Kush |
|
Front Hub |
Roval LF13 hub with ceramic SINC bearings, Centerlock disc, 21h |
|
Rear Hub |
Roval LF14R2, Centerlock, DT Swiss EXP internals, SRAM XDR, 24h |
|
Rims |
Roval Terra CLX II, 25mm internal width, Tubeless Ready, 32mm depth |
|
Spokes |
DT Swiss Aerolite |
|
Exterior Features |
SWAT 4.0 internal downtube storage, Future Shock 3.3 with 20mm travel, 50mm tire clearance, carbon beam for rear clearance, 71° headtube angle (56cm), 5mm lower bottom bracket, 430mm chainstay |
|
Weight |
8.01 kg / 17 lb, 10.5 oz (size 56) |
