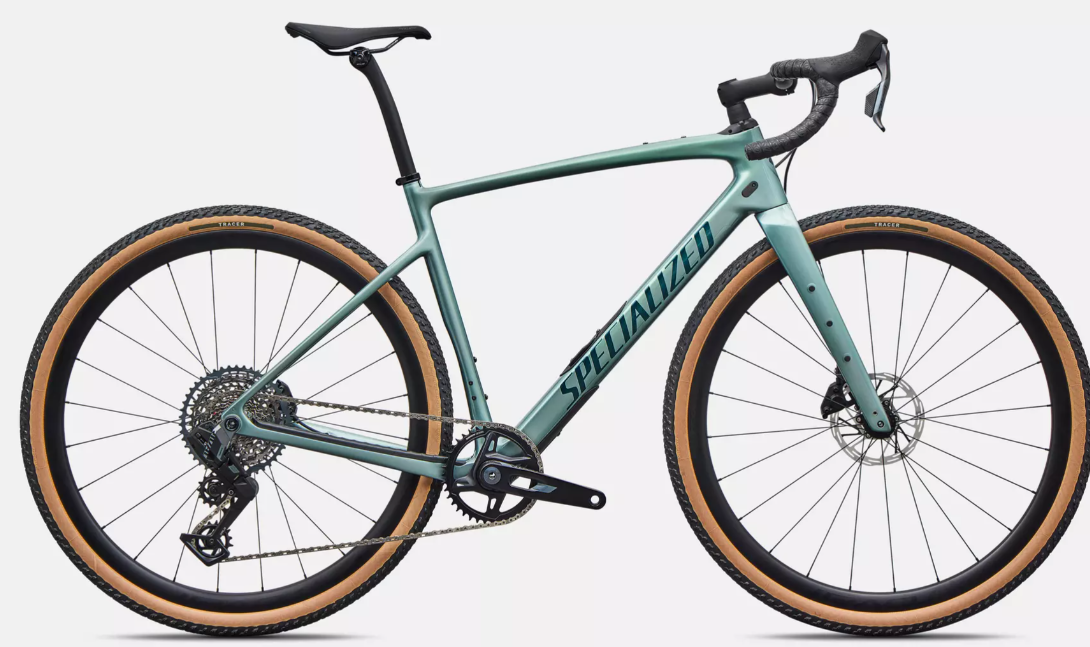

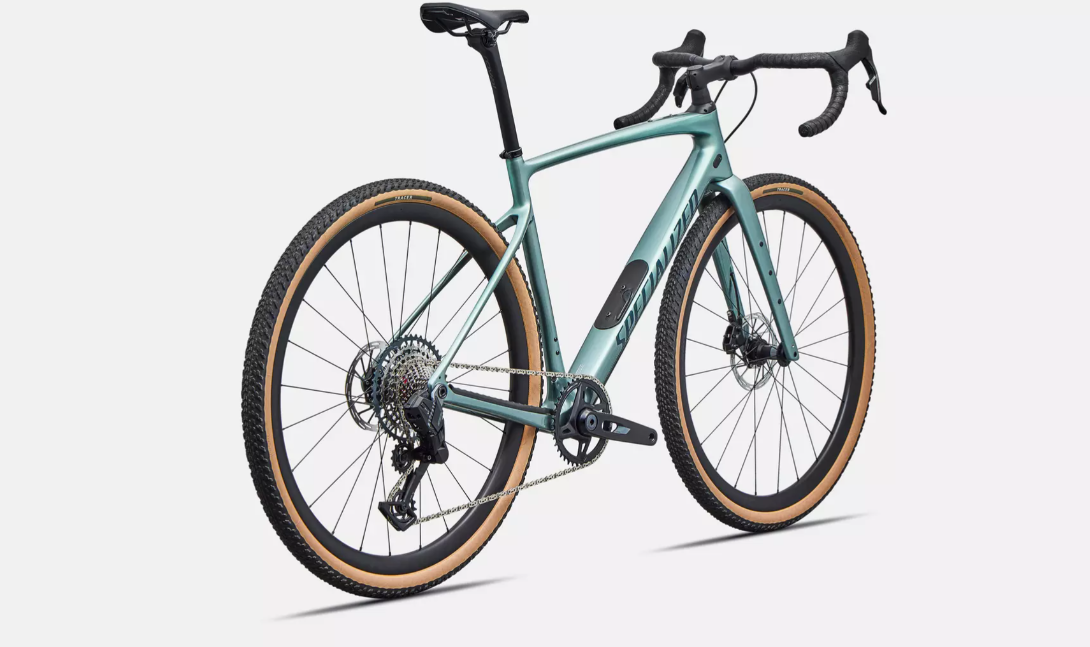

2025 Specialized Diverge 4 Expert – Gravel Bike
Specifications
|
Specification |
Details |
|
Model |
Diverge 4 Expert (SRAM Rival XPLR) |
|
Vehicle Category |
Gravel Bike |
|
Application |
Adventure, racing |
|
Starting Price (2025) |
$5,999.99 USD |
|
Color Options |
Fjord Metallic |
|
Sizes |
49, 52, 54, 56, 58, 61 |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout |
|
Fork |
Future Shock 3.2 w/ Smooth Boot, FACT Carbon, 12x100mm thru-axle, flat-mount disc |
|
Drivetrain Compatibility |
SRAM Rival AXS XPLR, 13-speed |
|
Dropouts |
12x100mm thru-axle (F), 12x142mm thru-axle (R), UDH dropout |
|
Crank |
SRAM Rival E1 XPLR, DUB Wide, 40t |
|
Chain |
SRAM Rival E1 |
|
Rear Derailleur |
SRAM Rival AXS E1 XPLR |
|
Shifters |
SRAM Rival AXS E1 |
|
Cassette |
SRAM Rival E1 XPLR, 10-46t, 13-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Body Geometry Power Expert |
|
Cargo Capacity |
SWAT 4.0 internal downtube storage |
|
Wheels/Tyres |
Front: Roval Terra C Rim, 25mm internal width, 32mm depth, 24h, Tubeless ready, DT for Roval 370 hub, Centerlock disc, DT Swiss Competition Race spokes, Tracer 700x45, Tan Sidewall, Tubeless Ready; Rear: Roval Terra C Rim, 25mm internal width, 32mm depth, 24h, Tubeless ready, DT for Roval 370 hub, Centerlock disc, DT Swiss Competition Race spokes, Tracer 700x45, Tan Sidewall, Tubeless Ready |
|
Brakes |
SRAM Rival E1, hydraulic disc (F and R) |
|
Brake Levers |
SRAM Rival AXS E1 |
|
Handlebar |
Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare |
|
Stem |
Future Stem, Pro |
|
Saddle |
Body Geometry Power Expert |
|
Seatpost |
Roval Terra Carbon Seat Post, 20mm Offset |
|
Seatpost Clamp |
Specialized Alloy, 30.8mm |
|
Grips |
Supacaz Super Sticky Kush |
|
Front Hub |
DT for Roval 370 hub, Centerlock disc, 24h |
|
Rear Hub |
DT for Roval 370 hub, Centerlock disc, 24h |
|
Rims |
Roval Terra C Rim, 25mm internal width, 32mm depth, Tubeless ready |
|
Spokes |
DT Swiss Competition Race |
|
Exterior Features |
SWAT 4.0 internal downtube storage, Future Shock 3.2 with 20mm travel, 50mm tire clearance, carbon beam for rear clearance, 71° headtube angle (56cm), 5mm lower bottom bracket, 430mm chainstay |
|
Weight |
8.9 kg / 19 lb, 9.9 oz (size 56) |
