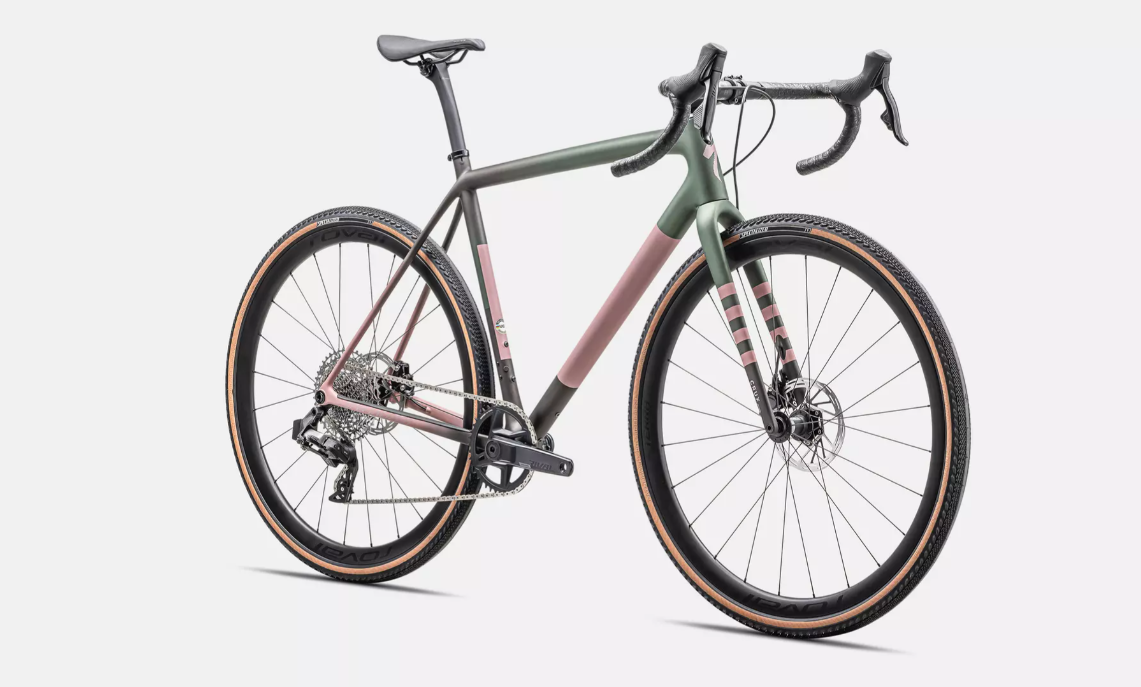

2025 Specialized Crux Expert – Gravel Bike
Specifications
|
Specification |
Details |
|
Model |
Crux Expert (SRAM Rival XPLR AXS) |
|
Vehicle Category |
Gravel Bike |
|
Application |
Adventure, racing |
|
Starting Price (2025) |
$5,799.99 USD |
|
Color Options |
Satin Carbon |
|
Sizes |
49, 52, 54, 56, 58, 61 |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Crux FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout |
|
Fork |
S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc |
|
Drivetrain Compatibility |
SRAM Rival XPLR AXS, 13-speed |
|
Dropouts |
12x100mm thru-axle (F), 12x142mm thru-axle (R), UDH dropout |
|
Crank |
SRAM Rival XPLR E1, 40T |
|
Chain |
SRAM Rival E1 |
|
Rear Derailleur |
SRAM Rival XPLR AXS E1 |
|
Shifters |
SRAM Rival AXS E1 HRD |
|
Cassette |
SRAM Rival XPLR XG-1351, 13-speed, 10-46t |
Components & Features
|
Specification |
Details |
|
Seating |
Body Geometry Power Expert |
|
Wheels/Tyres |
Front: Roval Terra C, 25mm inner width carbon rim, 32mm depth, DT 370 hub, 24h, DT Swiss Comp Race spokes, Pathfinder 700x40, Tubeless Ready; Rear: Roval Terra C, 25mm inner width carbon rim, 32mm depth, DT 370 hub, 24h, DT Swiss Comp Race spokes, Pathfinder 700x40, Tubeless Ready |
|
Brakes |
SRAM Rival AXS E1, hydraulic disc, 160mm rotor (F and R) |
|
Brake Levers |
SRAM Rival AXS E1 HRD |
|
Handlebar |
Specialized Adventure Gear, 118.9mm drop x 70mm reach x 12º flare |
|
Stem |
Specialized Pro SL, alloy, 4-bolt |
|
Saddle |
Body Geometry Power Expert |
|
Seatpost |
Roval Terra Carbon Seat Post, 20mm Offset |
|
Seatpost Clamp |
Specialized Alloy, 30mm |
|
Grips |
Supacaz Super Sticky Kush |
|
Front Hub |
DT 370 hub, 24h |
|
Rear Hub |
DT 370 hub, 24h |
|
Rims |
Roval Terra C, 25mm inner width carbon rim, 32mm depth |
|
Spokes |
DT Swiss Comp Race |
|
Exterior Features |
Rider First Engineered™, lightweight carbon frame |
|
Weight |
8.1 kg / 17 lb, 13.7 oz (size 56) |
