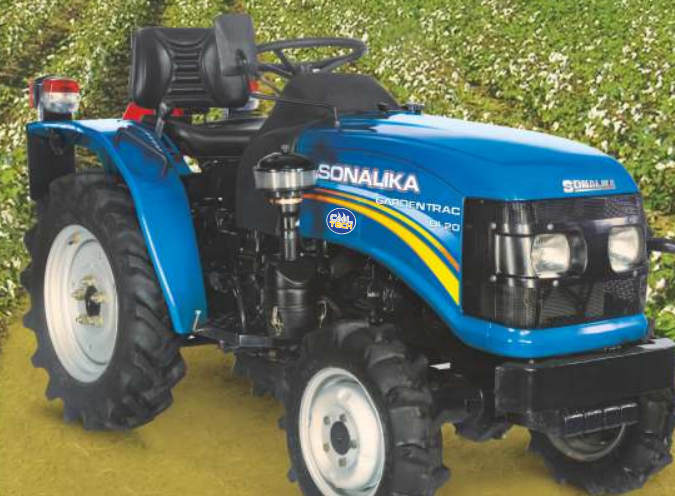

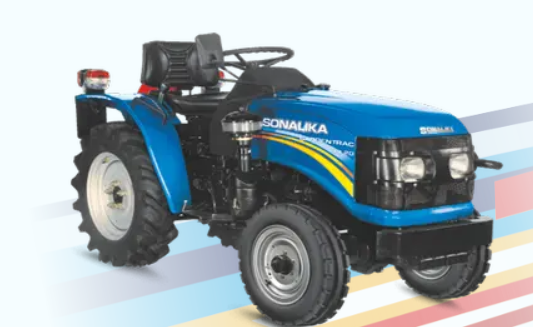

Sonalika Gardentrac DI-20 – 2WD Orchard/Vineyard Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Sonalika Gardentrac DI-20 |
|
Vehicle Category |
Orchard/Vineyard Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Row Crops (Groundnuts, Pomegranate, Sugarcane, Cotton, Grapes), Rotavator, Spraying, Ploughing, Cultivator, Harrow, Transportation, Puddling |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Mitsubishi MVL3E, 4-Stroke Water-Cooled, 3-Cylinder, 952 cc, Bore/Stroke: 76/70 mm, Oil Bath with Pre-Cleaner, Horizontal Silencer |
|
Maximum Power |
20 HP @ 2,700 RPM |
|
Maximum Torque |
52 Nm @ 2,000 RPM |
|
Transmission Type |
Sliding Mesh, 6 Forward + 2 Reverse, Forward: 1.27–14.19 km/h, Reverse: 1.63–7.16 km/h, Single Clutch (180 mm) |
|
Steering |
Mechanical |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Mechanical, Expended Shoe Type |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
Front: 127–304.8 mm (5–12), Rear: 203.2–457.2 mm (8–18) |
Components & Features
|
Specification |
Details |
|
Drive |
2WD |
|
PTO Type |
575, 848, 1465 RPM @ 2,700 Rated RPM |
|
Hydraulic System |
Lift Capacity: 650 kg |
|
Electrical System |
Battery: 12 V, 50 Ah |
|
Capacities |
Fuel Tank: 31.5 L, Engine Oil: 3.6 L, Hydraulic + Transmission: 17 L |
|
Weight |
790 kg |
|
Wheelbase |
1,420 mm |
|
Ground Clearance |
200 mm |
|
Dimensions |
Length: 2,560 mm, Width: 970 mm, Height: 1,230 mm, Front Track Width: 720 mm, Rear Track Width: 775 mm |
