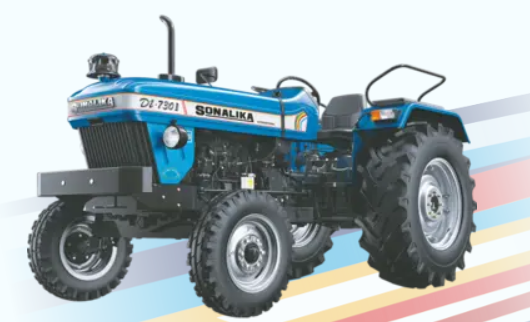

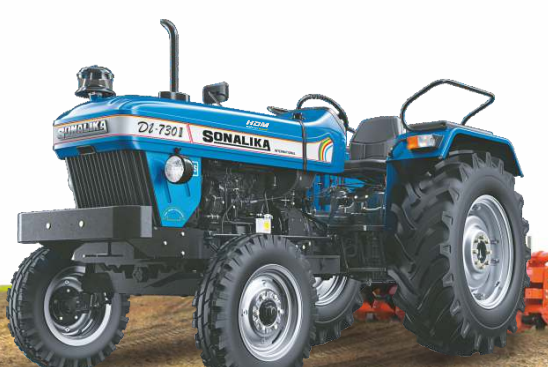

Sonalika DI-730 II HDM – 2WD Orchard/Vineyard Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Sonalika DI-730 II HDM |
|
Vehicle Category |
Orchard/Vineyard Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Row Crops, Haulage (Rotavator, Cultivator, Trolley) |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4-Stroke, Direct Injection, Water-Cooled, Diesel, 2-Cylinder, 2,044 cc |
|
Maximum Power |
30 HP (22.4 kW) @ 1,800 RPM |
|
Maximum Torque |
24.18% Backup Torque |
|
Transmission Type |
Sliding Mesh, 8 Forward + 2 Reverse, 2.05–33.18 km/h, Single Clutch |
|
Steering |
Mechanical |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Dry Disc or Oil Immersed Brakes (OIB) |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
Front: 152.4–406.4 mm (6.0–16), Rear: 314.96–711.2 mm (12.4–28) |
Components & Features
|
Specification |
Details |
|
Drive |
2WD |
|
PTO Type |
540 RPM |
|
Hydraulic System |
ADDC Hydraulics, Lift Capacity: 1,200 kg |
|
Tow Hooks |
Tipping Trailer Connection |
|
Additional Options |
Coolant Recovery Bottle, Heavy Duty Bumper |
|
Wheelbase |
1,835 mm |
