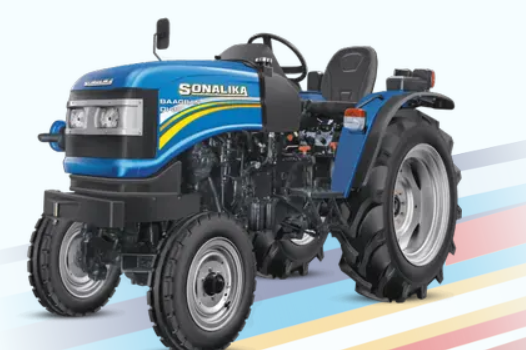

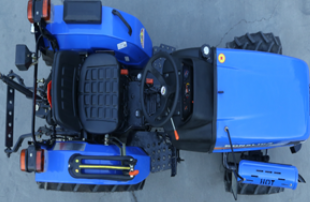

Sonalika DI-30 Baagban – 2WD Orchard/Vineyard Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Sonalika DI-30 Baagban HDM 2WD S1 |
|
Vehicle Category |
Orchard/Vineyard Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Row Crops (Pomegranate, Sugarcane, Betel Nut, Papaya) |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4-Stroke Water-Cooled, 2-Cylinder, 2,044 cc, Dry Air Cleaner with Choking Sensor |
|
Maximum Power |
30 HP (22.4 kW) @ 1,800 RPM |
|
Transmission Type |
Sliding Mesh with Centre Shift, 8 Forward + 2 Reverse, Forward: 1.60–23.64 km/h, Reverse: 2.35–9.24 km/h, Single Clutch |
|
Steering |
Power Steering or Mechanical |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Oil Immersed Brakes (OIB) or Dry Disc Brakes |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
Front: 127–381 mm (5.0–15), Rear: 241.3–609.6 mm (9.5–24) |
Components & Features
|
Specification |
Details |
|
Drive |
2WD (4WD Optional) |
|
PTO Type |
540 RPM |
|
Hydraulic System |
ADDC Hydraulics, Lift Capacity: 1,250 kg, Category 1N with Combi Ball, Transport Lock |
|
Tow Hooks |
Yes |
|
Additional Options |
Beneath Hood with Down Draft Silencer, Bumper, Ballast Weight, Top Link, Canopy |
|
Weight |
1,390 kg |
|
Wheelbase |
1,628 mm |
|
Ground Clearance |
310 mm |
|
Dimensions |
Width: 1,090 mm |
