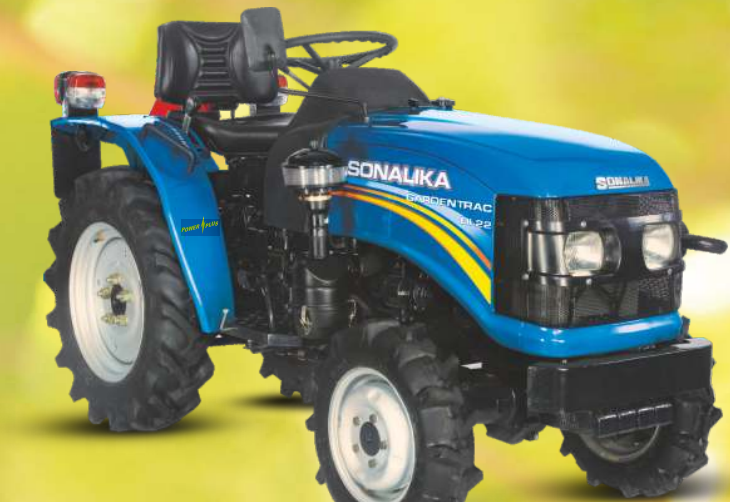

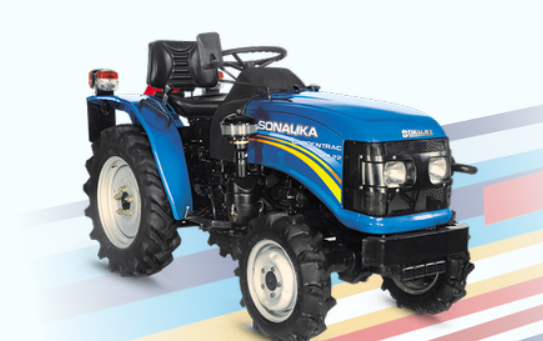

Sonalika DI-22 PP Gardentrac S1 – 4WD Orchard/Vineyard Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Sonalika DI-22 PP Gardentrac S1 |
|
Vehicle Category |
Orchard/Vineyard Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Row Crops (Groundnuts, Pomegranate, Sugarcane, Cotton, Grapes), Rotavator, Harrow, Spraying, Ploughing, Transportation |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
3-Cylinder, 979 cc, Wet Type Air Cleaner, Aluminium Radiator with Coolant Reservoir |
|
Maximum Power |
24 HP |
|
Transmission Type |
6 Forward + 2 Reverse, Forward: 1.73–21.30 km/h or 1.84–22.92 km/h, Reverse: 2.37–8.71 km/h or 2.52–9.26 km/h |
|
Steering |
Mechanical |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Oil Immersed Brakes, Latch Type Hand Brake |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
Front: 127–304.8 mm (5.0–12) or 152.4–304.8 mm (6.0–12), Rear: 203.2–457.2 mm (8.0–18) or 210.82–508 mm (8.3–20) |
Components & Features
|
Specification |
Details |
|
Drive |
4WD |
|
PTO Type |
540 and 540E |
|
Hydraulic System |
Lift Capacity: 750 kg, Category 1N, Transport Lock |
|
Tow Hooks |
Yes |
|
Weight |
850 kg |
|
Wheelbase |
1,430 mm |
|
Ground Clearance |
200 mm |
|
Dimensions |
Width: 1,080 mm, Height: 1,290 mm |
