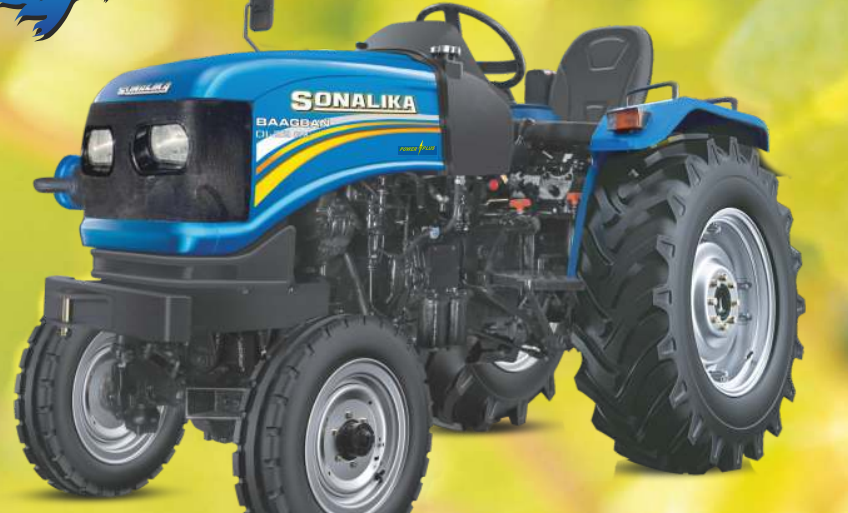

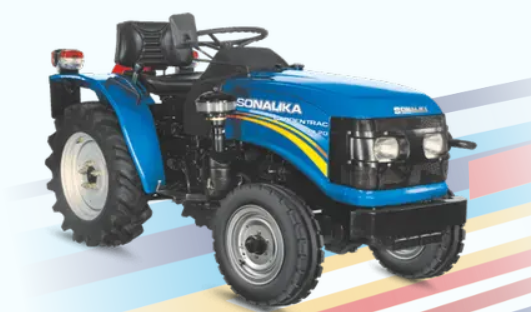

Sonalika DI-22 2WD Gardentrac S2 – 2WD Orchard/Vineyard Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Sonalika DI-22 2WD Gardentrac S2 |
|
Vehicle Category |
Orchard/Vineyard Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Row Crops (Groundnuts, Pomegranate, Sugarcane, Cotton, Grapes) |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
3-Cylinder, 979 cc, Wet Type Air Cleaner, Aluminium Radiator with Coolant Reservoir |
|
Maximum Power |
24 HP |
|
Transmission Type |
6 Forward + 2 Reverse, Forward: 2.26–26.56 km/h or 2.41–28.24 km/h, Reverse: 3.27–18.30 km/h or 3.47–19.36 km/h |
|
Steering |
Mechanical |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Oil Immersed Brakes or Dry Disc Brakes, Latch Type Hand Brake |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
Front: 132.08–355.6 mm (5.2–14), Rear: 210.82–508 mm (8.3–20) |
Components & Features
|
Specification |
Details |
|
Drive |
2WD |
|
PTO Type |
540 and 540E |
|
Hydraulic System |
Lift Capacity: 750 kg, Category 1N, Transport Lock |
|
Tow Hooks |
Yes |
|
Weight |
820 kg |
|
Wheelbase |
1,400 mm |
|
Ground Clearance |
200 mm |
|
Dimensions |
Width: 1,080 mm, Height: 1,315 mm |
