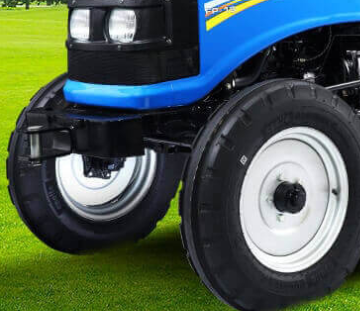

Sonalika DI 18 Gardentrac – 18 HP Tractor for Small Farms
Specifications
|
Specification |
Details |
|
Tractor Model |
Sonalika DI 18 Gardentrac |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
1 cylinder, Naturally aspirated, Dry type air cleaner, Cubic capacity: 863.5 cc, Rated RPM: 2300 ± 75, Max Torque: 54 Nm at 1200 ± 200 RPM, Updraft silencer |
|
Gross Horsepower |
18 HP (13.2 kW) |
|
Transmission Type |
Sliding mesh, 6 Forward + 2 Reverse, 2WD |
|
Speed Range |
2.01 km/h (min) to 25.19 km/h (max) |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Oil-immersed brakes, Mechanical actuation, Independent parking brakes |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size |
Front: 5.25-14, Rear: 8-18 |
Components & Features
|
Specification |
Details |
|
PTO Type |
540 & 540E, Mechanical actuation |
|
Hydraulic System |
CAT 1 3-point linkage, Anchor chain stay bars, 1TA auxiliary hydraulic circuit, Lifting capacity: 700 kg, Lift rods |
|
Fuel Tank Capacity |
28 L |
|
Width |
1165 mm |
|
Wheelbase |
1485 mm |
|
Track Width |
Front: 970 mm, Rear: 935 mm |
|
Max Length |
2745 mm |
|
Max Height |
1780 mm (up to muffler) |
|
Features |
Front toe hook, Battery: 12V, 65 Ah, Alternator: 12V, 36 H, Mechanical steering |
