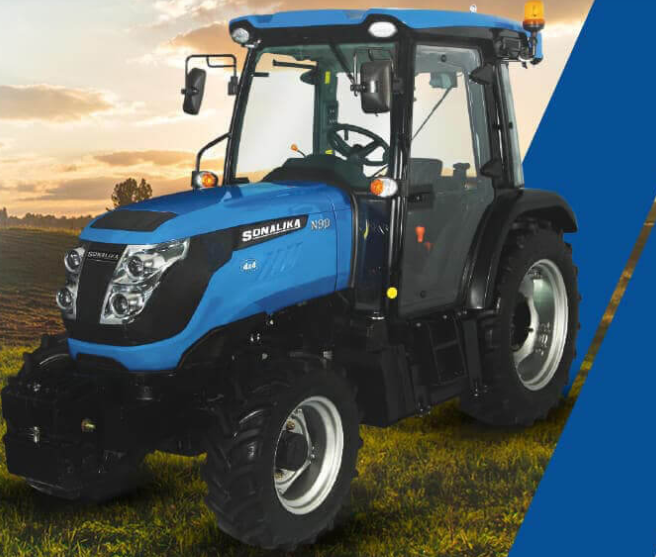

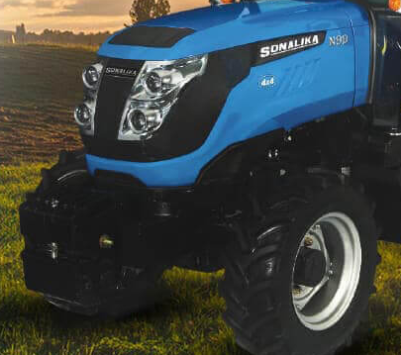

Sonalika 90 WT – 90 HP 4WD Tractor for Heavy-Duty Farming
Specifications
|
Specification |
Details |
|
Tractor Model |
Sonalika 90 WT |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Rotavator, Front End Loader, Cultivator, Disc Harrow, Trailer, Planter, Rotary Slasher |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4 Cylinder, Turbo Charged, Dry type air cleaner with clogging sensor, Cubic capacity: 4087 cc, Rated RPM: 2200, Max Torque: 339 Nm (±5%) at 1400±100 RPM, Underhood downdraft silencer and upward exhaust, Cold start (optional), Stage IIIA (optional) |
|
Gross Horsepower |
90 HP (67.1 kW) |
|
Transmission Type |
Synchronmesh, Dual clutch, 12 Forward + 12 Reverse, 4WD |
|
Speed Range |
1.69 km/h (min) to 35.73 km/h (max) at 2200 RPM |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Oil-immersed brakes, Mechanical actuation, Independent parking brake, Optional trailer brake (HTB/ATB) |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size |
Front: 12.4-24, Rear: 18.4-30, Optional Creeper: Front 13.6-24, Rear 16.9-34 or 13.6-38, Optional Radial: Front 320/85R24, Rear 460/85R30 |
Components & Features
|
Specification |
Details |
|
PTO Type |
540/540E, 540/1000 (optional), Mechanical actuation |
|
Hydraulic System |
CAT-II 3-point linkage, Adjustable stay bars, Lifting capacity: 2500 kg (3000 kg optional), 2SA/2DA auxiliary hydraulic circuit, Standard lift rods |
|
Fuel Tank Capacity |
65 L + 25 L (auxiliary) |
|
Width |
1910 mm |
|
Wheelbase |
2350 mm |
|
Track Width |
Front: 1495-1835 mm, Rear: 1500-1900 mm |
|
Max Length |
4330 mm |
|
Max Height |
2820 mm (up to ROPS) |
|
Features |
Powerful 90 HP 4-cylinder engine, Heavy duty 3000 kg lifting capacity, Reinforced safety features with metallic body for comfort and safety, Heavy duty 2WD/4WD variants, Synchronmesh 12F+12R transmission with jerk-free and noise-free gear shifting, HVAC/heater cabin (optional), Standard front mudguard, Optional trailer brake (HTB/ATB), Differential lock (foot-operated), Battery: 12V, 88 Ah or 110 Ah, Alternator: 12V, Seven-pin trailer socket, Clutch safety switch, PTO safety switch, Neutral safety switch, Fuel indicator gauge, Standard front tow hook (inbuilt in front weight), Front and rear weights with standard ballast (Front: 2x30 kg and 4x24 kg, Rear: 4x24 kg), Swinging drawbar, ROPS, Power steering |
