Specification

Details

Tractor Model

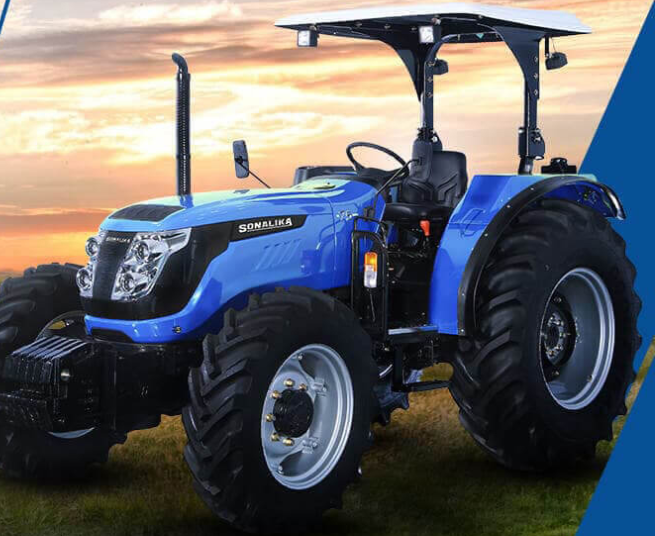

Sonalika 75 WT

Vehicle Category

Tractor

Fuel Type

Diesel

Application

Rotavator, Front End Loader, Cultivator, Disc Harrow, Trailer, Planter, Rotary Slasher

Specification

Details

Engine

4 Cylinder, Turbocharged, Dry air cleaner with clogging sensor, Cubic capacity: 3707 cc, Rated RPM: 2200, Max Torque: 278 Nm at 1200 RPM, Underhood downdraft silencer and upward exhaust, Cold start

Gross Horsepower

75 HP (55.9 kW)

Transmission Type

Synchromesh, Dual clutch, 12 Forward + 12 Reverse, 4WD

Speed Range

1.69 km/h (min) to 33.73 km/h (max) at 2200 RPM

Specification

Details

Braking System

Oil-immersed brakes, Mechanical actuation, Independent parking brake, Optional trailer brake (HTB/ATB)

Specification

Details

Tyre Size

Front: 11.2-24, Rear: 16.9-30, Optional: Front 12.4x24, Rear 18.4x30 or 13.6x38, 2WD: Front 7.5x16, Rear 16.9x30, Radial: Front 280/85R24, Rear 420/85R30

Specification

Details

PTO Type

540/540E, Mechanical actuation

Hydraulic System

CAT-II 3-point linkage, Adjustable stay bars, Lifting capacity: 2500 kg (3000 kg optional), 2DA/2SA auxiliary hydraulic circuit, Standard lift rods

Fuel Tank Capacity

64 L

Width

1910 mm

Wheelbase

2350 mm

Track Width

Front: 1615-1910 mm, Rear: 1515-1805 mm

Max Length

4330 mm

Max Height

2775 mm (up to ROPS)

Features

Agile 4-cylinder engine, Constant mesh 8F+2R transmission with jerk-free and noise-free gear shifting, Heavy duty lifting capacity (2500 kg, 3000 kg optional), Parallelogram loader option for swift and easy loader operations, Integrated safety HVAC/heater canopy (optional), Standard front mudguard, Differential lock (foot-operated), Battery: 12V, 88 AH or 110 AH, Alternator: 12V, 90 Amps, Seven-pin trailer socket, Clutch safety switch, PTO safety switch, Neutral safety switch, Fuel indicator gauge, Standard front tow hook (inbuilt in front weight), Swinging drawbar, ROPS, Power steering
