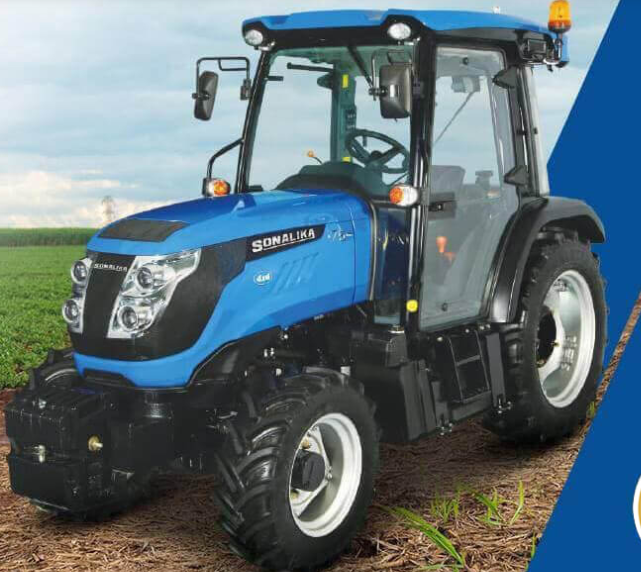

Sonalika 75 RX – 75 HP 4WD Tractor for Heavy-Duty Farming
Specifications
|
Specification |
Details |
|
Tractor Model |
Sonalika 75 RX |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Rotavator, Front End Loader, Cultivator, Disc Harrow, Trailer, Planter, Rotary Slasher |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4100FLT, 4 cylinders, Turbo Charged, Dry type air cleaner with clogging sensor, Cubic capacity: 3707 cc, Rated RPM: 2200, Max Torque: 278 Nm (±5%) at 1300 RPM, Elliptical upward exhaust, Cold start |
|
Gross Horsepower |
75 HP (55.9 kW) |
|
Transmission Type |
Swift Shift, Dual clutch, 8 Forward + 2 Reverse, 4WD |
|
Speed Range |
1.95 km/h (min) to 36.46 km/h (max) at 2200 RPM |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Oil-immersed brakes, Mechanical actuation, Independent parking brake |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size |
Front: 11.2-24 (2WD: 7.5-16), Rear: 16.9-30 |
Components & Features
|
Specification |
Details |
|
PTO Type |
540, Mechanical actuation |
|
Hydraulic System |
CAT-II 3-point linkage, Adjustable stay bars, Lifting capacity: 2500 kg, 1DA+1SA auxiliary hydraulic circuit, Standard lift rods |
|
Fuel Tank Capacity |
65 L |
|
Width |
1942 mm |
|
Wheelbase |
2307 mm |
|
Track Width |
Front: 1672 mm, Rear: 1515 mm |
|
Max Length |
3997 mm |
|
Max Height |
2620 mm (up to ROPS) |
|
Features |
Agile 4-cylinder engine, Constant Mesh 8F+2R transmission with jerk-free and noise-free gear shifting, Heavy duty lifting capacity (2500 kg), Parallelogram loader option for swift and easy loader operations, Integrated safety HVAC cabin (optional), Differential lock (foot-operated), Battery: 12V, 110/88 Ah, Alternator: 12V, 36 Amps, Seven-pin trailer socket, Neutral safety switch, Clutch safety switch, Fuel indicator gauge, Standard front tow hook (inbuilt in front weight), Front and rear weights with standard ballast (Front: 2x30 kg, 4x25 kg, Rear: 1x34 kg), Swinging drawbar, ROPS, 2WD variant (optional), Power steering |
