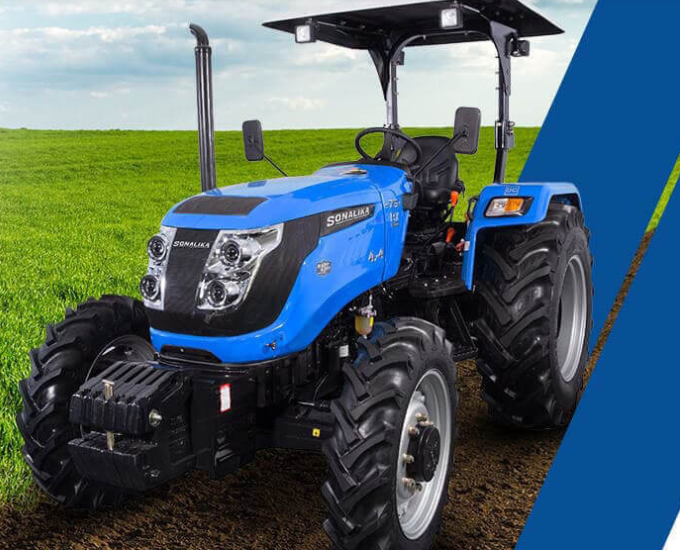

Sonalika 75 N – 4WD Multi-Utility Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Sonalika 75 N |
|
Vehicle Category |
Multi-Utility Tractor (Orchard/Vineyard Specialist) |
|
Fuel Type |
Diesel |
|
Application |
Rotavator, Front End Loader, Cultivator, Disc Harrow, Trailer, Planter, Rotary Slasher |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4100 FLT Inline, 4-Cylinder, Turbo Charged, 3707 cc, Dry Type Air Cleaner with Clogging Sensor, Cold Start |
|
Maximum Power |
75 HP @ 2,200 RPM |
|
Maximum Torque |
278 Nm @ 1,200 RPM |
|
Transmission Type |
Synchro Mesh, 12 Forward + 12 Reverse, Double Clutch, Carraro Driveline |
|
Steering |
Power Steering |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Oil Immersed Brakes, Mechanical Actuation, Independent Parking Brake |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
Front: 203.2–457.2 mm (8x18) or 165.1–406.4 mm (6.5x16, 2WD); Rear: 378.46–609.6 mm (14.9x24); Optional: Front: 210/95 R18 or 280/70 R18 or 260/70 R16, Rear: 360/70 R28 or 360/70 R24 |
Components & Features
|
Specification |
Details |
|
Drive |
4WD, 4WD Front Axle (2WD Variant with 6.5x16 Front Tyre) |
|
PTO Type |
540/540E RPM, Mechanical Actuation |
|
Hydraulic System |
Lift Capacity: 2500 kg, CAT-II 3-Point Linkage, Standard Stay Bars, 2DA/2SA Auxiliary Circuit |
|
Additional Features |

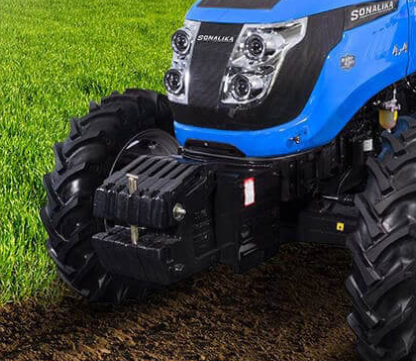

Fuel Indicator Gauge, Front Tow Hook (Inbuilt in Front Weight), Front Weights (72 kg Base + 6x31 kg), Rear Weights (2x30 kg), Swinging Drawbar Trailer Hitch, Mid Mounted Foldable ROPS, Neutral Safety Switch, Clutch Safety Switch, HVAC/Heater Cabin (Optional), Front Mudguard, Hydraulic Trailer Brake (HTB) |
|
Capacities |
Fuel Tank: 71 L |
|
Weight |
Not Provided |
|
Wheelbase |
2306 mm |
|
Ground Clearance |
265 mm |
|
Dimensions |
Length: 4240 mm, Width: 1475 mm, Height: 2700 mm (Up to ROPS) |
