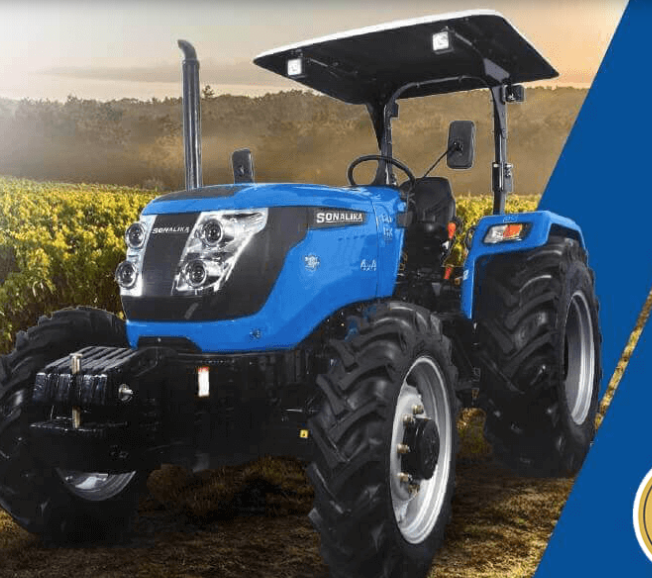

Sonalika 60 4 Cylinder – 4WD Multi-Utility Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Sonalika 60 4 Cylinder |
|
Vehicle Category |
Multi-Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Rotavator, Front End Loader, Cultivator, Disc Harrow, Trailer, Planter, Rotary Slasher |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4100 FL, 4-Cylinder, Natural Aspiration, 3707 cc, Dry Type Air Cleaner with Clogging Sensor, Cold Start |
|
Maximum Power |
60 HP @ 2,200 RPM |
|
Maximum Torque |
230 Nm @ 1,300 RPM |
|
Transmission Type |
Swift Shift, 8 Forward + 2 Reverse, Dual Clutch |
|
Steering |
Power Steering |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Oil Immersed Brakes, Mechanical Actuation, Independent Type Parking Brake |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
Front: 241.3–609.6 mm (9.5x24), Rear: 429.26–711.2 mm (16.9x28) or 429.26–762 mm (16.9x30, 4WD) |
Components & Features
|
Specification |
Details |
|
Drive |
4WD, 4WD Front Axle (2WD Variant with 7.5x16 Front Tyre) |
|
PTO Type |
540 RPM, Mechanical Actuation |
|
Hydraulic System |
Lift Capacity: 2000 kg, CAT-II 3-Point Linkage, Adjustable Stay Bars, 1DA+1SA Auxiliary Circuit |
|
Additional Features |

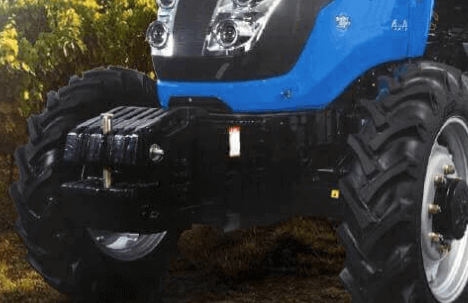

Fuel Indicator Gauge, Front Tow Hook (Inbuilt in Front Weight), Front Weights (31 kg x 6, Rear 34 kg x 1 per Tyre), Swinging Drawbar Trailer Hitch, ROPS, Clutch Safety Switch, PTO Safety Switch, Neutral Safety Switch, Integrated Safety HVAC Cabin (Optional), Parallelogram Loader Option |
|
Capacities |
Fuel Tank: 65 L |
|
Weight |
2742 kg |
|
Wheelbase |
2307 mm |
|
Ground Clearance |
293 mm |
|
Dimensions |
Length: 3997 mm, Width: 1942 mm, Height: 2620 mm (Up to ROPS) |
