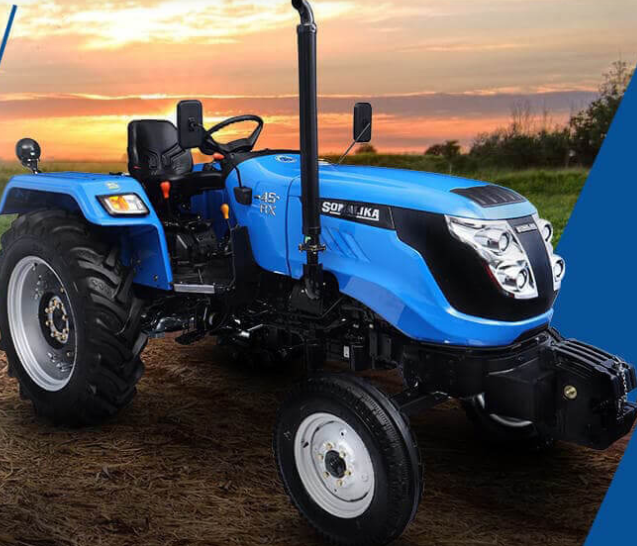

Sonalika 45 – 45 HP 2WD Tractor for Heavy-Duty Farming
Specifications
|
Specification |
Details |
|
Tractor Model |
Sonalika 45 |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Rotavator, Front End Loader, Cultivator, Disc Harrow, Trailer |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
3100 FLS with coldstart, Naturally aspirated, Dry air cleaner with clogging sensor, Cubic capacity: 2780 cc, Rated RPM: 2000, Max Torque: 174 Nm (±5%) at 1200 RPM (±100), Updraft upward exhaust |
|
Gross Horsepower |
45 HP (33.1 kW) |
|
Transmission Type |
Constant mesh, Dual clutch, 8 Forward + 2 Reverse, 2WD, 2WD front axle |
|
Speed Range |
2.25 km/h (min) to 31.74 km/h (max) at 2000 RPM |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Oil-immersed brakes, Mechanical actuation, Standard parking brake |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size |
Front: 6x16, Rear: 13.6x28 |
Components & Features
|
Specification |
Details |
|
PTO Type |
540, Mechanical actuation |
|
Hydraulic System |
CAT-II 3-point linkage, Adjustable stay bars, Lifting capacity: 1200 kg, 1SA + 2DA auxiliary hydraulic circuit, Lift rods |
|
Fuel Tank Capacity |
55 L |
|
Width |
1715 mm |
|
Wheelbase |
1975 mm |
|
Track Width |
Front: 1315 mm, Rear: 1345 mm |
|
Max Length |
3630 mm |
|
Max Height |
2310 mm (up to exhaust pipe) |
|
Features |
Powerful agile high backup torque engine, 8F+2R swift shift transmission with jerk-free and noise-free gear shifting, Heavy duty lifting capacity, Easy front and loader attachment, Heavy duty 2WD/4WD variants, Differential lock (mechanical), Battery: 12V, 88 Ah, Alternator: 12V, 36 Amps, Seven-pin trailer socket, Neutral safety switch, Fuel indicator gauge, Front tow hook (inbuilt in front weight), Front and rear weights with standard ballast (base weight 54 kg, 1x34 kg rear each wheel), Standard rear tow hook, Swinging drawbar with linkage crossbar, Power steering |
