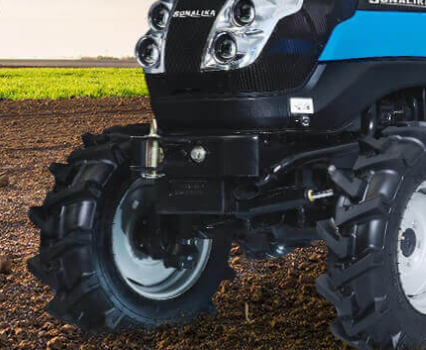

Sonalika 30 – 30 HP 4WD Tractor for Small Farms
Specifications
|
Specification |
Details |
|
Tractor Model |
Sonalika 30 |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Rotavator, Front End Loader, Cultivator, Disc Harrow, Rotary Slasher |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Mitsubishi, 3 cylinders, Naturally aspirated, Dry type air cleaner with clogging sensor, Cubic capacity: 1318 cc, Rated RPM: 3000, Max Torque: 82 Nm (±5%) at 2000 RPM, Underhood downdraft exhaust |
|
Gross Horsepower |
30 HP (22.1 kW) |
|
Transmission Type |
Sliding mesh, Single clutch, 6 Forward + 2 Reverse, 4WD |
|
Speed Range |
1.82 km/h (min) to 17.06 km/h (max), varies with tyres |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Oil-immersed brakes, Mechanical actuation, Latch-type parking brake |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size |
Front: 7x14, Rear: 8.30-24, Optional: Agricultural (Front: 6x12, Rear: 8.3x20), Radial Agricultural (Front: 6.5/80-12, Rear: 280/70 R18), Turf & Industrial (Front: 23x8.5-12, Rear: 33x15.5-16.5), Industrial Galaxy Pro (Front: 220/55 R12, Rear: 280/70 R16) |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear 540 & 1000 RPM, Mechanical actuation |
|
Hydraulic System |
Cat 1-N 3-point linkage, Anchor chain stay bars, Lifting capacity: 600 kg, 1DA/1SA auxiliary hydraulic circuit (optional), Standard lift rods, Flow: 14.8 LPM |
|
Fuel Tank Capacity |
26.5 L |
|
Width |
1165 mm |
|
Wheelbase |
1570 mm |
|
Track Width |
Front: 950 mm, Rear: 870 mm |
|
Max Length |
2760 mm |
|
Max Height |
2000 mm (up to ROPS) |
|
Features |
High lifting capacity, Power-packed engine, Twin projector headlamps, Agri, industrial, and turf tyre options, Reinforced safety features, Differential lock (foot-operated), Battery: 12V, 65 Ah, Alternator: 12V, 42 Amp, Clutch safety switch, Standard trailer hitch, E-marked swinging bar trailer hitch (optional), Standard detachable front tow hook, Power steering |
