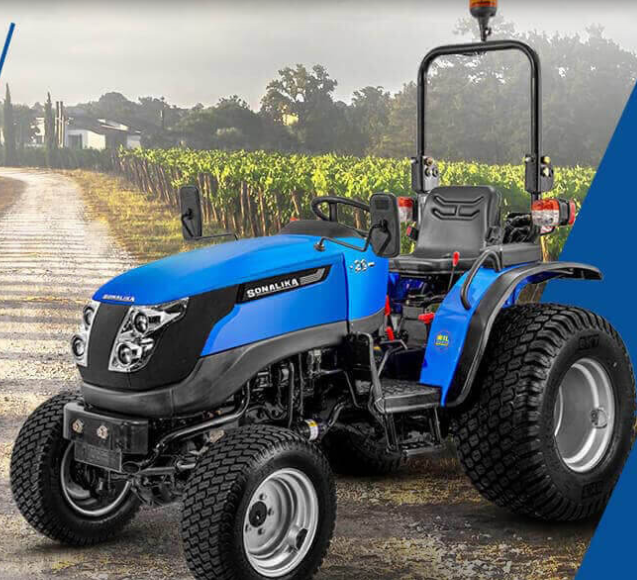

Sonalika 26 – 4WD Compact Multi-Utility Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Sonalika 26 |
|
Vehicle Category |
Compact Multi-Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Implied: Tillage, Planting, Haulage |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Mitsubishi 3-Cylinder, 1318 cc, Natural Aspiration, Dry Type Air Cleaner, Cold Start |
|
Maximum Power |
26 HP @ 2,700 RPM |
|
Maximum Torque |
76.3 Nm @ 2,700 RPM |
|
Transmission Type |
Sliding Mesh, 6 Forward + 2 Reverse, Single Clutch |
|
Steering |
Power Steering |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Oil Immersed Brakes, Mechanical Actuation, Independent Parking Brake |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
Front: 152.4–304.8 mm (6.00–12), Rear: 210.8–508 mm (8.30–20); Optional Turf/Industrial: Front 584.2–215.9 mm (23x8.50–12), Rear 838.2–393.7 mm (33x15.50–16.5) |
Components & Features
|
Specification |
Details |
|
Drive |
4WD, 4WD Front Axle |
|
PTO Type |
540, 1000, Mechanical Actuation |
|
Hydraulic System |
Lift Capacity: 600 kg, Cat-I 3-Point Linkage, Anchor Chain Stay Bars, 1DA/1SA Auxiliary Circuit (Optional), 18 LPM Flow |
|
Additional Features |
Twin Projector Headlamps, Fuel Indicator Gauge, Front Tow Hook, Front Weights (15 kg x 2), Clevis Hitch, Swinging Drawbar (Optional), ROPS, Clutch Safety Switch, PTO Safety Switch, Neutral Safety Switch, Reliable Mechanical Design |
|
Capacities |
Fuel Tank: 26.5 L |
|
Weight |
960 kg |
|
Wheelbase |
1560 mm |
|
Ground Clearance |
255 mm |
|
Dimensions |
Length: 2725 mm, Width: 1058 mm, Height: 2153 mm (Up to ROPS) |
