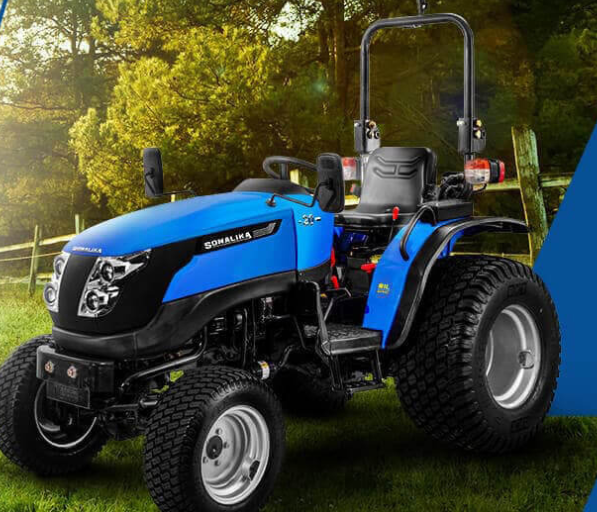

Sonalika 20 – 20 HP 4WD Tractor for Small Farms
Specifications
|
Specification |
Details |
|
Tractor Model |
Sonalika 20 |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Rotavator, Front End Loader, Cultivator, Disc Harrow, Rotary Slasher |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Mitsubishi 3 Cylinder, Naturally aspirated, Dry type air cleaner, Cubic capacity: 952 cc, Rated RPM: 2700, Max Torque: 50 Nm, Underhood downdraft silencer, Cold start |
|
Gross Horsepower |
20 HP (14.7 kW) |
|
Transmission Type |
Sliding mesh, Single clutch, 6 Forward + 2 Reverse, 4WD, 4WD front axle |
|
Speed Range |
1.3 km/h (min) to 15.26 km/h (max) at 2700 RPM |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Dry drum brakes, Mechanical actuation, Independent parking brake |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size |
Front: 5.00-12, Rear: 8.00-18, Optional: Turf/Industrial (Front: 23x8.50-12, Rear: 33x15.50-16.5) |
Components & Features
|
Specification |
Details |
|
PTO Type |
540, 540E, 1000 (optional), Mechanical actuation |
|
Hydraulic System |
CAT-I 3-point linkage, Anchor chain stay bars, 1DA/1SA auxiliary hydraulic circuit (optional), Lifting capacity: 500 kg, Lift rods, 12 LPM flow rate |
|
Fuel Tank Capacity |
26.5 L |
|
Width |
925 mm |
|
Wheelbase |
1420 mm |
|
Track Width |
Front: 820 mm, Rear: 725 mm |
|
Max Length |
2710 mm |
|
Max Height |
1925 mm (up to ROPS) |
|
Features |
In-house powerful 3-cylinder engine, Jerk-free and noise-free gear shifting, Twin projector headlamps for better night visibility, Multiple tyre options for grass, paddy, and industrial applications, Reinforced safety features for comfort and safety, Differential lock (foot-operated), Battery: 12V, 65 Ah, Alternator: 12V, 42 Amp, Fuel indicator gauge, Front tow hook, Front weights (2x15 kg), Trailer hitch (Clevis hitch, optional swinging drawbar), ROPS, Clutch safety switch, PTO safety switch, Neutral safety switch, Power steering |
