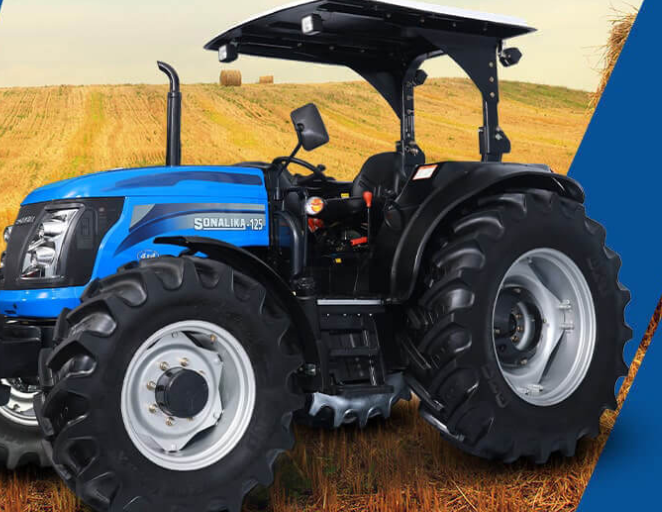

Sonalika 125 – 125 HP 4WD Tractor for Heavy-Duty Farming
Specifications
|
Specification |
Details |
|
Tractor Model |
Sonalika 125 |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Rotavator, Front End Loader, Cultivator, Disc Harrow, Trailer, Planter, Rotary Slasher |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
6 Cylinder, Turbocharged with intercooler, Three stage dry type air cleaner, Displacement: 6.127 L, Bore/Stroke: 105/118 mm, Max Torque: 475 Nm |
|
Gross Horsepower |
125 HP (93.2 kW) |
|
Transmission Type |
Synchromesh, Double clutch, 24 Forward + 24 Reverse, 4WD, 4WD engagement (electrical switch operated) |
|
Speed Range |
0.67 km/h (min) to 40 km/h (max) |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Wet disk brakes, Hydraulic actuation, Mechanical hand-operated parking brake, HTB trailer brakes (standard) |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size |
Front: 380/85R24, Rear: 460/85R34 |
Components & Features
|
Specification |
Details |
|
PTO Type |
540/540E, 540/1000 (optional), Mechanical operated lever |
|
Hydraulic System |
CAT-II 3-point linkage, Electronic lift (EHR), Position and draft control, Lifting capacity: 4500 kg, 3DA, 2SA convertible with 1 detent auxiliary hydraulic circuit |
|
Fuel Tank Capacity |
150 L |
|
Width |
2260 mm |
|
Wheelbase |
2645 mm |
|
Track Width |
Front: 1760 mm, Rear: 1724 mm |
|
Max Length |
4660 mm |
|
Max Height |
2660 mm |
|
Features |
Agile 6-cylinder engine, Heavy lift capacity (4500 kg), Available in cabin/ROPS, 3DA, 2SA convertible with 1 detent auxiliary hydraulic circuit, Differential lock (electrical switch operated), Battery: 12V, 110 Ah, Alternator: 12V, 90 Amp, Seven-pin trailer socket, Neutral safety switch, PTO safety switch, Clutch safety switch, Fuel indicator gauge, Registration plate with light, Standard front tow hook, Front and rear weights (Front: 31x8 + 72 kg base weight, optional 31x10; Rear: 40x2 kg), Ladder hitch drawbar, Standard canopy, Optional cabin, Standard front mudguard, Mechanical suspension driver seat, Power steering |
