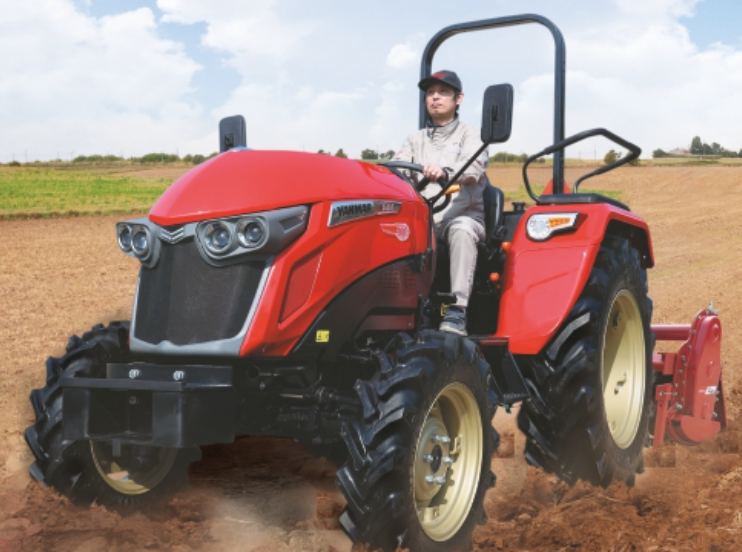

Solis YM 348A 4WD – Agricultural Tractor by Solis Yanmar
Specifications
|
Specification |
Details |
|
Tractor Model |
YM 348A 4WD |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |

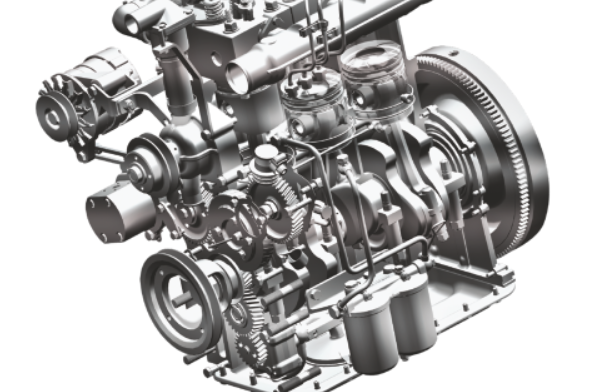

4-Cylinder, Diesel, Monoplunger FIP, Balancer Shaft, Underhood Exhaust System |
|
Engine Power |
48 HP |
|
Number of Cylinders |
4 |
|
Engine Displacement |
3054 cc |
|
Rated RPM |
2100 RPM |
|
Air Filter |
Dry Type |
|
Cooling System |
Liquid-cooled |
|
Torque |
207.4 Nm |
|
Clutch |
Dual |
|
Transmission Type |
Fully Synchromesh with Synchro-Reverser |
|
Number of Gears |
8 Forward + 8 Reverse |
|
Forward Speeds |
Up to 29.78 km/h |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Oil Immersed Brakes |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
8.00 x 18 inches |
|
Rear Tyres |
13.6 x 28 inches |
Components & Features
|
Specification |
Details |
|
Maximum Lifting Capacity |
1450 kg |
|
Power Take Off |
540 RPM |
|
PTO HP |
41.2 HP |
|
Total Weight |
1960 kg |
|
Fuel Tank Capacity |
50 Litres |
|
Hydraulic Controls |
Hydrotronic ADDC |
|
Additional Features |
Japanese Technology, Monoplunger FIP with Balancer Shaft and Underhood Exhaust System for Zero Noise and Vibration, Fully Sealed Tractor, Lightweight Design, Low Turning Radius, High Ground Clearance, LED-Guided Projector Headlamps, ROPS, Seat Belt, Hydraulic Push-Button PTO, Intuitive Dashboard with Clear Indicators, Designed for Puddling, Potato Sowing, Dozer, and Loader |
|
Warranty |
5 Years or 5000 Hours |
|
Steering Type |
Power Steering |
|
Overall Length |
3550 mm |
|
Overall Width |
1750 mm |
|
Wheelbase |
1920 mm |
