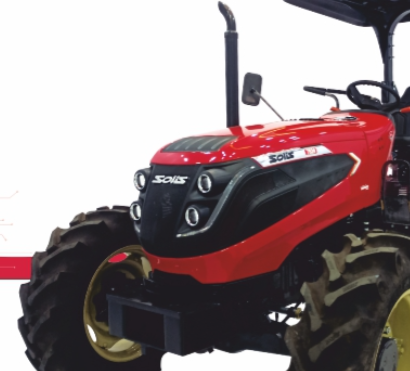

Solis 7524 4WD – Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Solis 7524 4WD |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tasks (Puddling, Potato Sowing, Tilling, Hauling) |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
CRDi, 4-cylinder, Diesel, Water-Cooled |
|
Number of Cylinders |
4 |
|
Engine Rated RPM |
2200 |
|
Engine Power |
75 HP |
|
Transmission Type |
Fully Synchromesh with Shuttle Shift |
|
Drive Type |
4WD |
|
Number of Gears |
12 Forward + 12 Reverse |
|
Forward Speed Range |
Up to 33.73 km/h |
|
Power Range |
75 HP |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Multi Disc Outboard Oil Immersed Brakes |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyre Size |
11.2 x 24 inches |
|
Rear Tyre Size |
16.9 x 30 inches |
Components & Features
|
Specification |
Details |
|

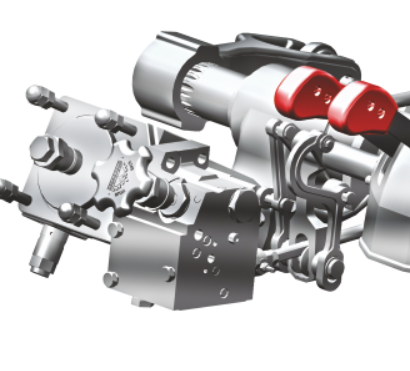

Hydraulic Control System |
ADDC |
|
Three Point Linkage |
Category II |
|
Lifting Capacity |
2200 kg |
|
PTO Type |
Standard + Reverse PTO + Independent PTO |
|
PTO Speed |
540 r/min |
|
PTO Power |
63 HP |
|
Clutch Type |
Double |
|
Engine Displacement |
4712 cc |
|
Maximum Torque |
290 Nm |
|
Driving Modes |
Three Modes (Diesel Saving, Normal, Power) |
|
Fuel Pump |
CRDi |
|
Weight |
2450 kg |
|
Wheelbase |
2210 mm |
|
Overall Length |
3760 mm |
|
Overall Width |
1990 mm |
|
Air Filter Type |
Dry Type |
|
Cooling System |
Water-Cooled |
|
Fuel Tank Capacity |
65 litres |
|
Operator Platform |
Large and Spacious with Ergo-Designed Seating |
|
Accessories |
LED-Guided Headlights, Twin Projector Headlamps, Adjustable Seat, ROPS, Digital Dashboard, Canopy, Additional Front Weights, Front Tyre Mud Flaps, Fender Seat, Side Support and Flap, High Ground Clearance, Advanced Cooling Technology, Heavy-Duty Construction |
|
Neutral Safety Switch |
Yes |
|
Warranty |
5 Years or 5000 Hours |
|
Steering Type |
Hydrostatic (Power) |
