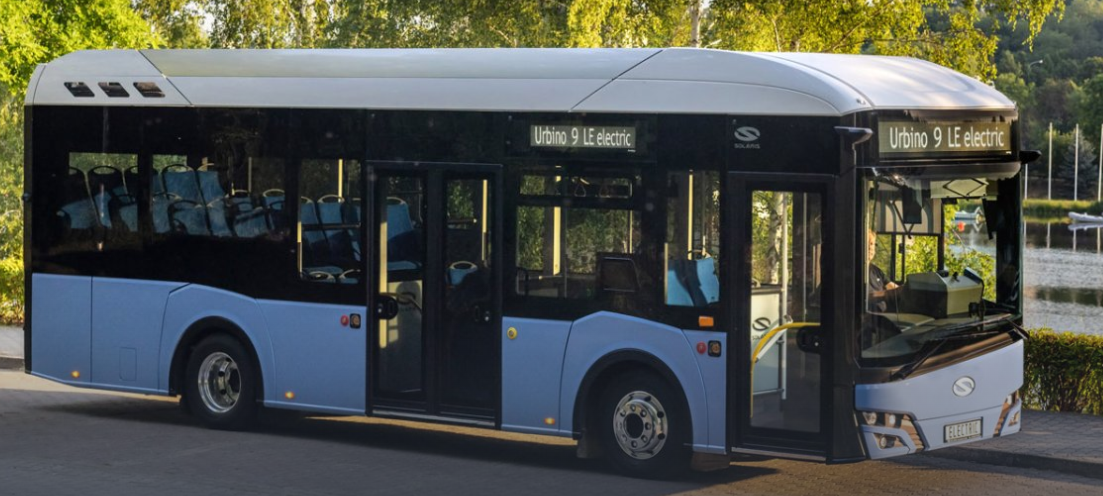

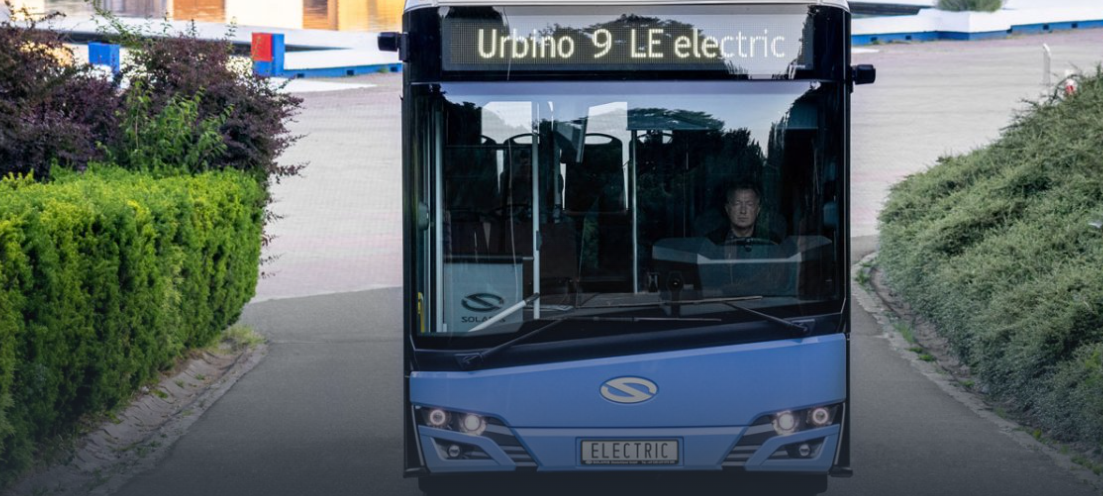

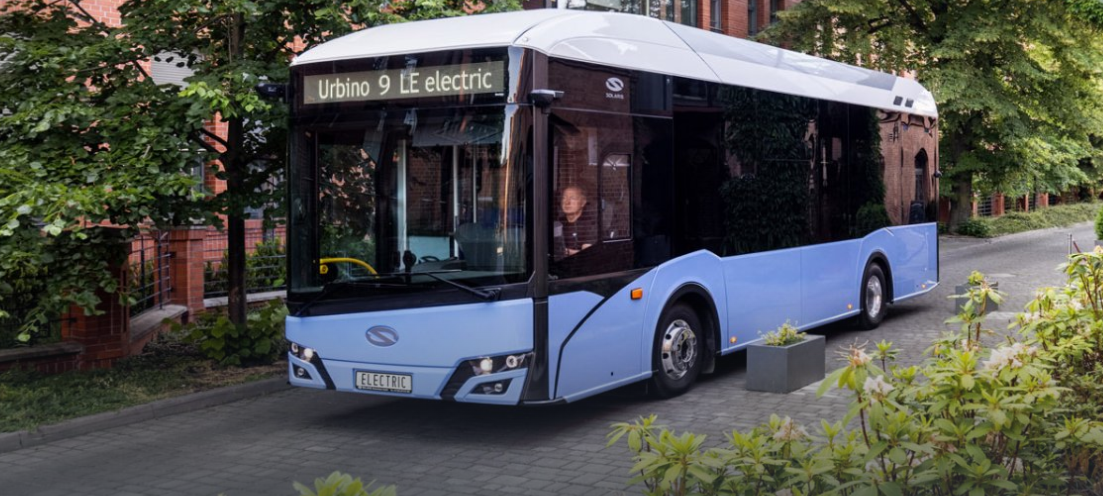

Solaris Urbino 9 LE Electric – Electric City and Intercity Bus by Solaris Bus & Coach
Specifications
|
Specification |
Details |
|
Bus Model |
Urbino 9 LE Electric |
|
Vehicle Category |
Low-Entry Bus |
|
L x W x H |
9100 x 2550 x 3400 mm |
|
Wheelbase |
4500 mm |
|
Fuel Type |
Electric |
|
Application |
Electric City and Intercity Bus |
|
Door Arrangement |
1-2 |
|
Entrance Height |
320 mm (265/70R19.5 wheels), 335 mm (285/70R19.5 wheels) |
|
Wheelchair Ramp |
Manually operated (standard), Electrically operated (option) |
|
Number of Passenger Seats |
Max. 31 |
Frame & Drivetrain
|
Specification |
Details |
|
Motor |
Synchronous motor max 220 kW (standard), Asynchronous motor 300 kW (option) |
|
Traction Batteries |
Lithium-ion, operation up to 24 h |
|
Battery Capacity |
Up to 350 kWh (High Energy batteries) |
|
Charging System |
Plug-in (standard), Pantograph (option) |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
ZF independent suspension |
|
Drive Axle |
DANA rigid axle |
|
Steering System |
RB Servocom |
|
Braking System |
EBS, ABS, ASR (standard), ESC (option) |
|
Suspension Levelling System |
ECAS air suspension with leveling and kneeling function |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size |
265/70R19.5, 285/70R19.5 |
Components & Features
|
Specification |
Details |
|
Central Lubrication |
Central lubrication point, solid lubricating grease (standard); Central lubrication system with self-diagnostic, semi-fluid lubrication grease (option) |
|
Air-Conditioning (Driver’s Cabin) |
Powered by passenger compartment unit (option) |
|
Air-Conditioning (Passenger Compartment) |
Electrical drive (option), CO2 heat pump (option) |
|
Ventilation System |
Dual-function fans (option) |
|
Electrical Installation |
CAN-Bus system |
