Specification

Details

Model

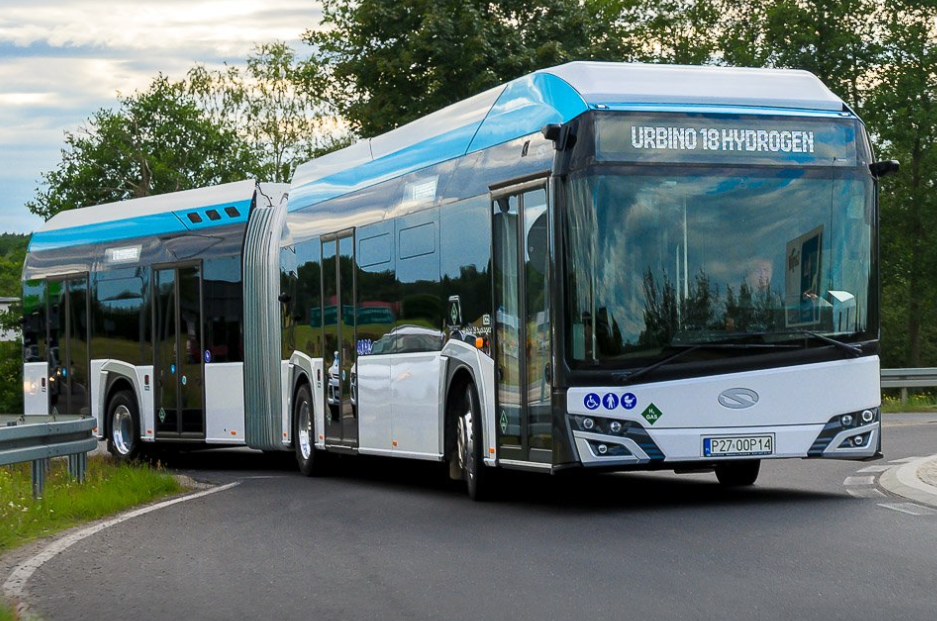

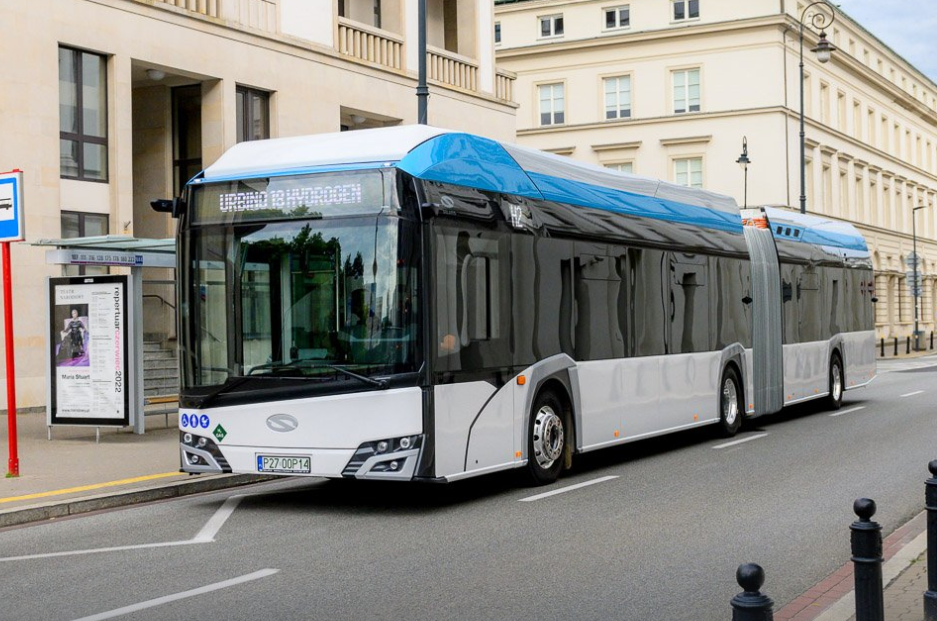

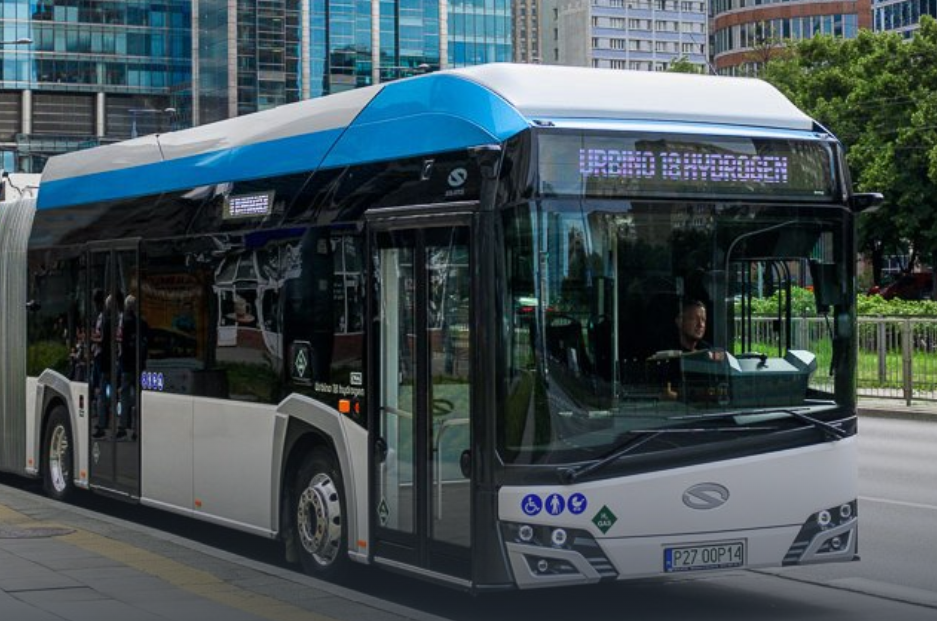

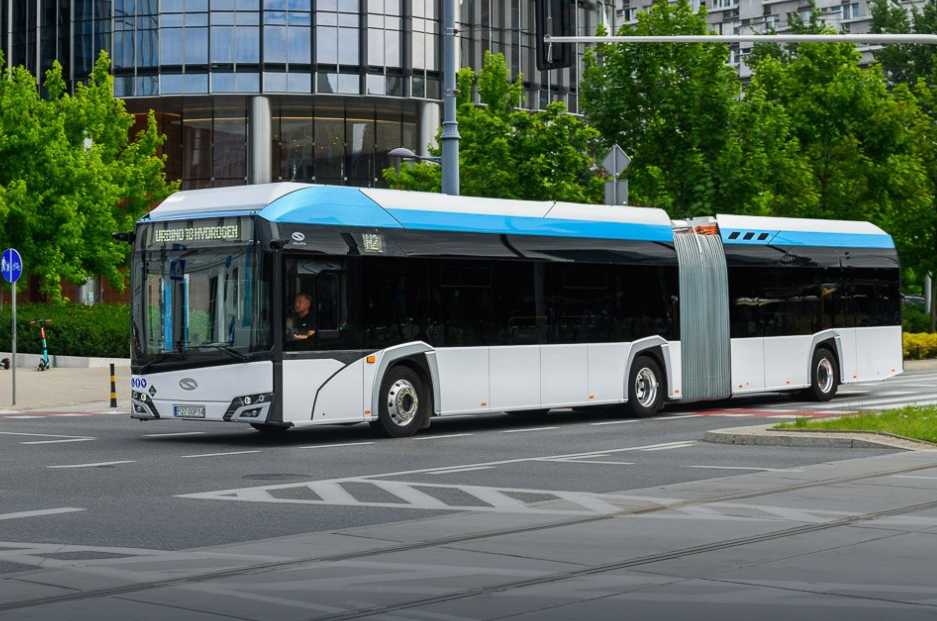

Urbino 18 Hydrogen

Overall Length

18,000 mm

Overall Width

2,550 mm

Overall Height

3,400 mm

Passenger Capacity

Up to 58 seats (52 + 6, depending on door arrangement and batteries), total up to 145

Certified Range

Up to 350 km

Fuel Type

Hydrogen

Application

Articulated City Bus

Specification

Details

Front Axle

ZF independent suspension

Drive Axle

ZF portal axle (standard) or ZF portal axle with integrated electric motors (option)

Central Axle

ZF neutral axle

Electric Motor

TSA TMF35-44-4 traction motor, 240 kW (standard) or ZF AVE130 electric portal axle, 2x125 kW (option)

Specification

Details

Suspension

ECAS air suspension with leveling and kneeling function

Brakes

EBS (Electronic Braking System), ABS (Anti-Lock Braking System), ASR (Acceleration Slip Regulation)

Steering

RB Servocom

Specification

Details

Tyres

275/70 R22.5

Feature

Details

Hydrogen Fuel Cell

100 kW

Battery

Lithium-ion, 29.2 kWh, Solaris High Power

Hydrogen Tanks

5x312 L and 3x190 L composite tanks, 2,130 L total, 51 kg hydrogen capacity, roof-mounted above first axle

Hydrogen Refilling Port

Above 1st right wheel arch (standard), above both sides or 1st left wheel arch (option)

Charging System

Plug-in, CCS2 socket near right front wheel

Body Structure

Stainless steel, removable side panels

Door Arrangement

1-2-2-0, 2-2-2-0, 1-2-2-2, 2-2-2-2, entrance height 320 mm

Wheelchair Ramp

Manually or electrically operated at 2nd entrance

Climate Control

Driver’s cabin: air-conditioning powered by passenger compartment unit; Passenger compartment: air-conditioning with CO2 heat pump (standard) or electric drive (option)

Electrical Installation

CAN-Bus system, central lubrication point with solid lubricating grease or central lubrication system with self-diagnostic semi-fluid lubricating grease
