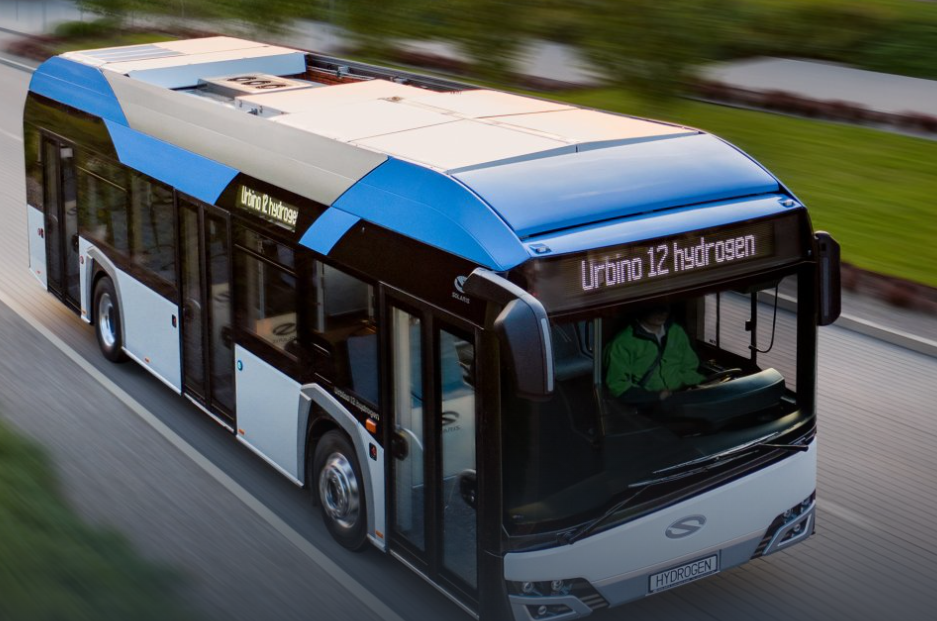

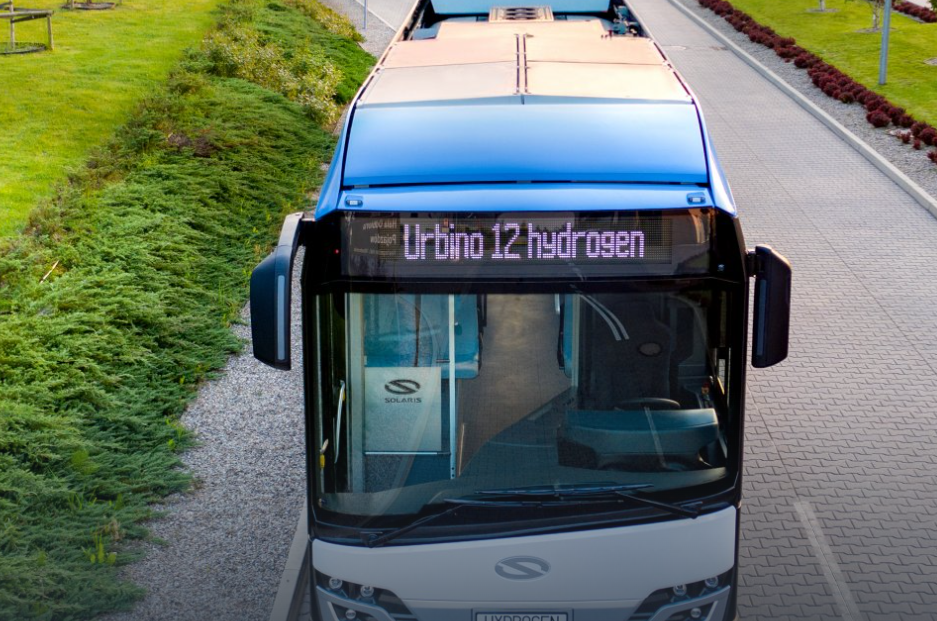

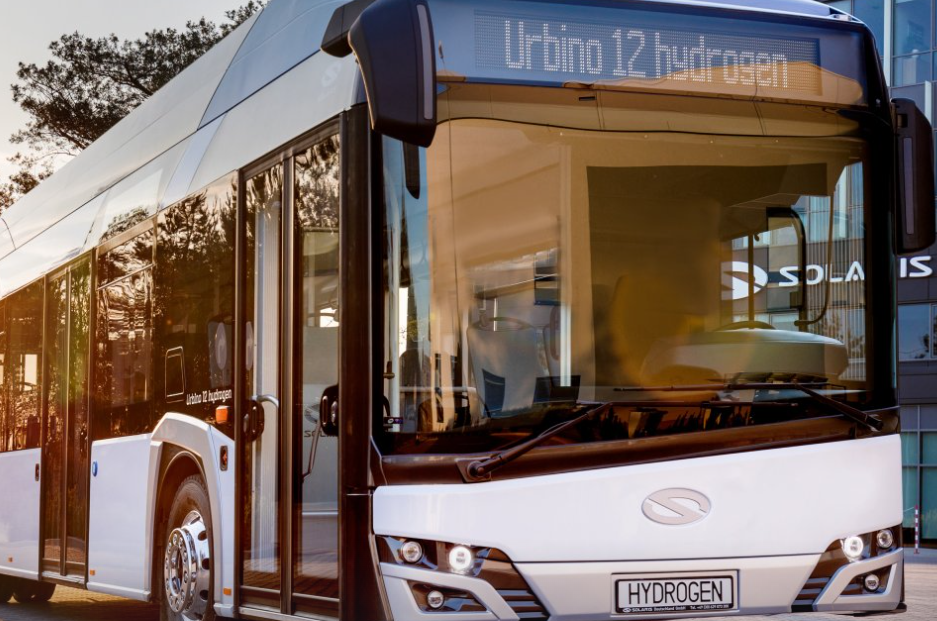

Solaris Urbino 12 Hydrogen City Bus
Specifications
|
Specification |
Details |
|
Model |
Urbino 12 Hydrogen |
|
Overall Length |
12,000 mm |
|
Overall Width |
2,550 mm |
|
Overall Height |
3,100 mm |
|
Passenger Capacity |
Up to 41 seats (37 + 4, depending on door arrangement and batteries) |
|
Certified Range |
Up to 350 km |
|
Fuel Type |
Hydrogen |
|
Application |
City Bus |
Frame & Drivetrain
|
Specification |
Details |
|
Front Axle |
ZF independent suspension |
|
Drive Axle |
ZF portal axle with integrated electric motors (standard) or ZF portal axle (option) |
|
Electric Motor |
ZF AVE130 electric portal axle, 2x125 kW (standard) or asynchronous motor 220 kW (option) |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
ECAS air suspension with leveling and kneeling function |
|
Brakes |
EBS (Electronic Braking System), ABS (Anti-Lock Braking System), ASR (Acceleration Slip Regulation), optional ESC (Electronic Stability Control) |
|

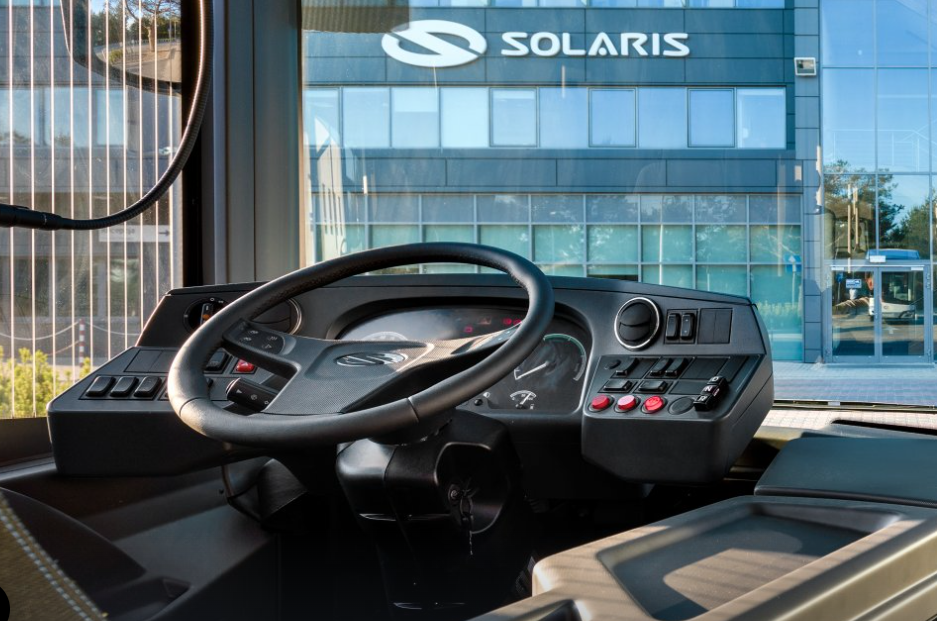

Steering |
RB Servocom |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
275/70 R22.5 |
Components & Features
|
Feature |
Details |
|
Hydrogen Fuel Cell |
70 kW |
|
Battery |
Lithium-ion, 29.2 kWh, Solaris High Power |
|
Hydrogen Tanks |
5x312 L composite tanks, 1,560 L total, 37.5 kg hydrogen capacity, roof-mounted above first axle |
|
Charging System |
Plug-in, CCS2 socket near right front wheel |
|
Body Structure |
Stainless steel, removable side panels |
|
Door Arrangement |
1-2-0, 2-2-0, 1-2-2, 2-2-2, entrance height 320 mm |
|
Wheelchair Ramp |
Manually or electrically operated at 2nd entrance |
|
Climate Control |
Driver’s cabin: air-conditioning powered by passenger compartment unit; Passenger compartment: air-conditioning with CO2 heat pump (standard) or electric drive (option) |
|
Electrical Installation |
CAN-Bus system, central lubrication point with solid lubricating grease (standard) or central lubrication system with self-diagnostic semi-fluid lubricating grease (option) |
