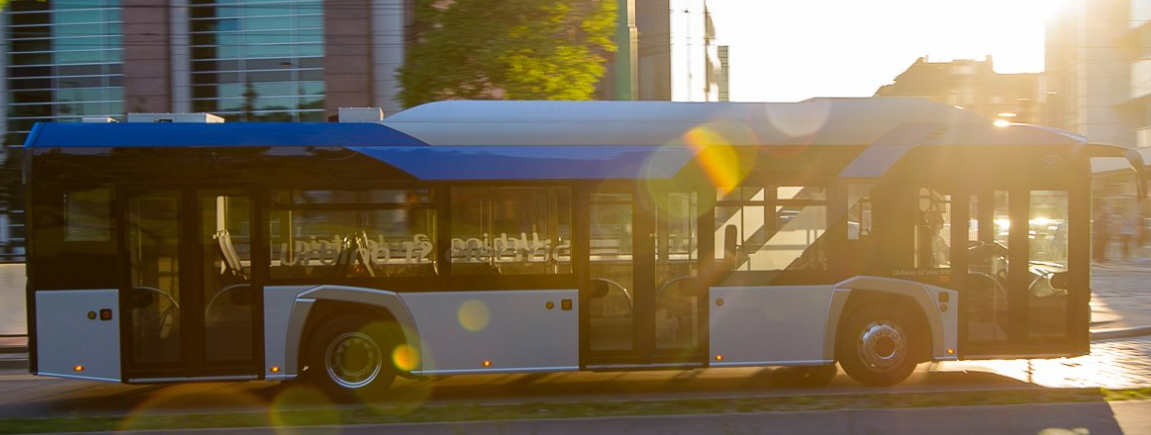

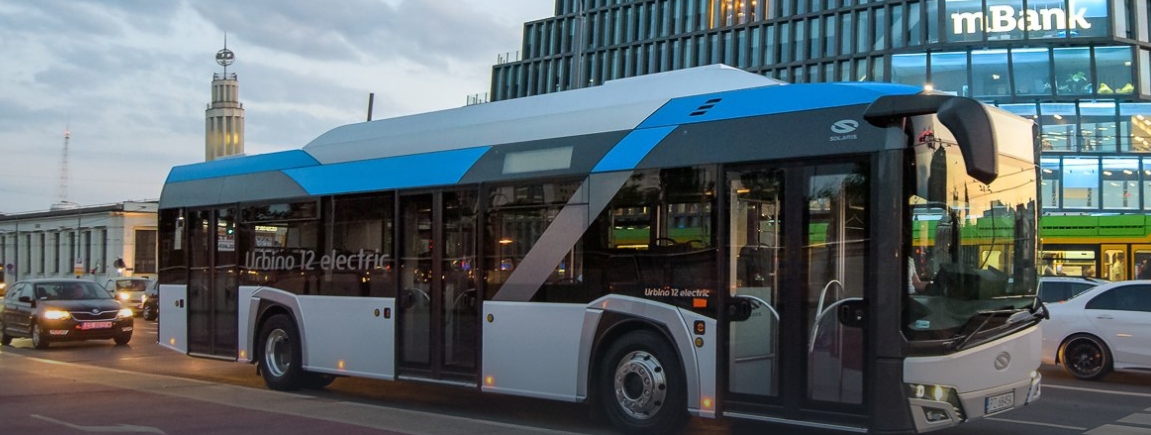

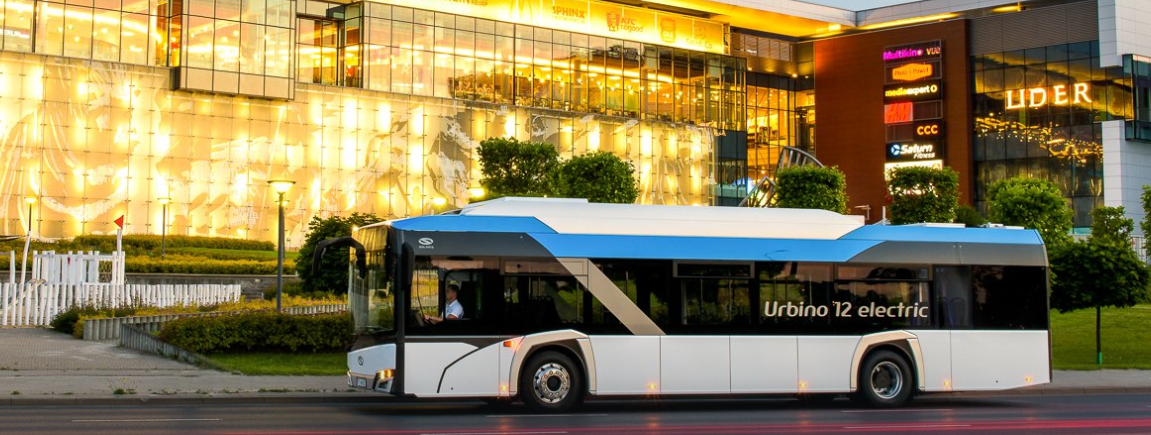

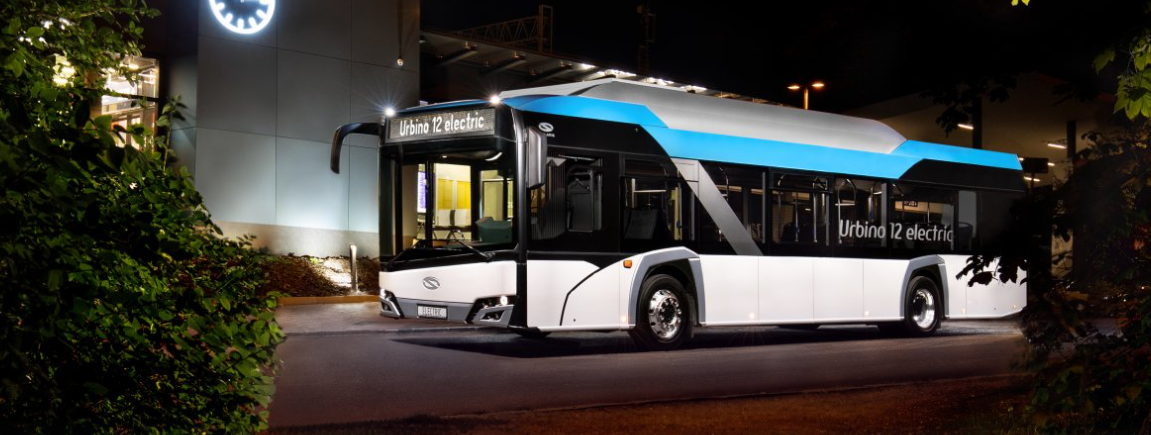

Solaris Urbino 12 Electric – Electric City Bus by Solaris Bus & Coach
Specifications
|
Specification |
Details |
|
Bus Model |
Urbino 12 Electric |
|
Vehicle Category |
Low-Floor Bus |
|
L x W x H |
12000 x 2550 x 3395 mm |
|
Wheelbase |
5900 mm |
|
GVW |
19000 kg |
|
Fuel Type |
Electric |
|
Application |
Electric City Bus |
|
Door Arrangement |
1-2-0, 2-2-0, 1-2-2, 2-2-2 |
|
Entrance Height |
320 mm (275/70R22.5 wheels) |
|
Wheelchair Ramp |
Manually operated (standard), Electrically operated (option) |
|
Number of Passenger Seats |
Max. 39 + 4 |
Frame & Drivetrain
|
Specification |
Details |
|
Motor |
Asynchronous motor 200 kW (standard), Electric portal axle ZF AVE130 2x125 kW (option) |
|
Traction Batteries |
Lithium-ion, operation up to 24 h |
|
Battery Capacity |
Up to 600 kWh (High Energy batteries) |
|
Charging System |
Plug-in (standard), Pantograph (option) |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
ZF independent suspension (standard), ZF rigid axle (option) |
|
Drive Axle |
ZF portal axle with integrated electric motors (standard), ZF portal axle (option) |
|
Steering System |
RB Servocom |
|
Braking System |
EBS, ABS, ASR (standard), ESC (option) |
|
Suspension Levelling System |
ECAS air suspension with leveling and kneeling function |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size |
275/70R22.5 |
Components & Features
|
Specification |
Details |
|
Central Lubrication |
Central lubrication point, solid lubricating grease (standard); Central lubrication system with self-diagnostic, semi-fluid lubrication grease (option) |
|
Air-Conditioning (Driver’s Cabin) |
Electric drive (option), Powered by passenger compartment unit (option) |
|
Air-Conditioning (Passenger Compartment) |
Electrical drive (option), CO2 heat pump (option) |
|
Ventilation System |
Dual-function fans |
|
Electrical Installation |
CAN-Bus system |
