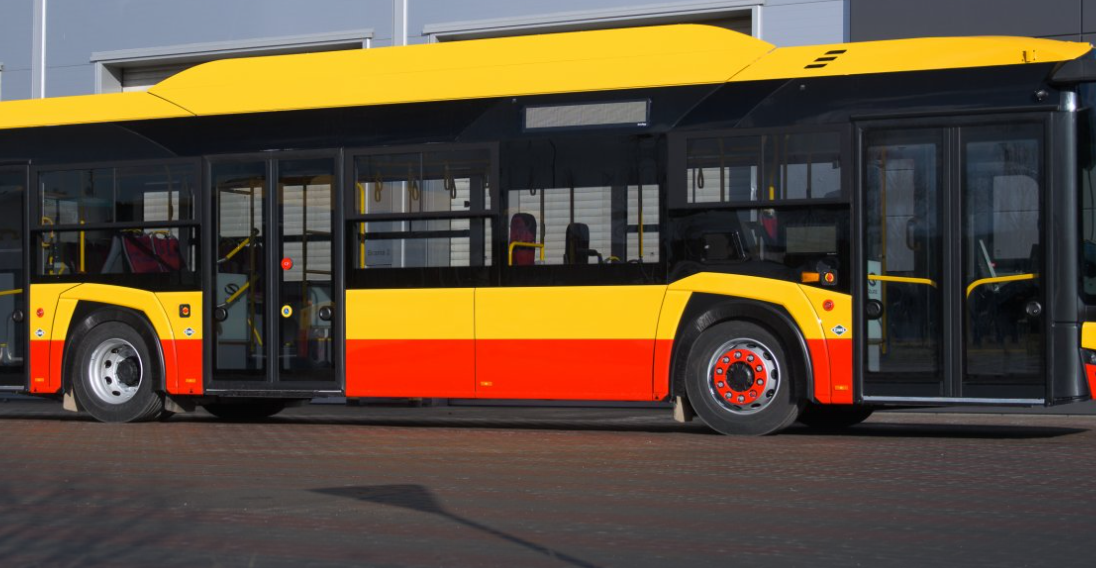

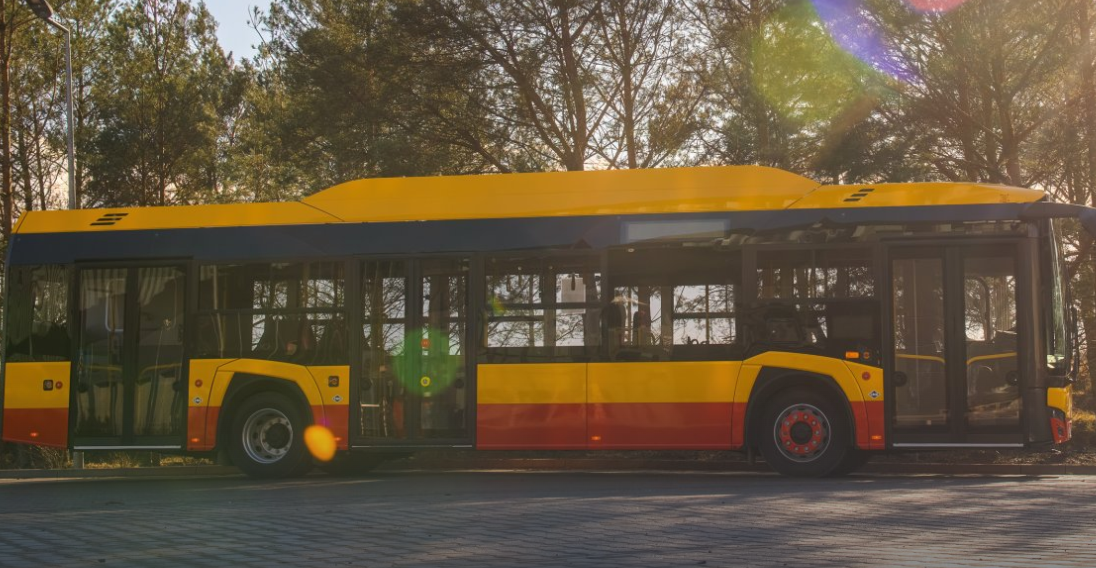

Solaris Urbino 12 CNG – CNG City Bus by Solaris Bus & Coach
Specifications
|
Specification |
Details |
|
Bus Model |
Urbino 12 CNG |
|
Vehicle Category |
Low-Floor Bus |
|
L x W x H |
12000 x 2550 x 3250 mm |
|
Wheelbase |
5900 mm |
|
GVW |
19000 kg |
|
Fuel Type |
CNG |
|
Application |
CNG City Bus |
|
Door Arrangement |
1-2-0, 2-2-0, 1-2-2, 2-2-2 |
|
Entrance Height |
320 mm (275/70R22.5 tyres) |
|
Wheelchair Ramp |
Manually operated (standard), Electrically operated (option) |
|
Number of Passenger Seats |
Max. 37 + 3 |
|
Total Passenger Capacity |
100 (41 seated) |
|
Max Speed |
75 kmph |
|
Range |
Up to 500 km |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Cummins L9NE6E320 (235 kW) |
|
Transmission |
Voith Diwa 6 (standard), ZF Ecolife (option), Voith Diwa NXT + CRU (mild hybrid, option) |
|
Gas Tanks |
Composite gas cylinder 4 x 315 l (standard), 5 x 315 l (option), 5 x 340 l (option) |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
ZF independent axle (standard), ZF rigid axle (option) |
|
Drive Axle |
ZF portal axle |
|
Steering System |
RB Servocom |
|
Braking System |
EBS, ABS, ASR (standard), ESC (option) |
|
Auxiliary Brake |
Transmission-integrated retarder |
|
Suspension Levelling System |
ECAS air suspension with leveling and kneeling function |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size |
275/70R22.5 |
Components & Features
|
Specification |
Details |
|
Central Lubrication |
Central lubrication point, solid lubricating grease (standard); Central lubrication system with self-diagnostic, semi-fluid lubricating grease (option) |
|
Air-Conditioning (Driver’s Cabin) |
Electrical drive (option), Powered by passenger compartment unit (option) |
|
Air-Conditioning (Passenger Compartment) |
Mechanical drive (option) |
|
Ventilation System |
Dual-function fans |
|
Passenger Compartment Heating System |
Convector-type heaters, 2-stage blowers |
|
Electrical Installation |
CAN-Bus system |
